Drive/Propeller Shaft: Locations

Driveline Disassembled Views

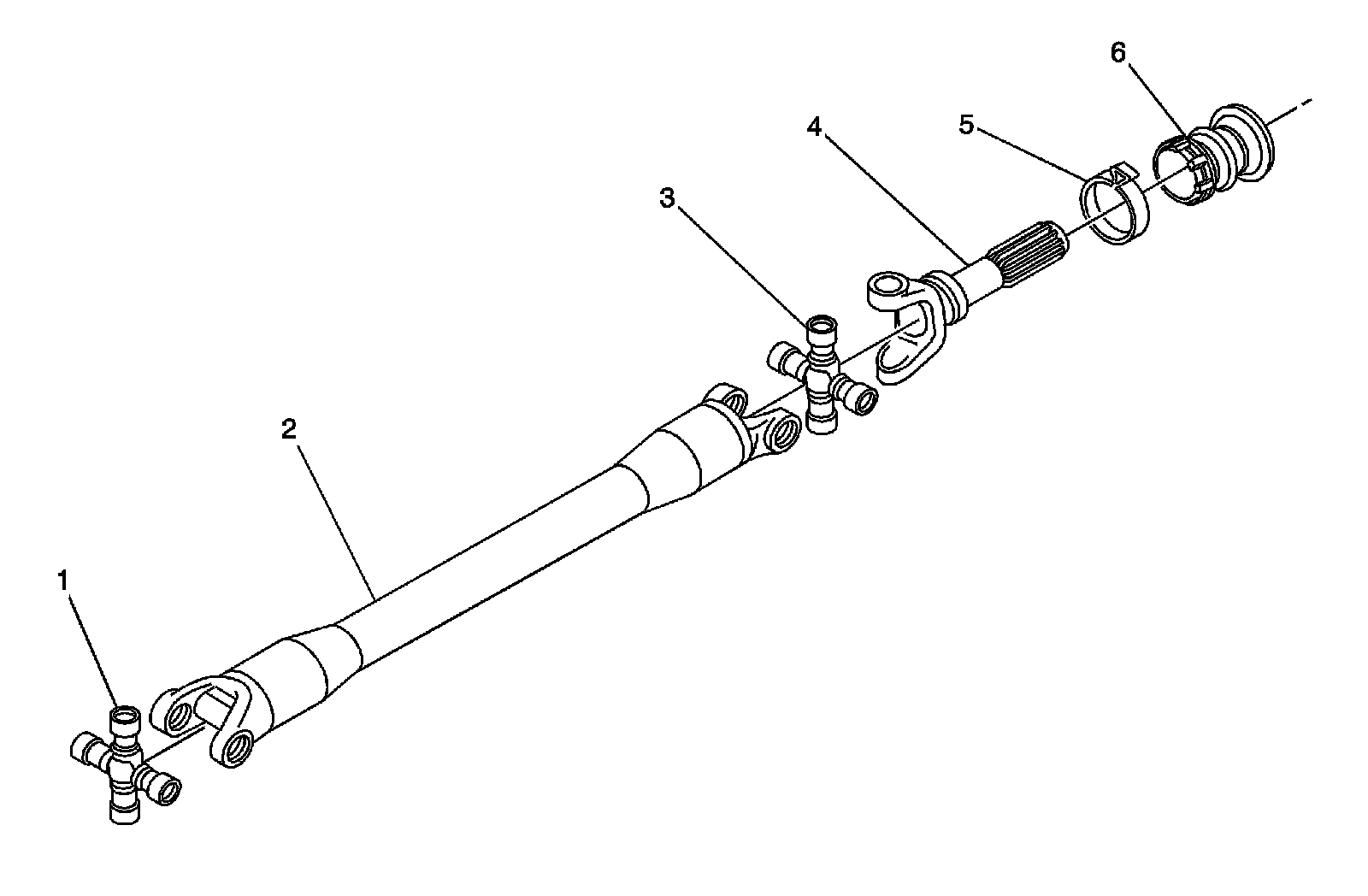

Front Propeller Shaft





1 - Propeller Shaft Universal Joint

2 - Propeller Shaft Tube

3 - Propeller Shaft Universal Joint

4 - Propeller Shaft Slip Yoke

5 - Propeller Shaft Rear Slip Yoke Boot Clamp- Front

6 - Propeller Shaft Rear Slip Yoke Boot

One-Piece Propeller Shaft





1 - Propeller Shaft Slip Yoke

2 - Propeller Shaft Universal Joint Spider Bearing Retainer Ring

3 - Propeller Shaft Universal Joint

4 - Propeller Shaft Tube

5 - Propeller Shaft Universal Joint Spider Bearing Retainer Ring

6 - Propeller Shaft Universal Joint

7 - Propeller Shaft Bearing Retainer

8 - Propeller Shaft Bearing Retainer Bolt

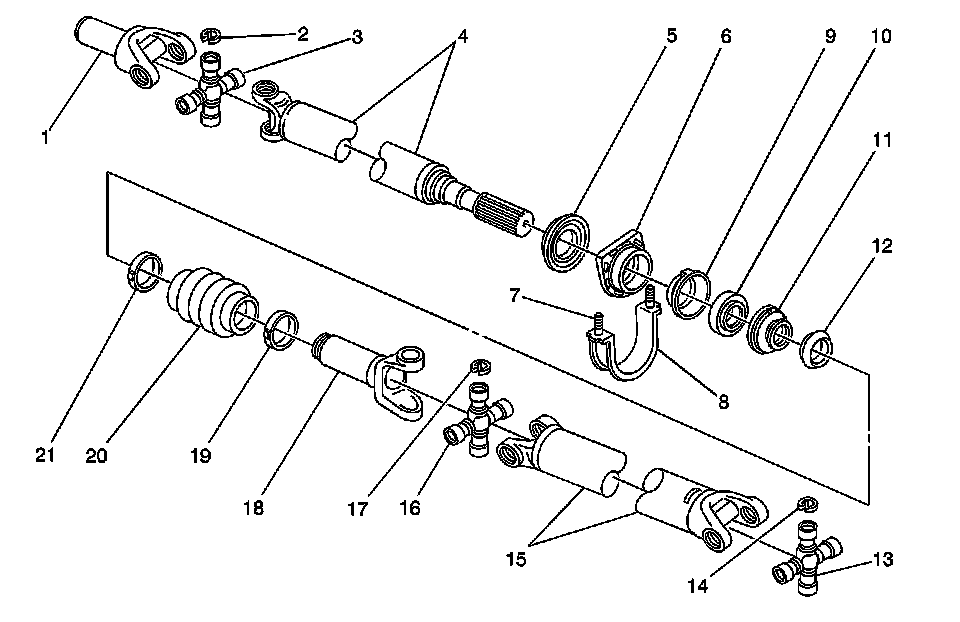

Two-Piece Propeller Shaft





1 - Propeller Shaft Slip Yoke

2 - Propeller Shaft Universal Joint Spider Bearing Retainer Ring

3 - Propeller Shaft Universal Joint

4 - Propeller Shaft Tube

5 - Propeller Shaft Bearing Shield

6 - Propeller Shaft Bearing Insulator

7 - Propeller Shaft Bearing Support Bolt

8 - Propeller Shaft Bearing Support

9 - Propeller Shaft Retainer

10 - Propeller Shaft Center Support Bearing

11 - Propeller Shaft Retainer

12 - Propeller Shaft Bearing Slinger

13 - Propeller Shaft Universal Joint

14 - Propeller Shaft Universal Joint Spider Bearing Retainer Ring

15 - Propeller Shaft Tube

16 - Propeller Shaft Universal Joint

17 - Propeller Shaft Universal Joint Spider Bearing Retainer Ring

18 - Propeller Shaft Slip Yoke

19 - Propeller Shaft Slip Yoke Boot Clamp

20 - Propeller Shaft Slip Yoke Boot

21 - Propeller Shaft Slip Yoke Boot Clamp
