Home >> Chevrolet >> 2013 >> Silverado 1500 4WD V8-5.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Valve Body >> Service and Repair >> 6L45/6L50/6L80/6L90 - Automatic Transmission

6L45/6L50/6L80/6L90 - Automatic Transmission

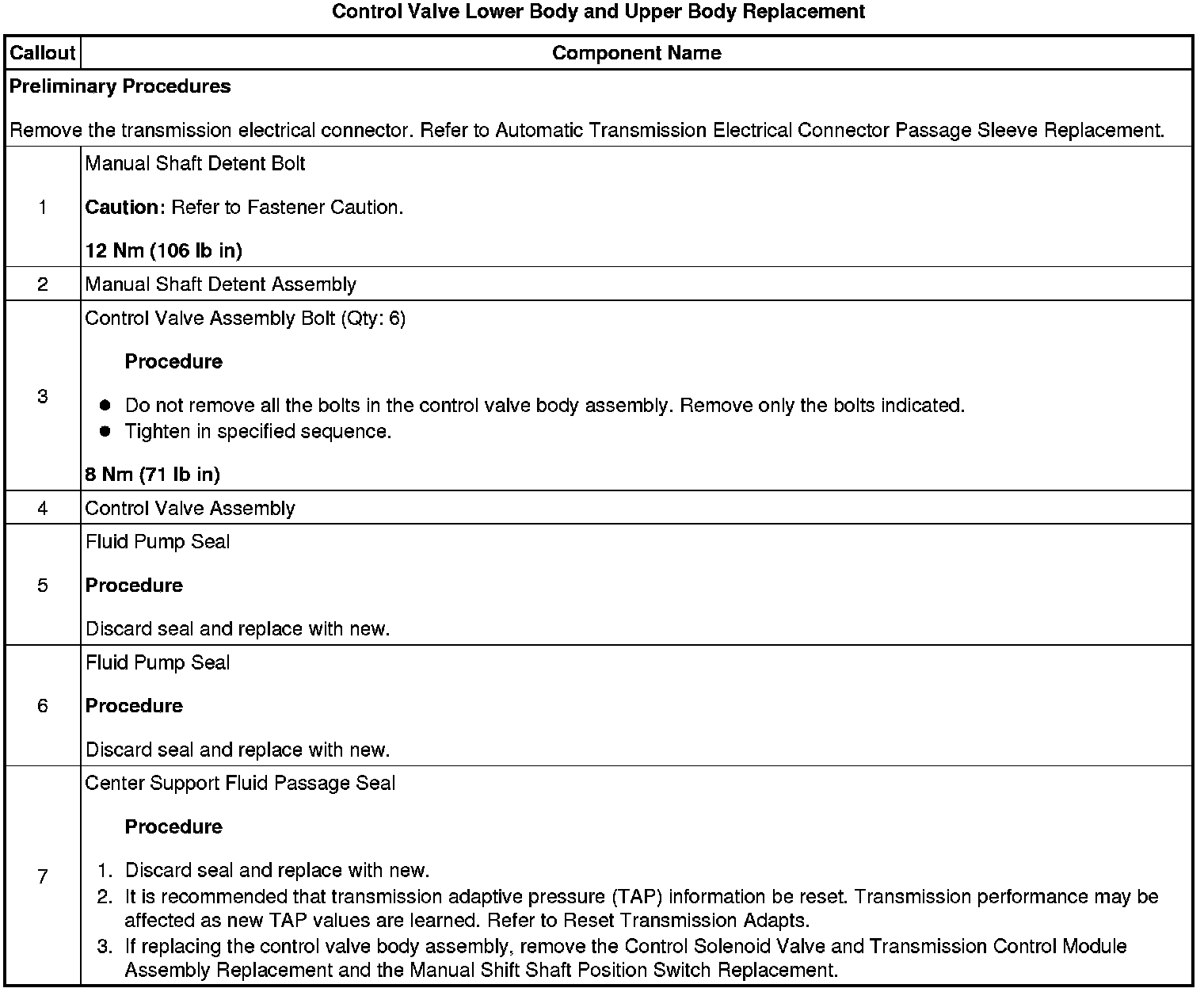

Control Valve Lower Body and Upper Body Replacement
