Harness Locations

Harness Routing Views

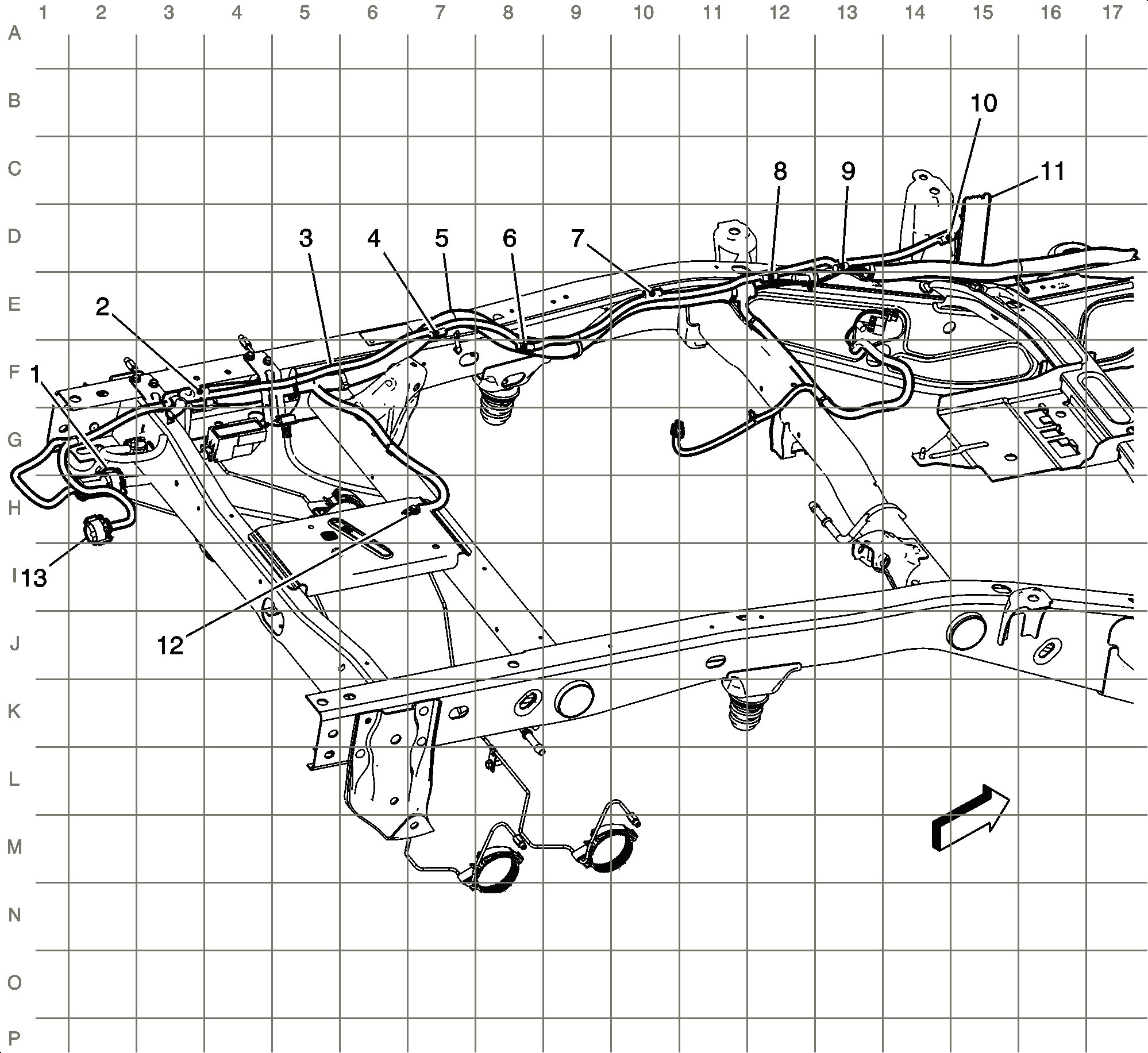

Camper Harness Routing and Rear Chassis Harness Routing





1 - X414 (8S3 or UY2)

2 - J420 (UY2)

3 - Camper/Trailer Harness

4 - J415 (UY2)

5 - Chassis Harness

6 - J416 (UY2)

7 - J417 (UY2)

8 - J414 (UY2)

9 - J421 (UY2)

10 - J410 (UY2)

11 - Blunt Cut- Camper Trailer Provision (UY2)

12 - G401 (except Diesel or L96)

13 - Trailer Connector (UY7)
