200 Amp Mega Fuse and Auxiliary Electrical Center 12VDC Junction Block Replacement

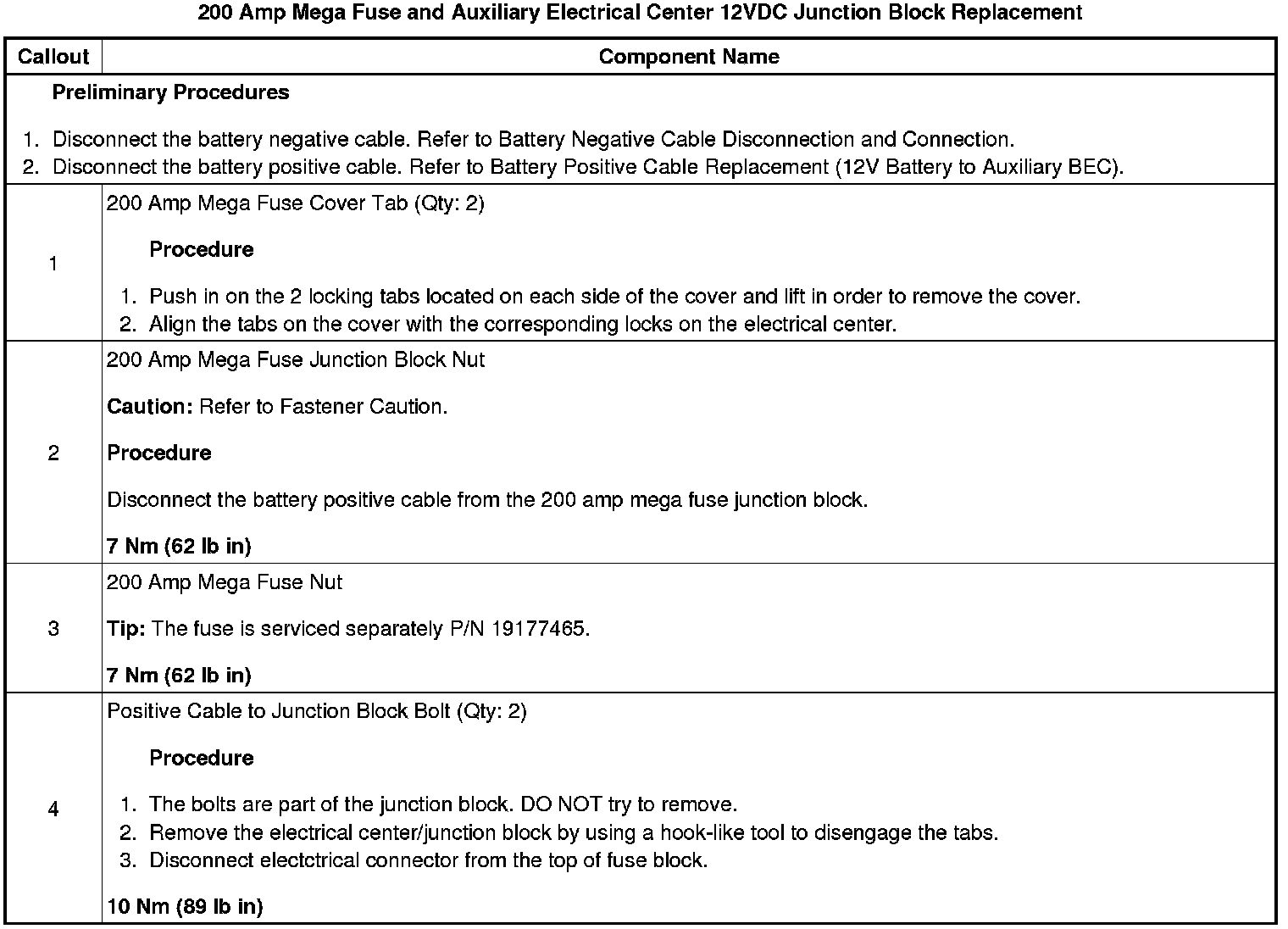

200 Amp Mega Fuse and Auxiliary Electrical Center 12VDC Junction Block Replacement

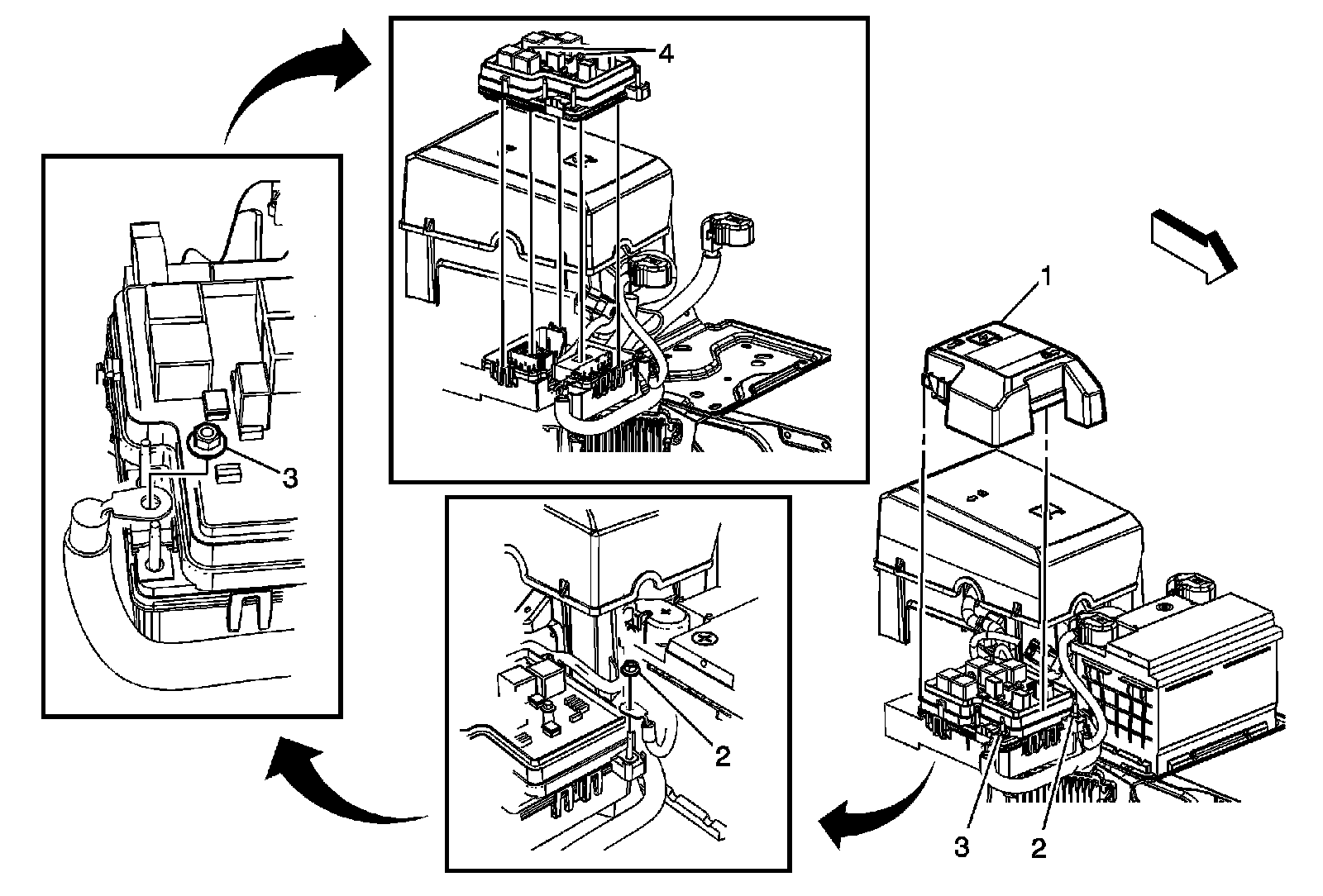

200 Amp Mega Fuse and Auxiliary Electrical Center 12VDC Junction Block Replacement
