Fuse Block - Underhood




Harness Routing Views

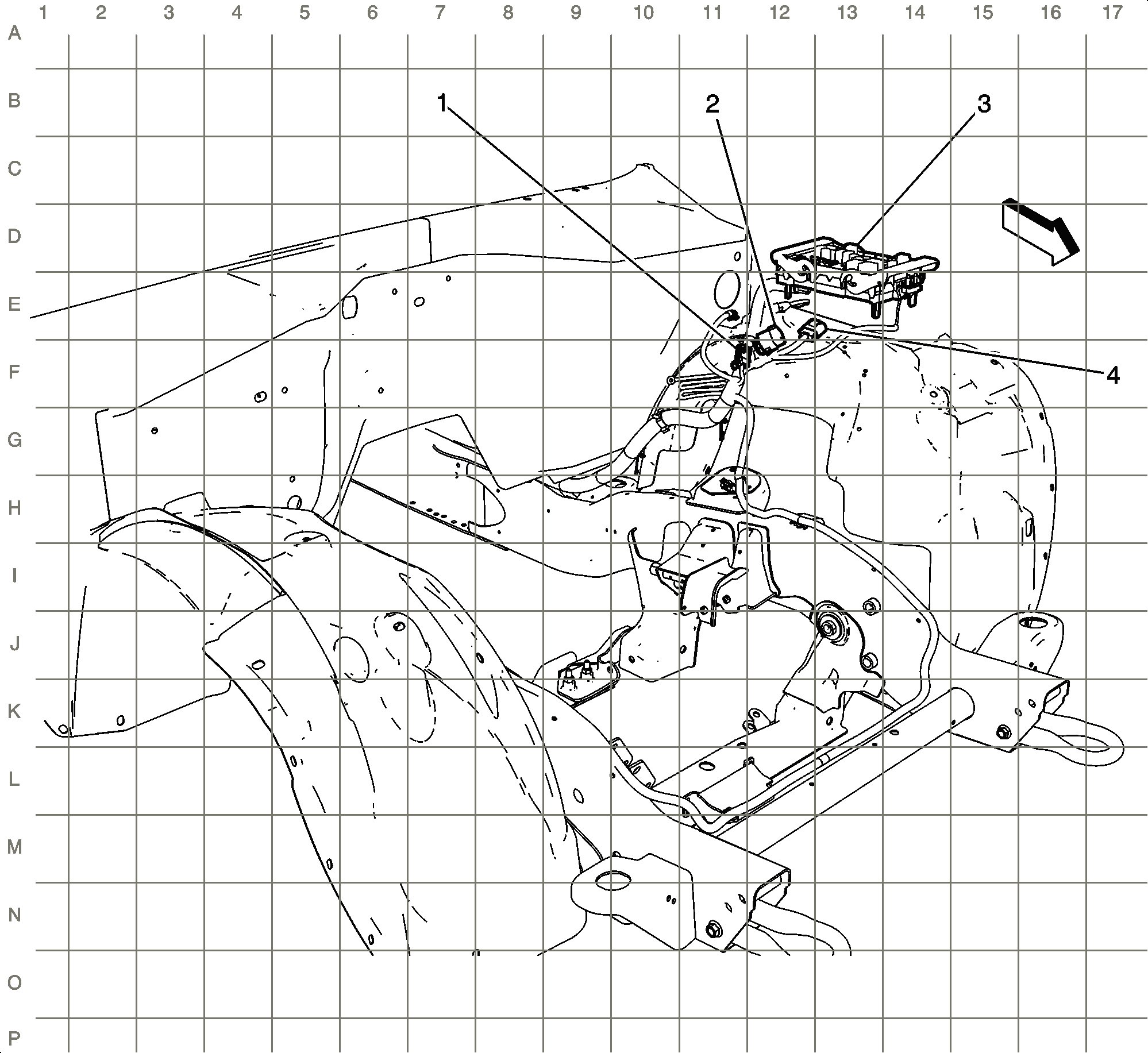

Chassis Harness- Front Engine Compartment (31 Series)





1 - X102 (JL1)

2 - Fuel Pump Relay- Secondary (LY6 without NQZ)

3 - Fuse Block- Underhood

4 - X126
