Engine Harness Routing- Right Front Side




Harness Routing Views

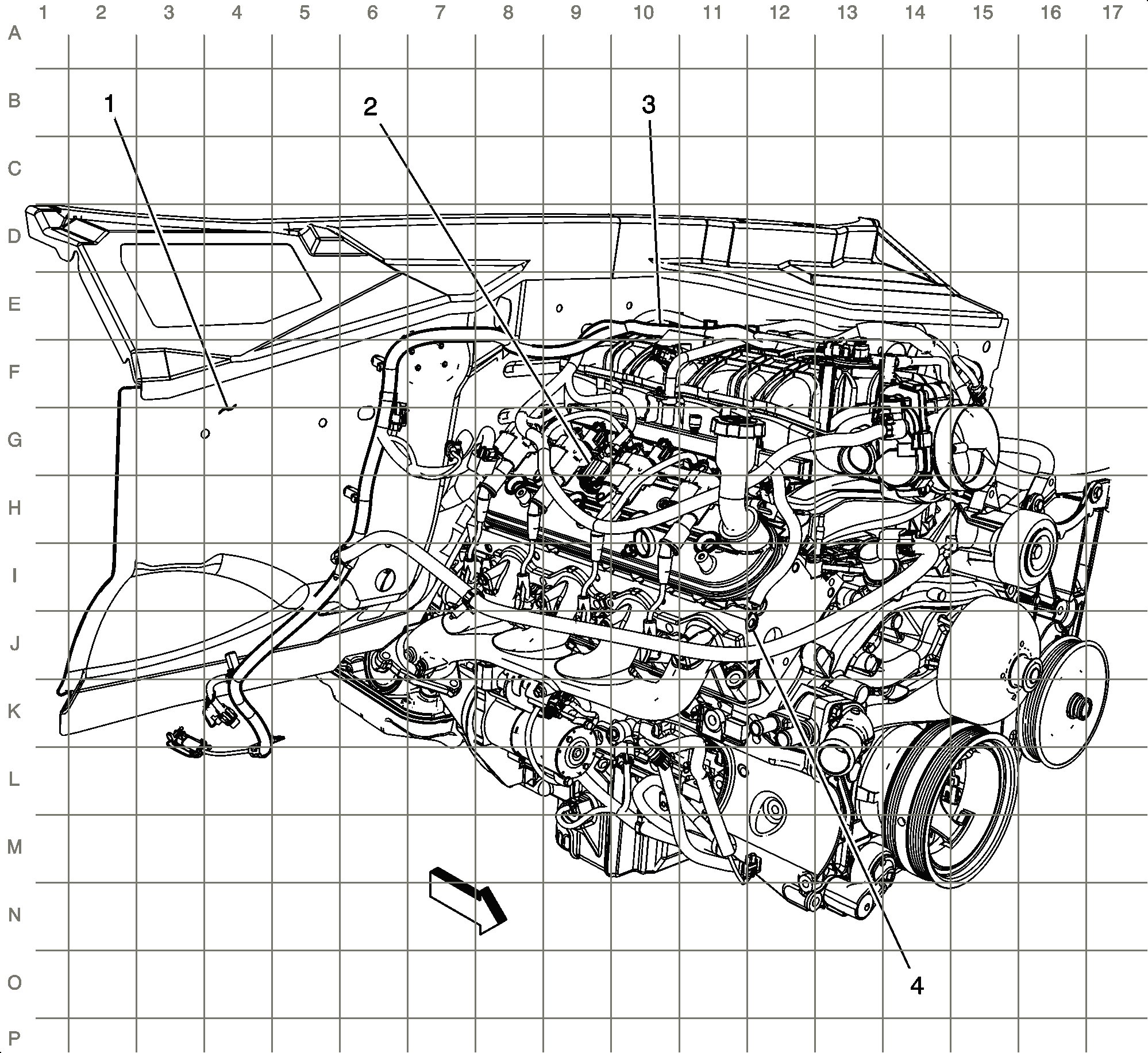

Engine Harness Routing- Right Front Side (4.8L/5.3L/6.0L/6.2L except LFA/HP2)





1 - Dash Panel

2 - X113

3 - J106

4 - G103
