Right Rear of the Engine Compartment Components

Front of Vehicle/Engine Compartment Component Views

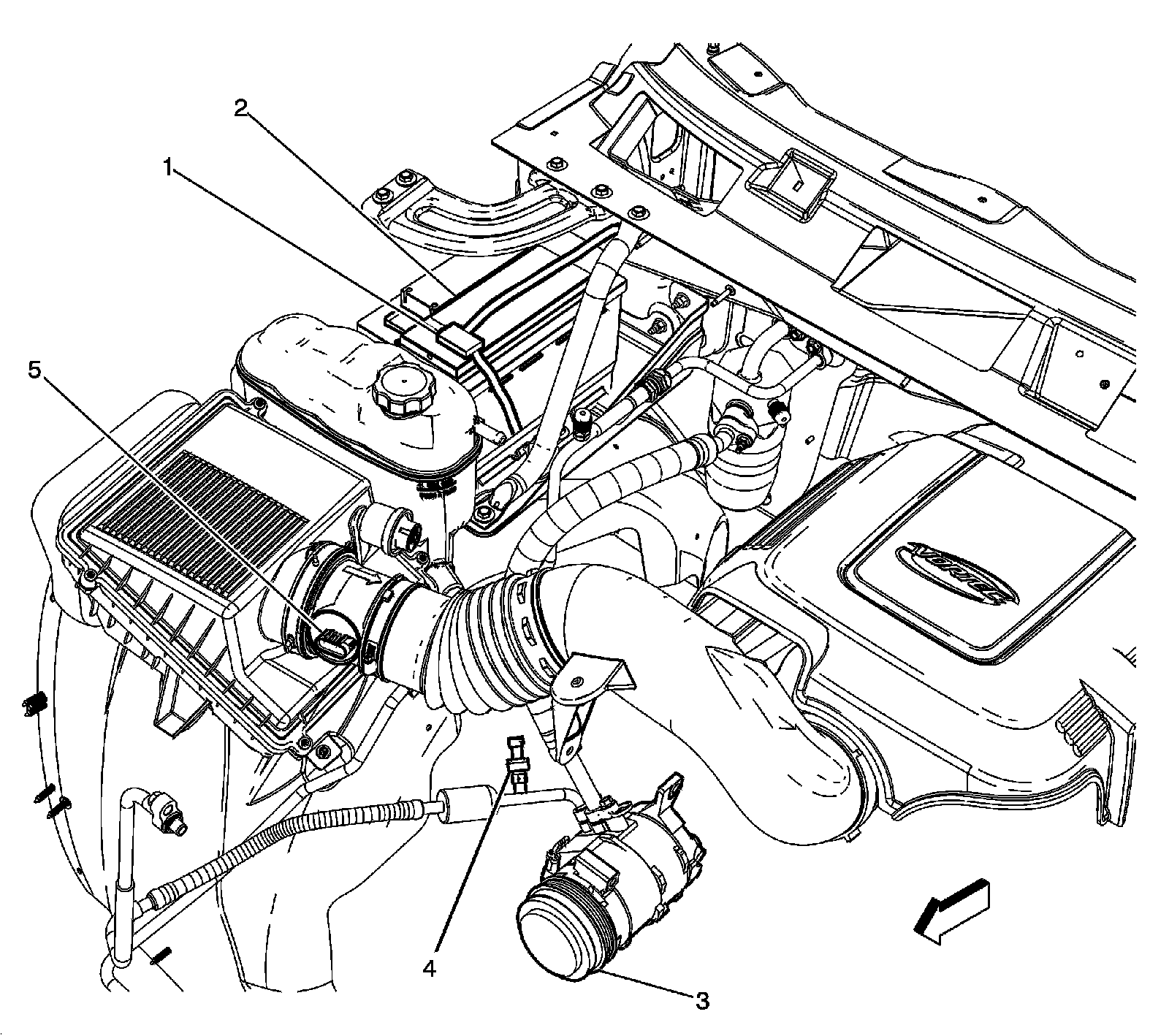

Right Rear of the Engine Compartment Components (4.8L, 5.3L, 6.0L or 6.2L except HP2)





1 - Fuse Holder

2 - Battery - Right

3 - A/C Compressor Clutch (C67 or CJ2)

4 - A/C Refrigerant Pressure Sensor (C67 or CJ2)

5 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
