Engine Coolant Air Bleed Pipe and Hole Cover Removal

Engine Coolant Air Bleed Pipe and Hole Cover Removal

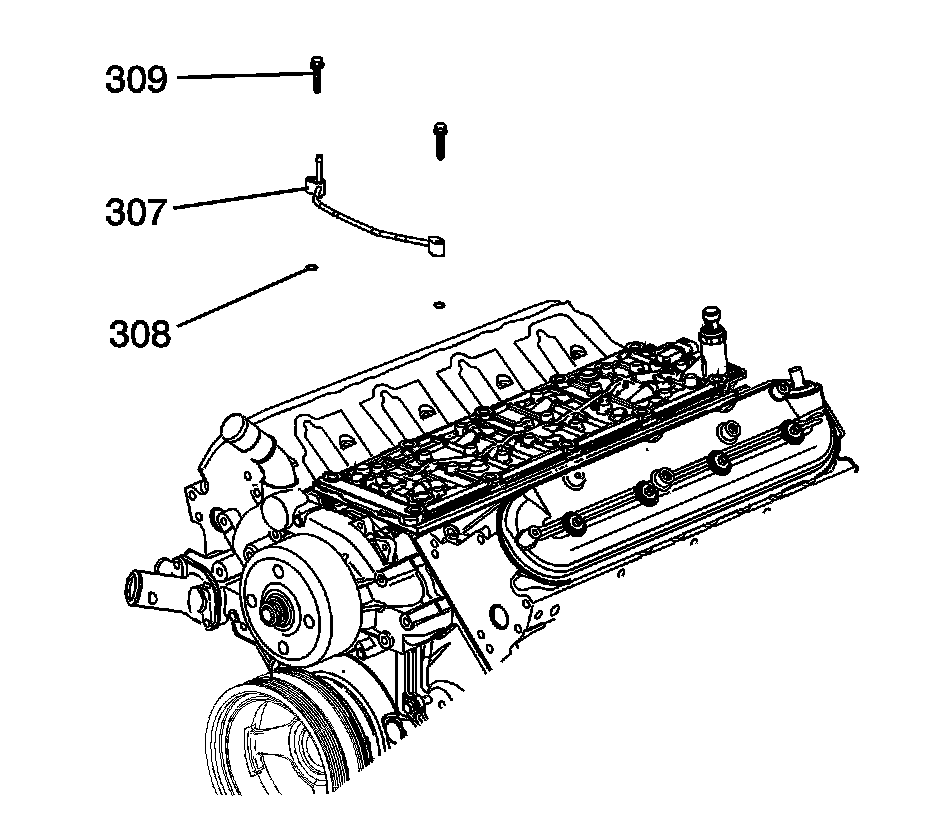

1. Remove the engine coolant air bleed pipe bolts (309).

2. Remove the pipe (307) with seals (308).





3. Remove the seals (308) from the pipe.

4. Discard the seals.
