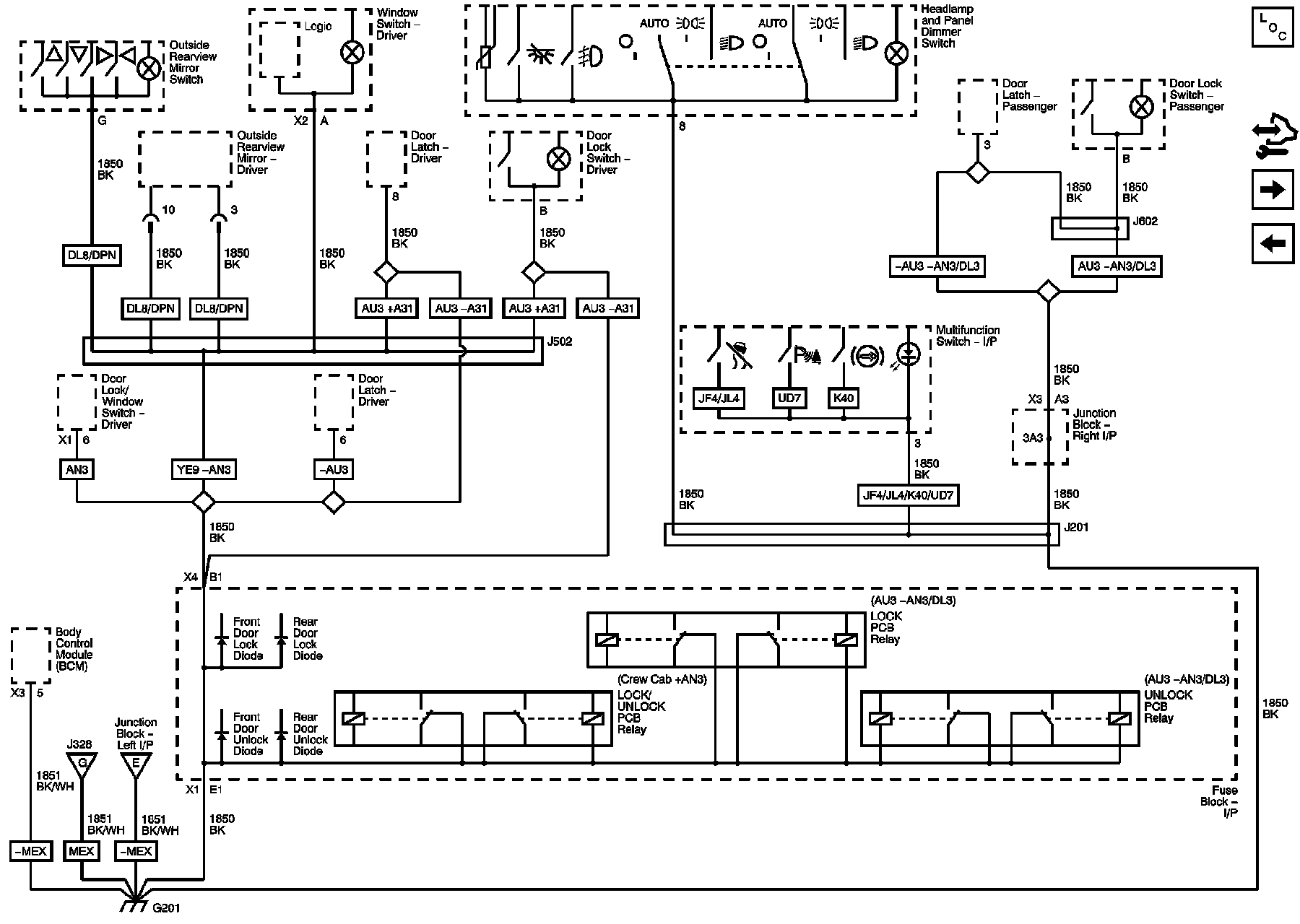

Home >> Chevrolet >> 2013 >> Silverado 1500 4WD V8-5.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G201 >> G201 (1 of 3)
