Greater Than/Equal to 3900 KG (8600 Lb) GVW




Antilock Brake System Schematics

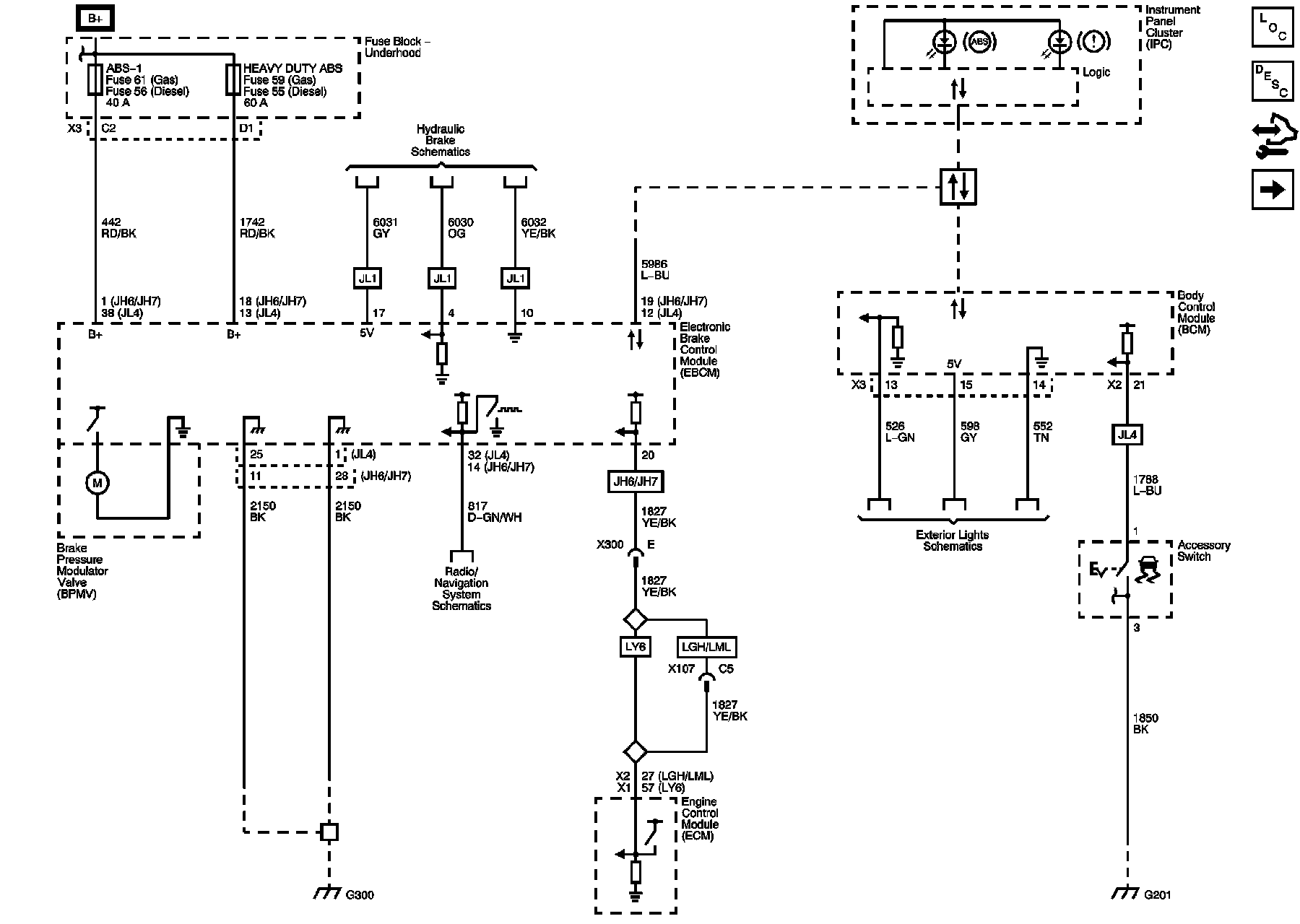

Power, Ground, Serial Data, and Traction Controls






Wheel Speed Signals






Vehicle Stability (JL4)
