Body Harness to Right Rear Door Harness (Crew Cab)
Body Harness to Right Rear Door Harness (Crew Cab)

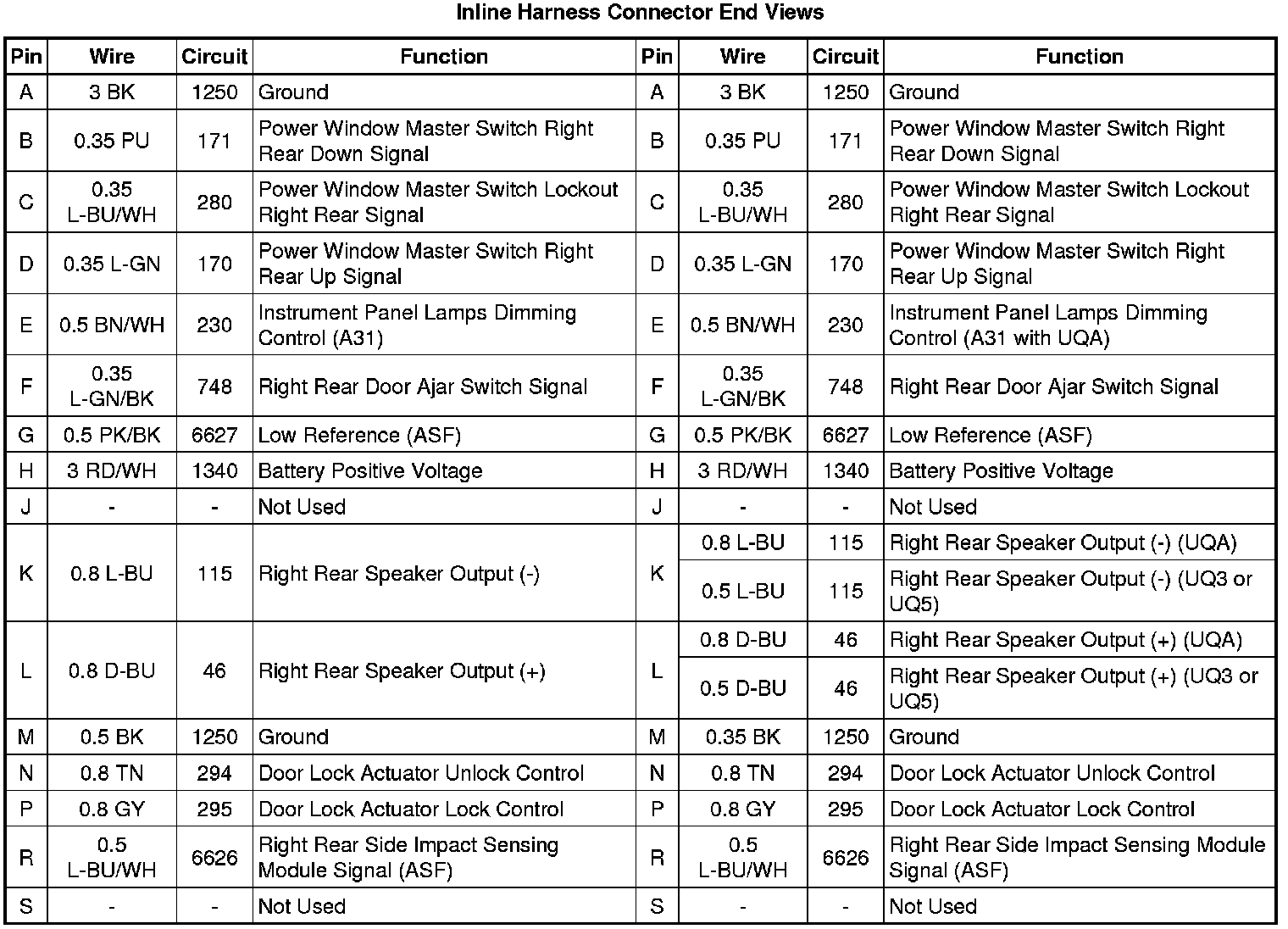

Inline Harness Connector End Views

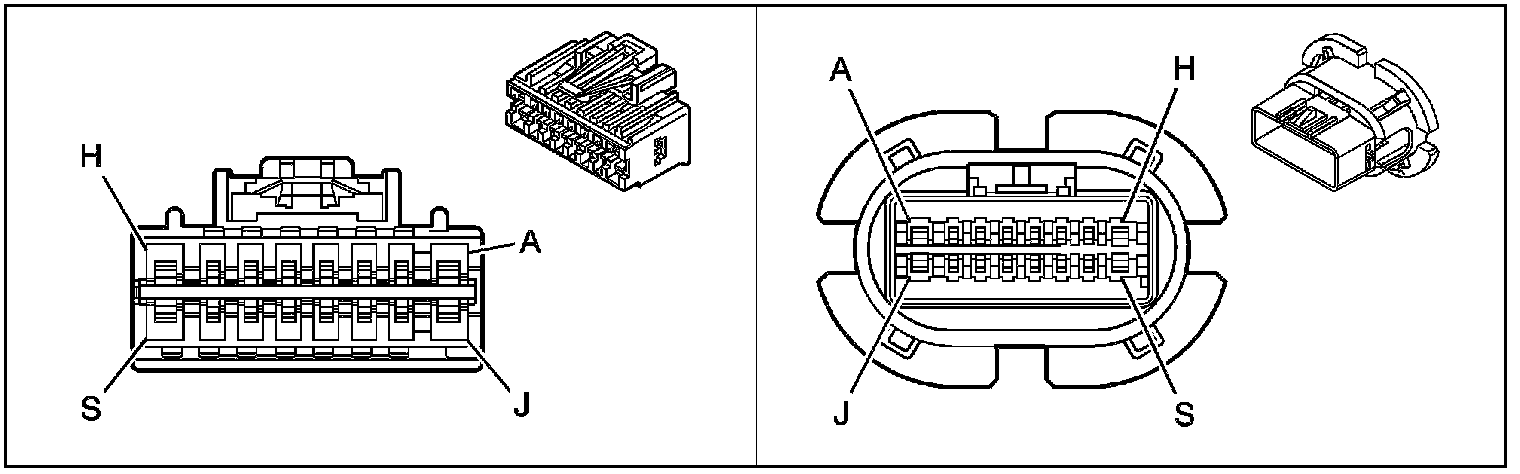

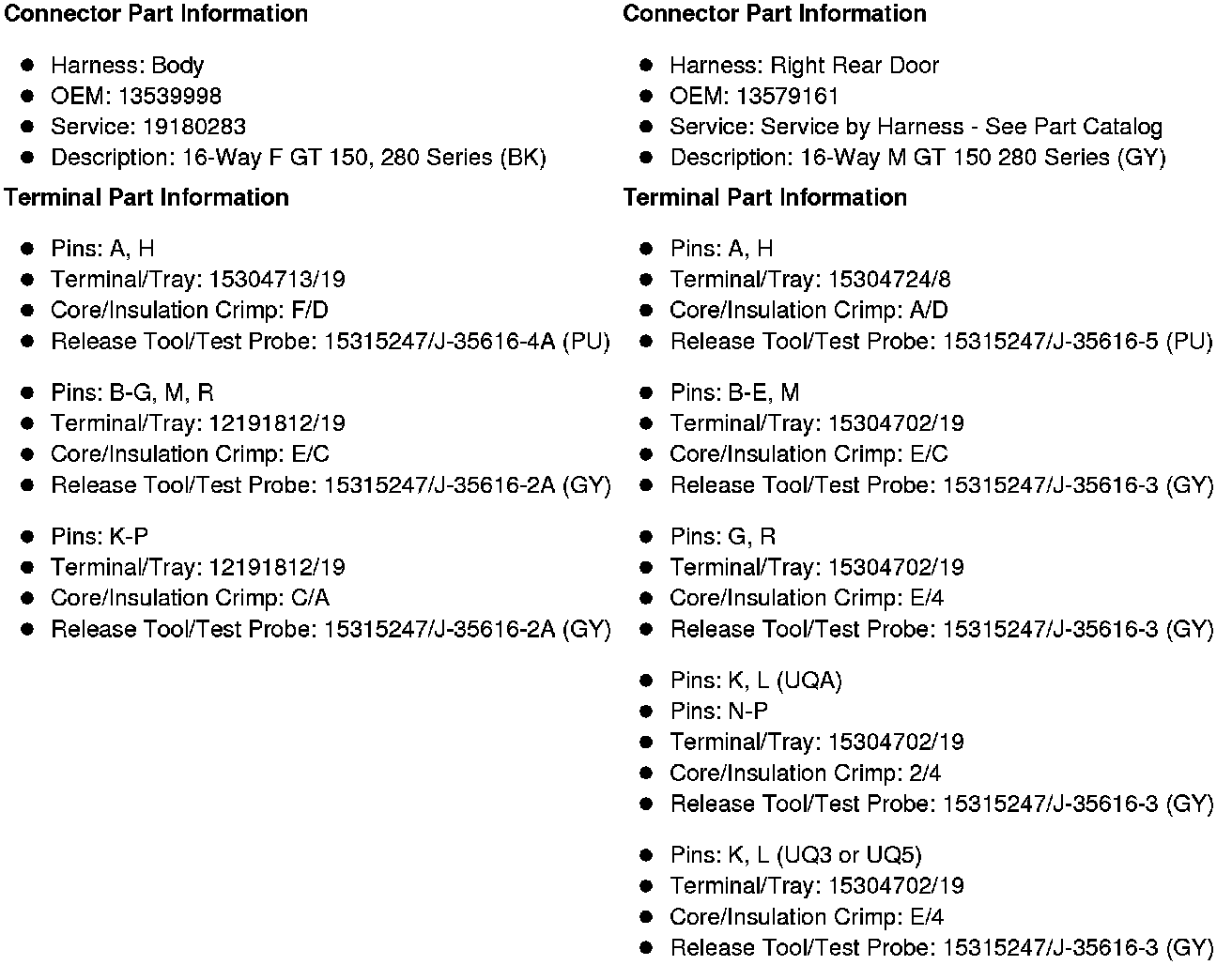

X800 Body Harness to Right Rear Door Harness (Crew Cab)
