X278




Inline Harness Connector End Views

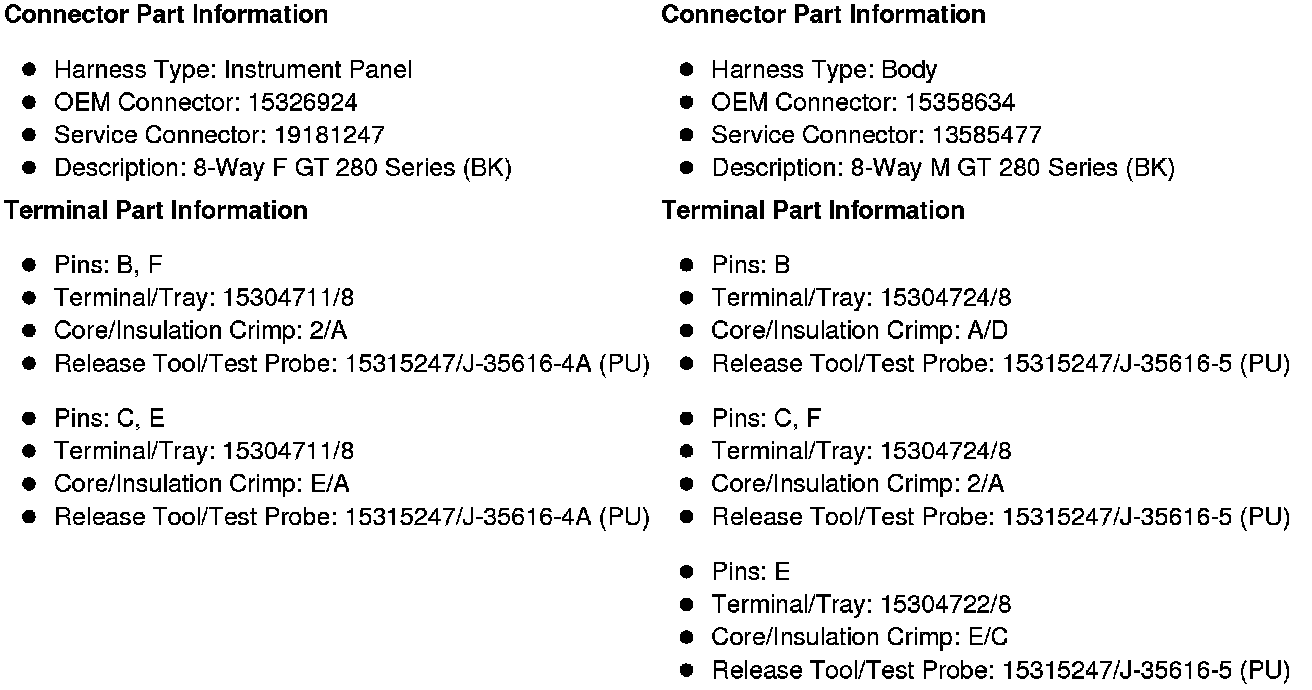

X278 Instrument Panel Harness to Body Harness (MEX or A52)
