X204

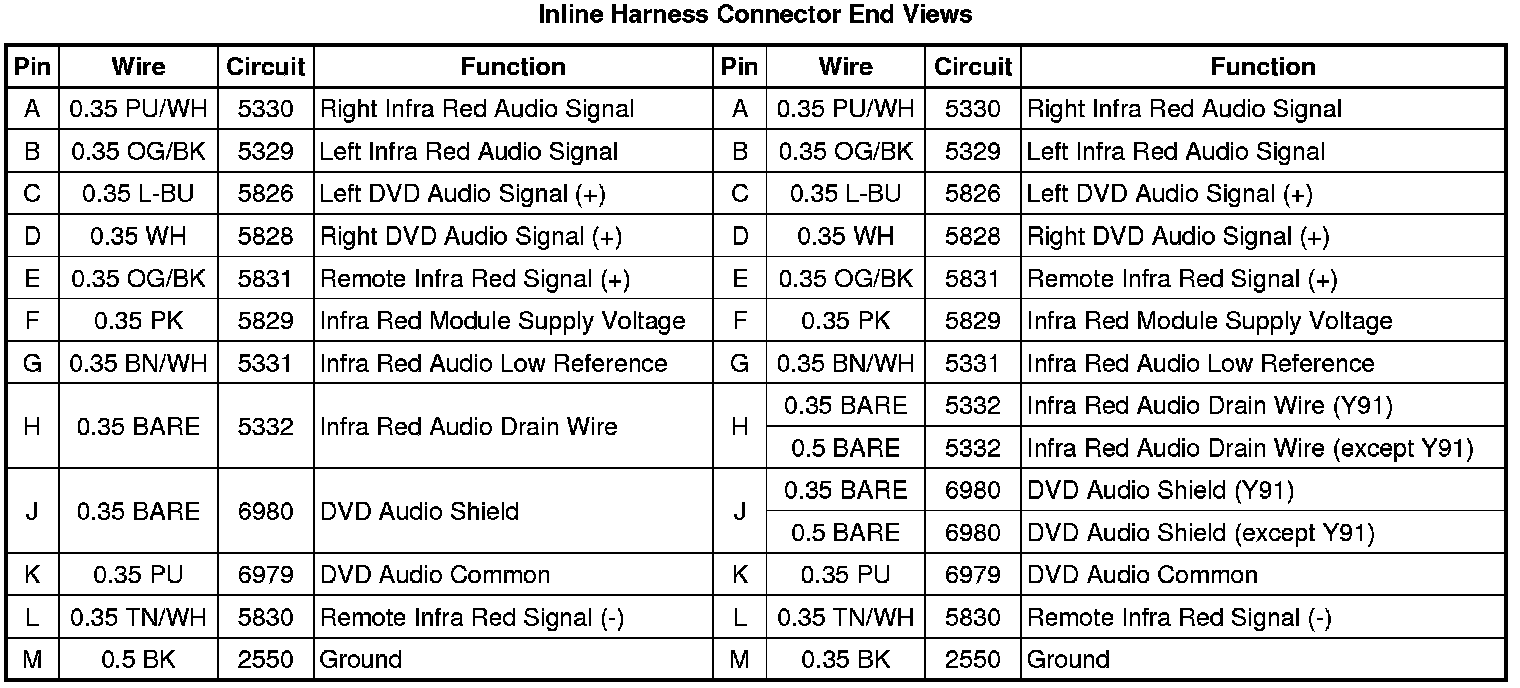

Inline Harness Connector End Views

X204 Headliner Harness to Instrument Panel Harness (Y91) or I/P Extension Harness (except Y91) (U42)
