Rear Brake Hose Replacement (To Caliper - J90, J96)

Rear Brake Hose Replacement (To Caliper - J90, J96)

Removal Procedure

Warning:
Refer to Brake Dust Warning Brake Dust Warning.


Warning:
Refer to Brake Fluid Irritant Warning Brake Fluid Irritant Warning.


1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation Service and Repair

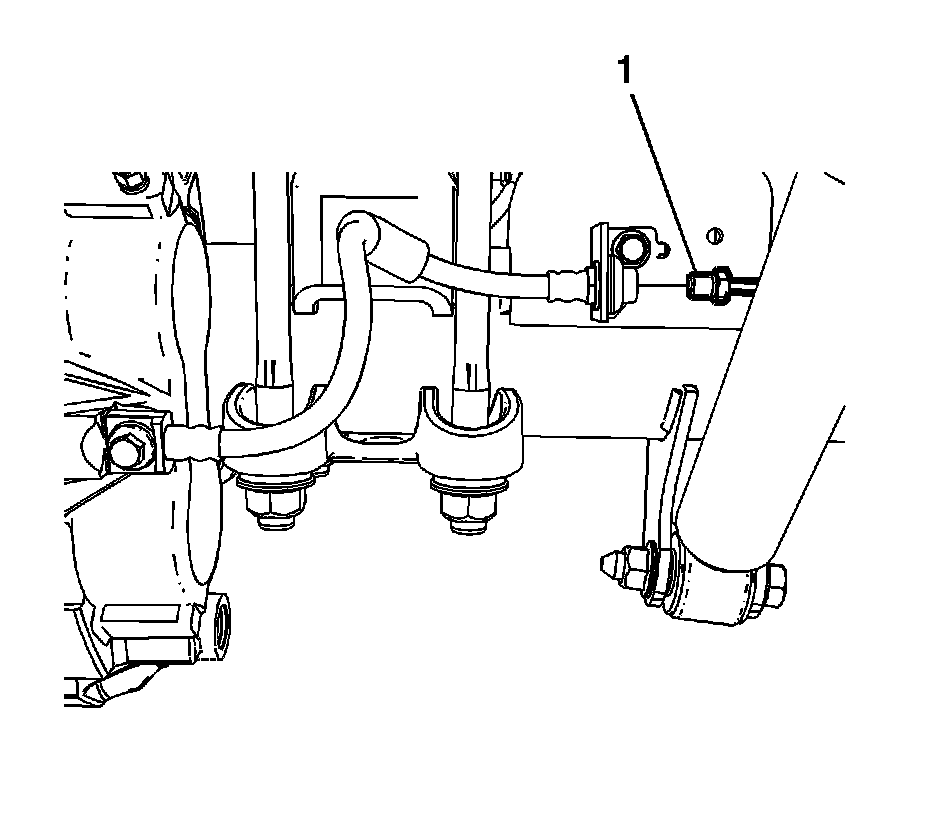

3. Disconnect the rear brake crossover pipe fitting (1).

4. Cap the brake pipe fitting to prevent brake fluid loss and contamination.

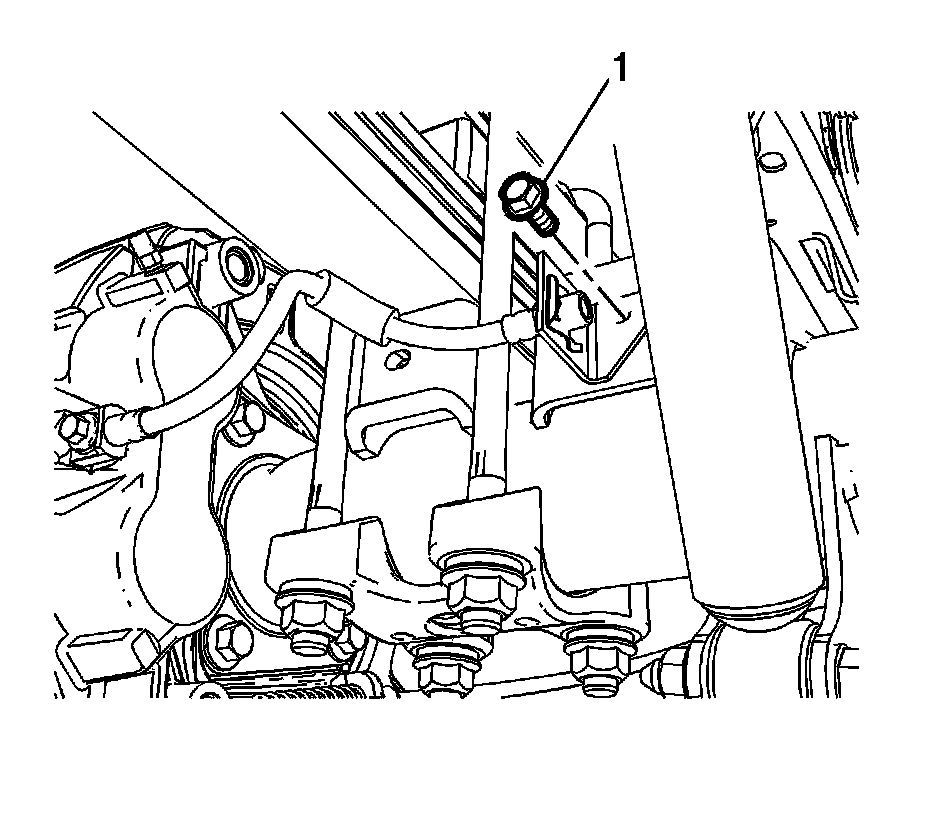

5. Remove the rear brake hose bracket bolt (1).





6. Remove the brake hose fitting bolt (1).

Note:
Do not reuse the brake hose fitting gaskets.

7. Remove and discard the brake hose fitting gaskets (2) from the brake hose fitting (3).

8. Remove the brake hose from the vehicle.

Installation Procedure

1. Install the brake hose to the vehicle.





2. Assemble the brake hose fitting bolt (1) and the new brake hose fitting gaskets (2) to the brake hose fitting (3).

Caution:
Refer to Fastener Caution Fastener Caution.

3. Install the brake hose assembly to the brake caliper and tighten the fitting bolt to 40 Nm (30 lb ft).





4. Install the rear brake hose bracket bolt (1) and tighten to 22 Nm (16 lb ft).





5. Connect the rear brake crossover pipe fitting (1) and tighten to 25 Nm (18 lb ft).

6. Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure) Hydraulic Brake System Bleeding (Pressure)Hydraulic Brake System Bleeding (Pressure) Hydraulic Brake System Bleeding (Pressure).
