Harness Locations




Harness Routing Views

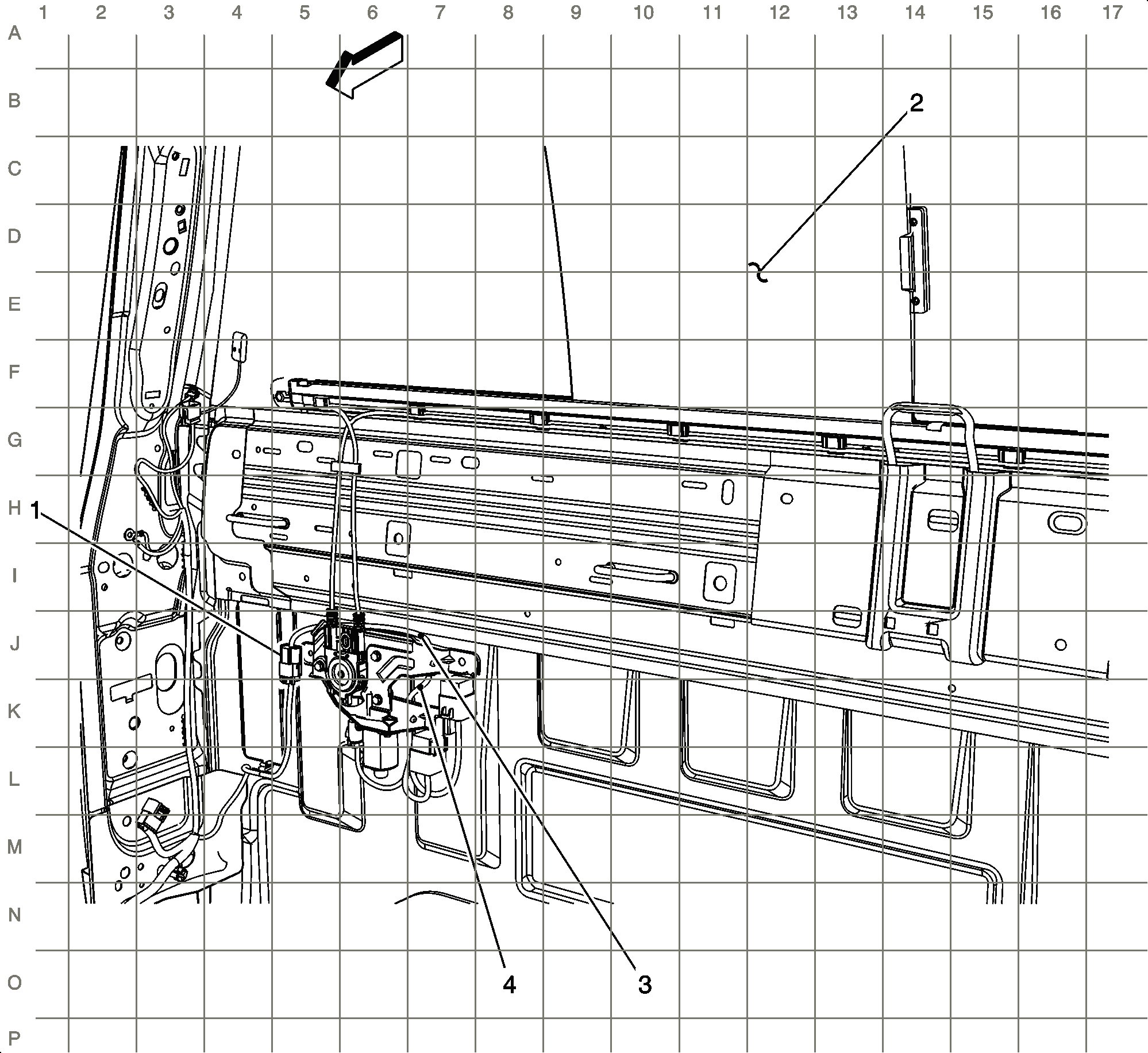

Sliding Rear Window Jumper Harness Routing (A48)





1 - X320

2 - Rear Window

3 - J336 (except C49)

4 - J335 (except C49)
