Transmission Mount: Service and Repair

Transmission Rear Mount Replacement

Removal Procedure

Caution:
Broken or deteriorated mounts can cause misalignment and destruction of certain drive train components. When a single mount breaks, the remaining mounts are subjected to abnormally high stresses.





1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle Service and Repair.

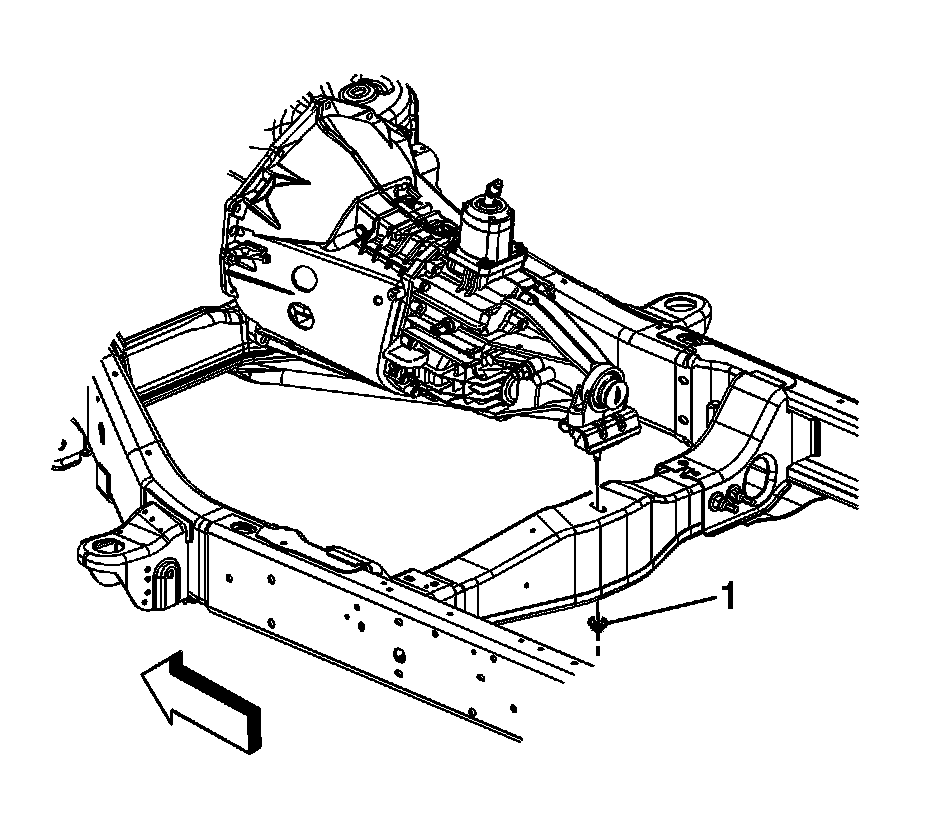

2. Remove the transmission mount to crossmember nut (1).





3. Remove the transmission mount to transmission bolts.

4. Raise the transmission just enough in order to permit removal of the mount using a suitable transmission jack.

5. Remove the transmission mount.

Installation Procedure





1. Position the transmission mount.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the transmission mount to transmission bolts and tighten to 67 Nm (50 lb ft).

3. Lower the transmission and remove the transmission jack.





4. Install the transmission mount to crossmember nut (1) and tighten to 55 Nm (40 lb ft).

5. Lower the vehicle.
