1-2-3-4 Clutch Backing Plate Retaining Ring Measurement




1-2-3-4 Clutch Backing Plate Retaining Ring Measurement

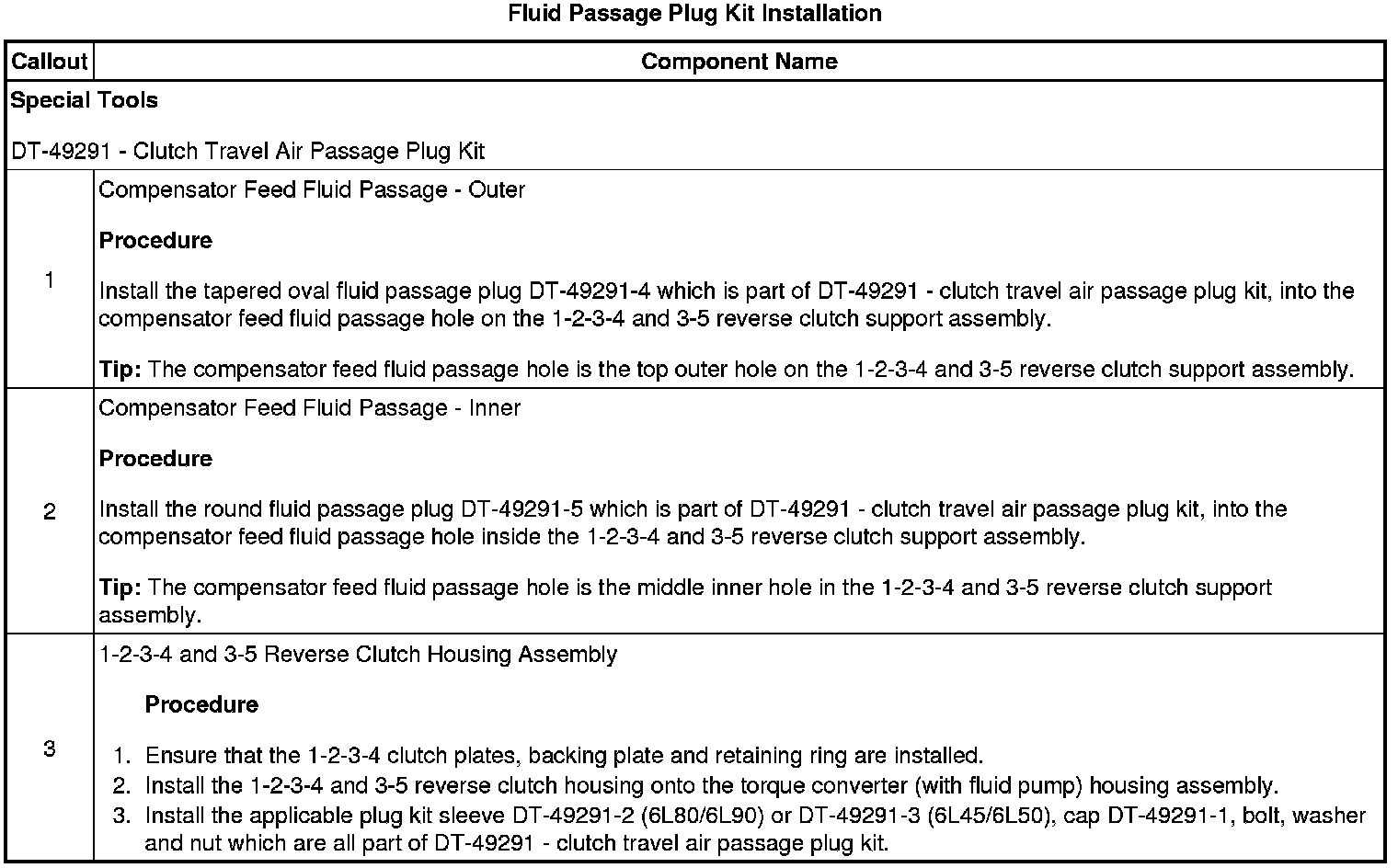

Fluid Passage Plug Kit Installation

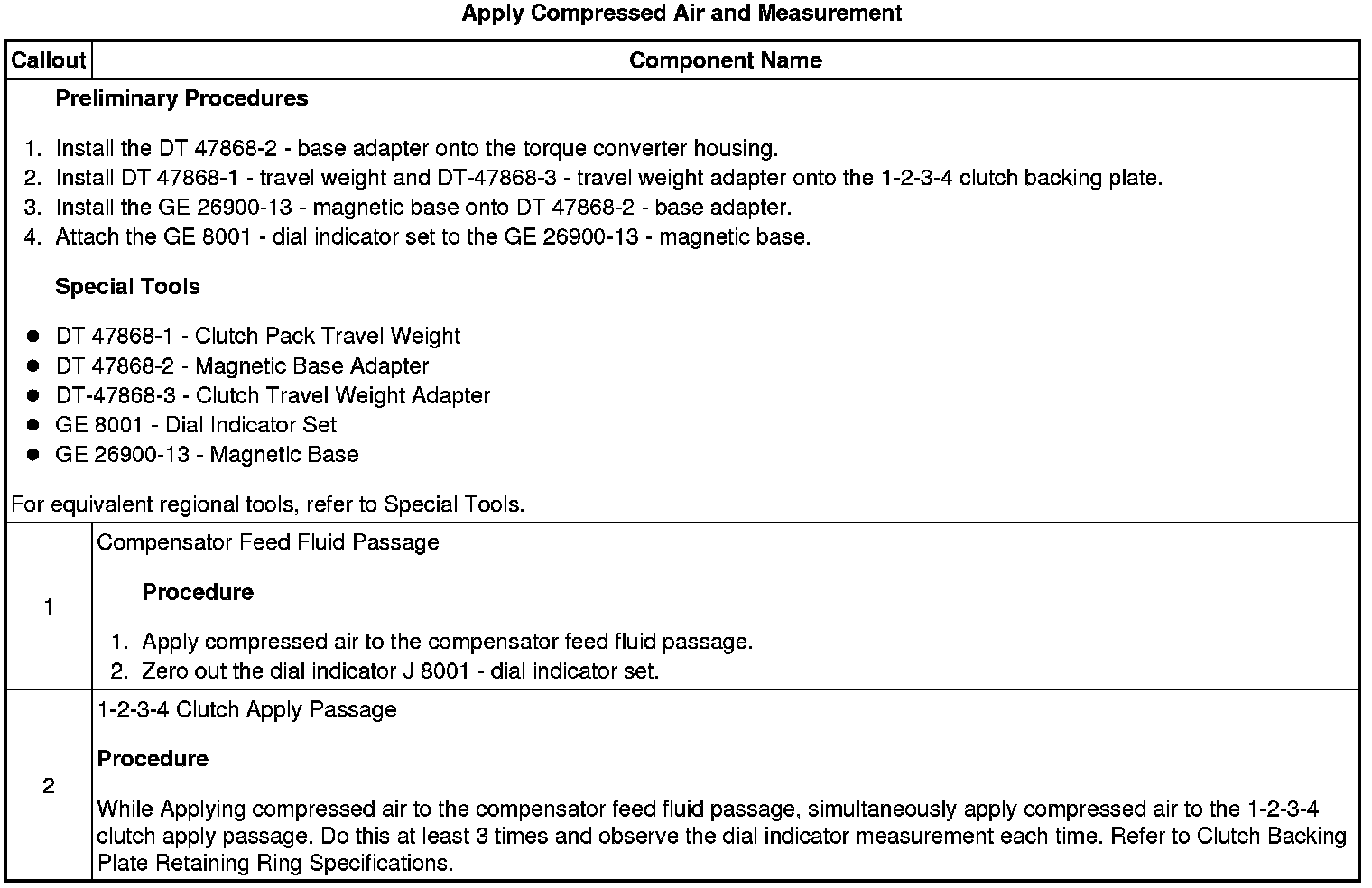

Apply Compressed Air and Measurement
