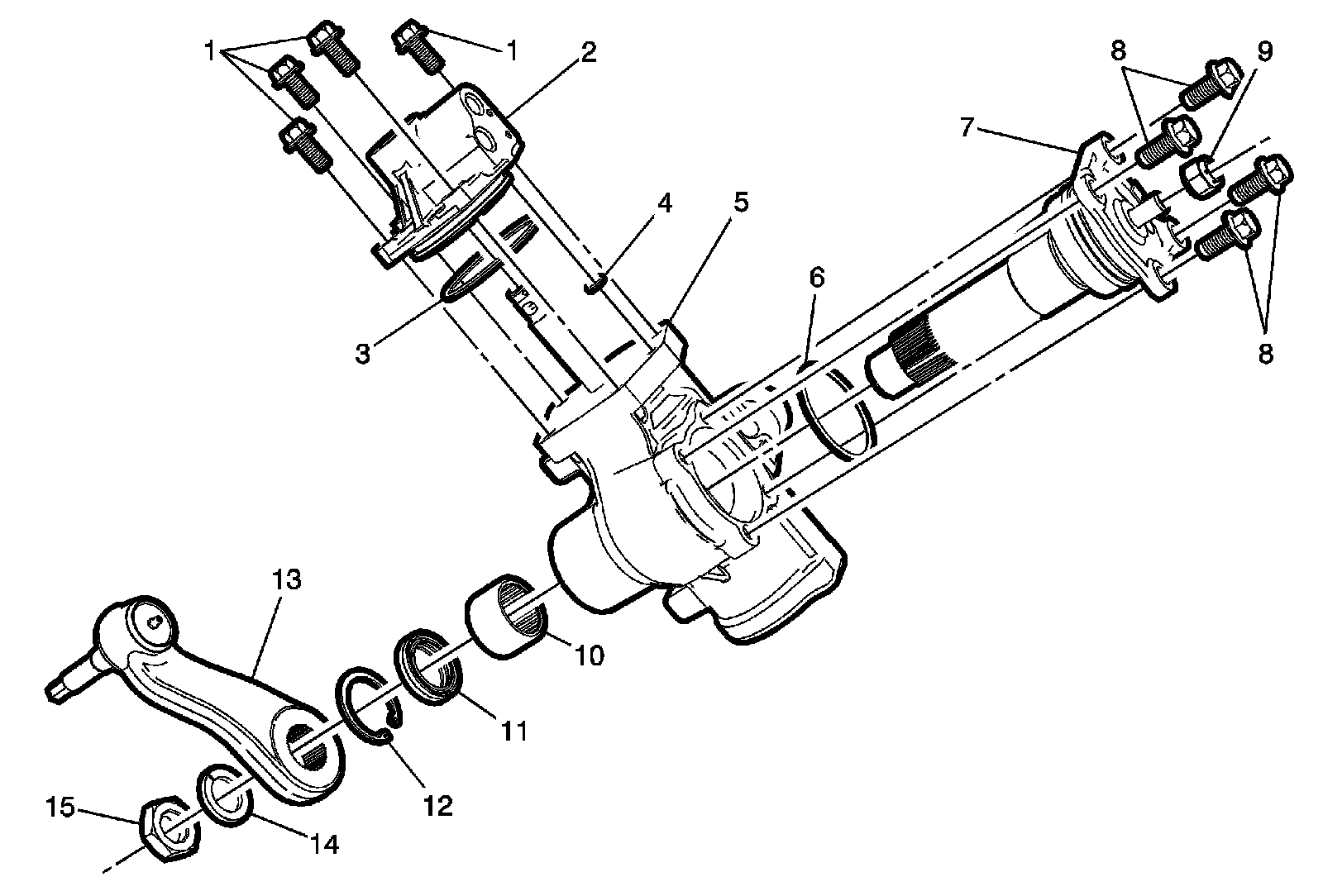

Power Steering Gear Disassembled View (684 Gear)

Power Steering Gear Disassembled View (684 Gear)





1 - Steering Gear Housing Cover Bolt

2 - Steering Gear Housing Cover

3 - Steering Gear Housing Cover Seal

4 - Steering Gear Housing Cover Seal

5 - Steering Gear Housing

6 - Steering Gear Housing Cover Seal

7 - Steering Gear Housing Cover with Pitman Shaft

8 - Steering Gear End Housing Bolt

9 - Steering Gear Pitman Shaft Adjuster Nut

10 - Steering Gear Pitman Shaft Bearing

11 - Steering Gear Pitman Shaft Seal

12 - Steering Gear Pitman Shaft Seal Retaining Ring

13 - Pitman Arm

14 - Pitman Arm Washer

15 - Pitman Arm Nut
