Fuse Block - Underhood X2

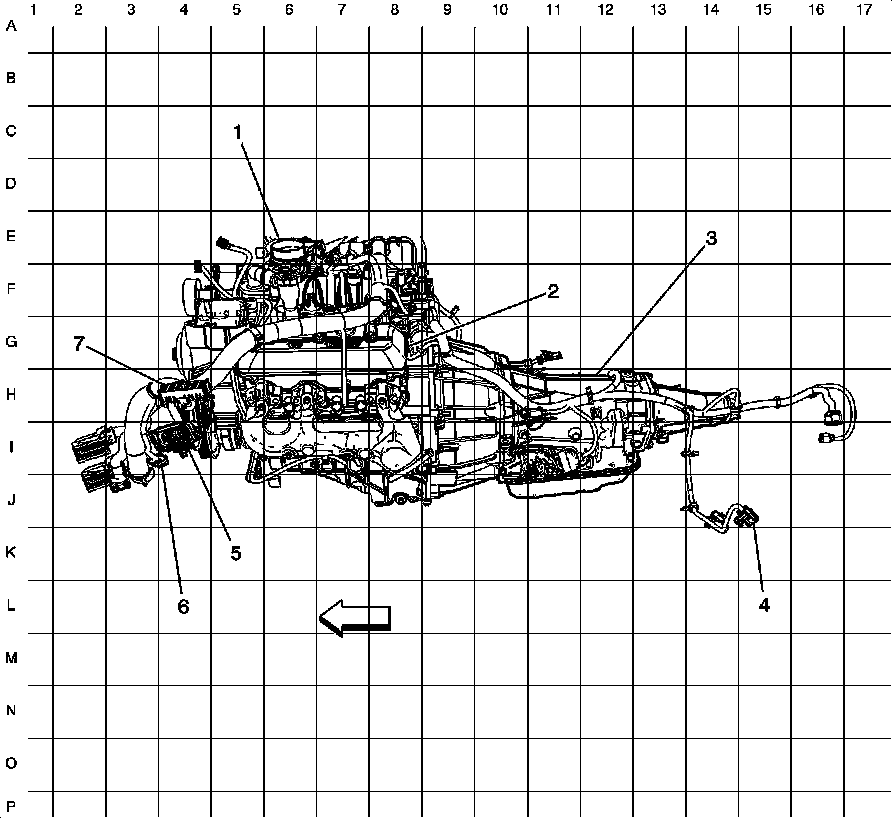

Ground Views

G107 (4.3L)





1 - Throttle Body

2 - G107

3 - Transmission

4 - X300

5 - X109

6 - X110 (NQG/NQH)

7 - Fuse Block - Underhood X2
