Camshaft Gear/Sprocket

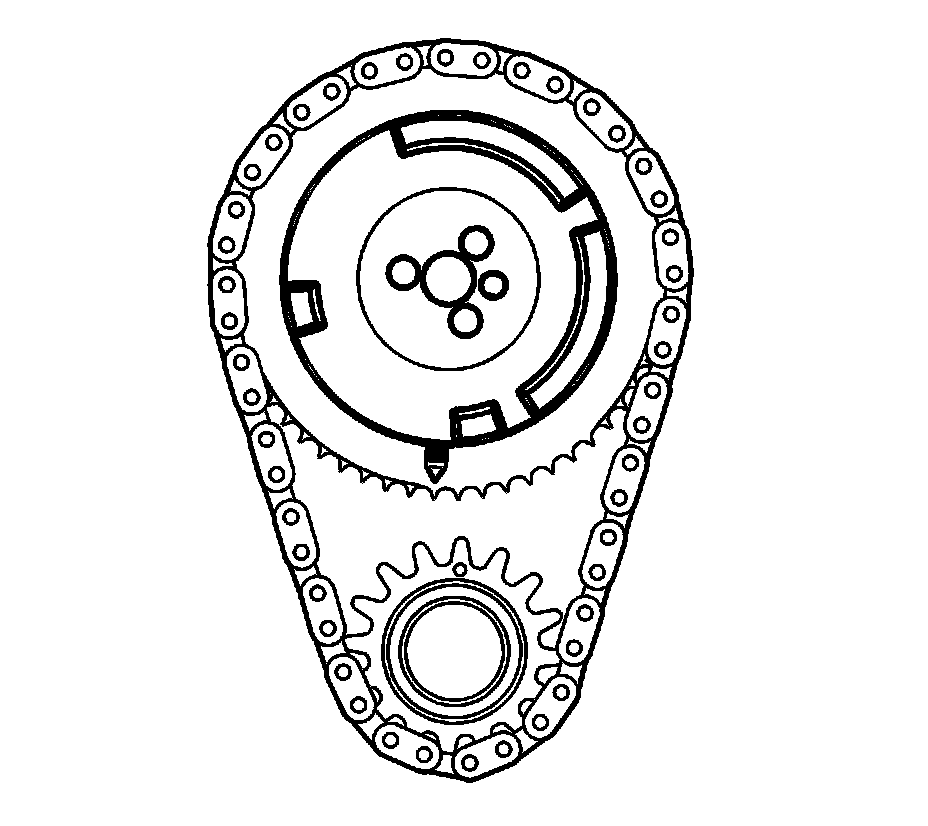

Ensure that the crankshaft sprocket is aligned at the 12 o'clock position and camshaft sprocket is aligned at the 6 o'clock position.
Install camshaft sprocket bolts and tighten to 25 Nm (18 lb ft).
Ensure that the crankshaft sprocket is aligned at the 12 o'clock position and camshaft sprocket is aligned at the 6 o'clock position.
Install camshaft sprocket bolts and tighten to 25 Nm (18 lb ft).
