Trailer Brake Control Module
>>
Diagrams
>>
Trailer Brake Control Module (JL1 with 31 Series)
Trailer Brake Control Module (JL1 with 31 Series)

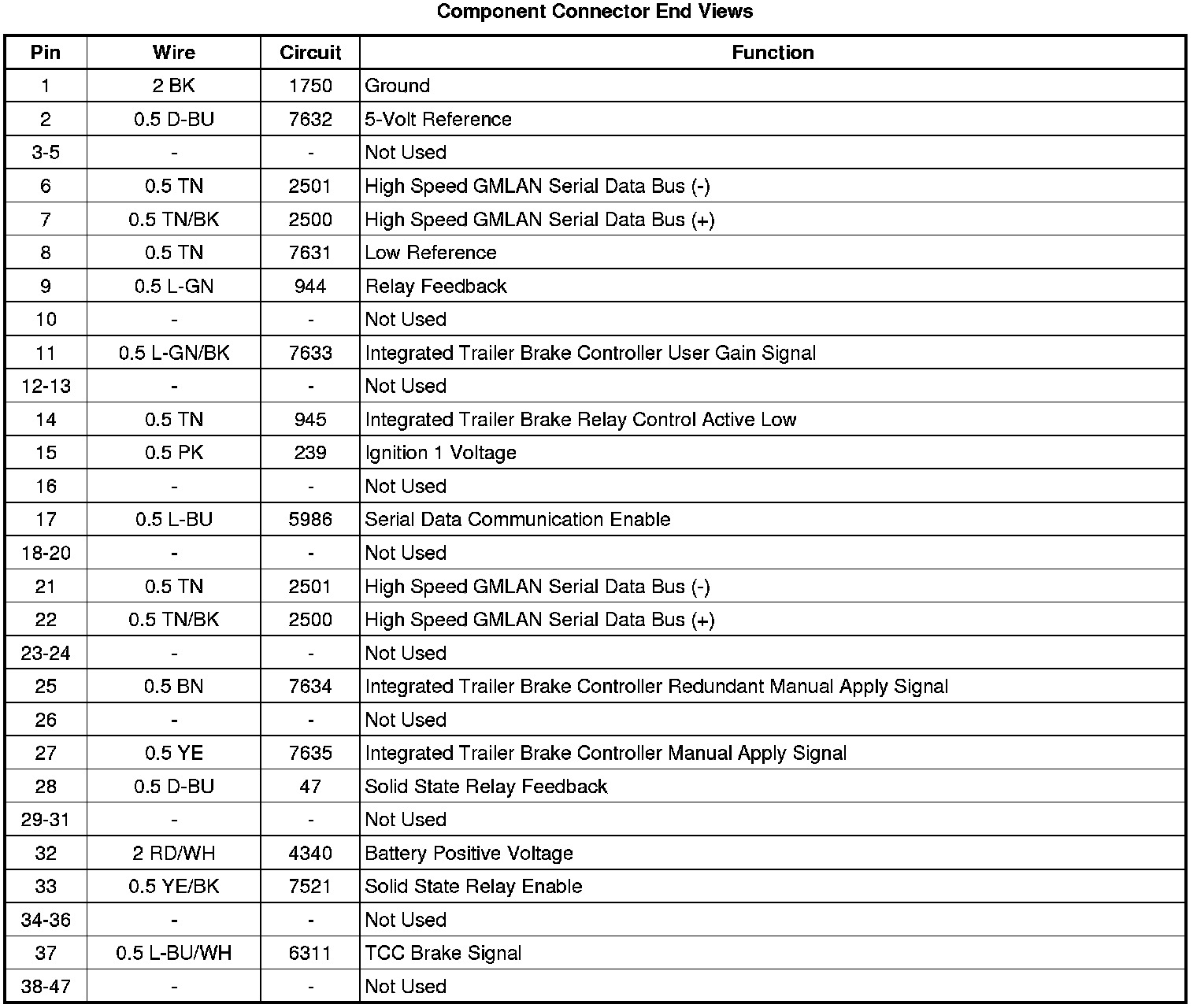

Component Connector End Views
Trailer Brake Control Module
(JL1 with 31 Series)
