Exhaust Gas NOx Sensor: Locations

Wheels/Vehicle Underbody Component Views

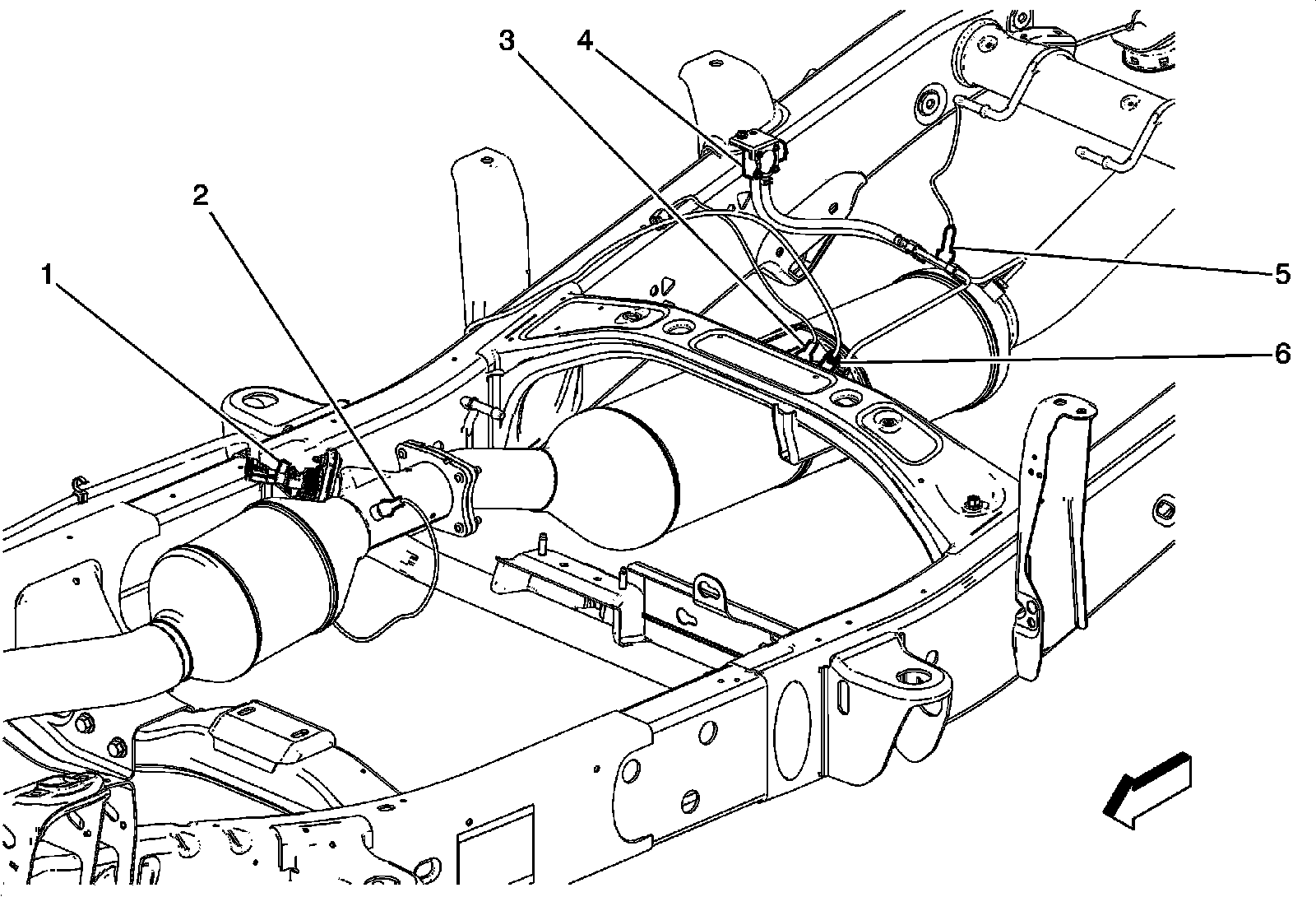

Front of the Exhaust Components (Diesel)





1 - Reductant Injector

2 - Exhaust Temperature Sensor 2

3 - Exhaust Temperature Sensor 3

4 - Exhaust Pressure Differential Sensor

5 - Exhaust Temperature Sensor 4

6 - Nitrogen Oxides Sensor 2
