Passenger Seat Harness Routing

Harness Routing Views

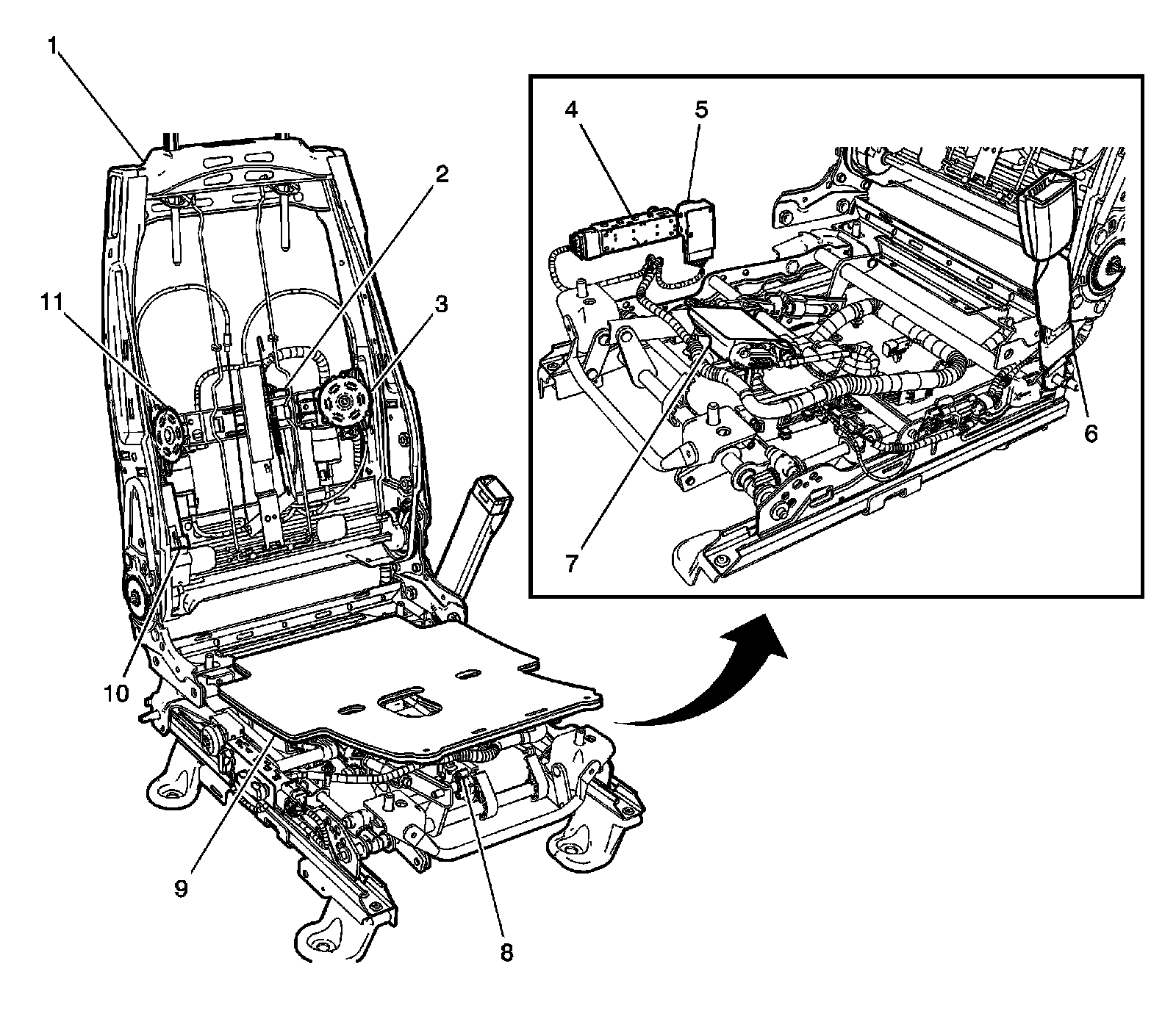

Passenger Seat Harness Routing





1 - Seat Frame

2 - X325 (AN3)

3 - Seat Lumbar Vertical Motor - Passenger (AN3)

4 - Seat Adjuster Switch - Passenger (AG2)

5 - Seat Lumbar Switch - Passenger (AN3)

6 - Seat Belt Buckle - Passenger

7 - Inflatable Restraint Passenger Presence System (PPS) Module (AL0)

8 - Seat Adjuster Motor Assembly - Passenger (AG2)

9 - Inflatable Restraint Passenger Presence System (PPS) Sensor (AL0)

10 - Seat Recline Motor - Passenger (AN3)

11 - Seat Lumbar Horizontal Motor - Passenger (AN3)
