I/P Extension Harness Routing (SLT except Y91/MEX)

Harness Routing Views

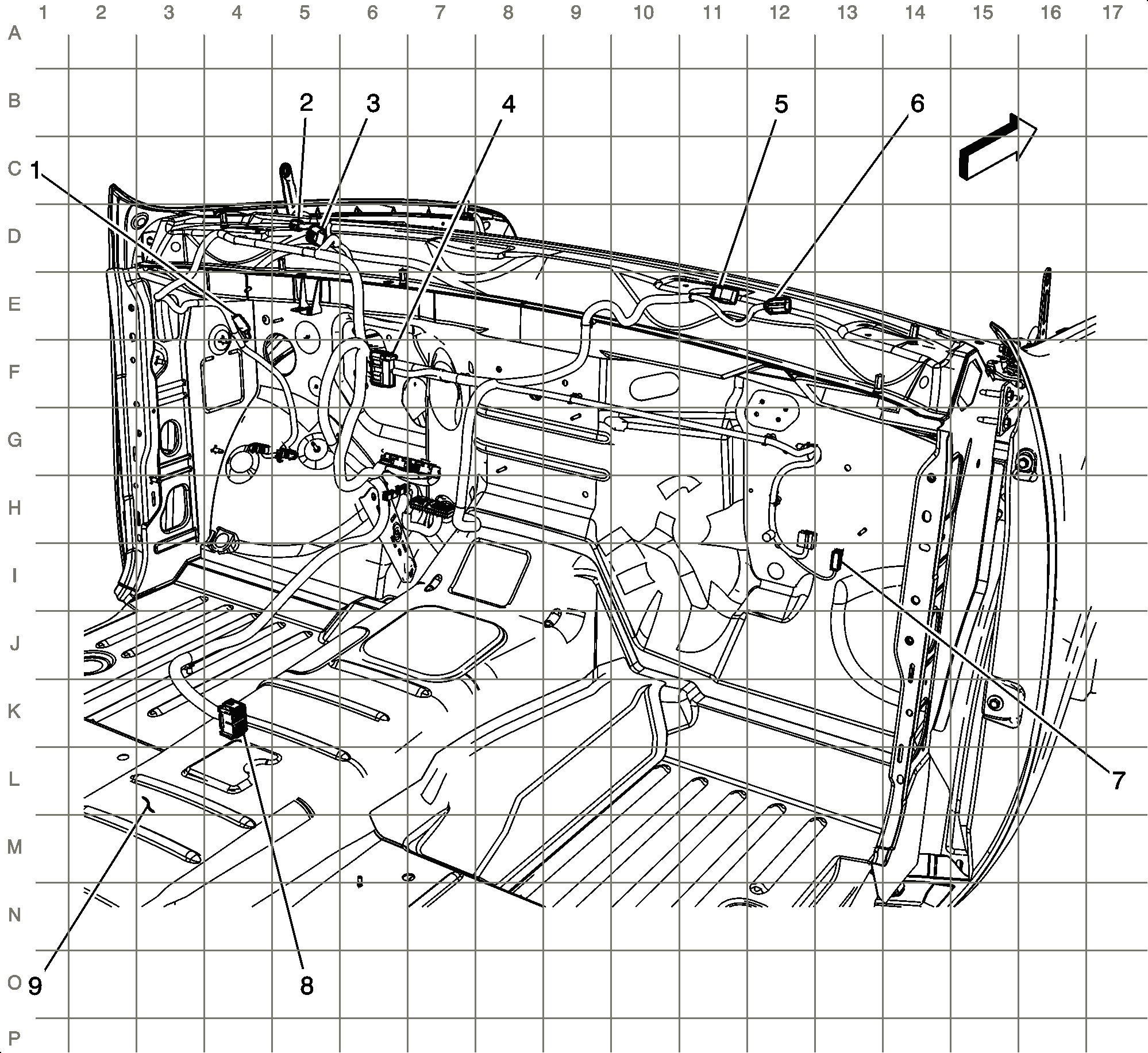

I/P Extension Harness Routing (SLT except Y91/MEX)





1 - JX223 (U2K/UK6/UE1)

2 - X203 (UE1/U3U/UVB)

3 - X204 (U42)

4 - X212

5 - X206 (U42)

6 - X213 (COAX)

7 - Vehicle Communication Interface Module (VCIM) (UE1)

8 - X301 (UQA/D07)

9 - Floor Panel
