Headliner Harness Routing (Extended Cab)




Harness Routing Views

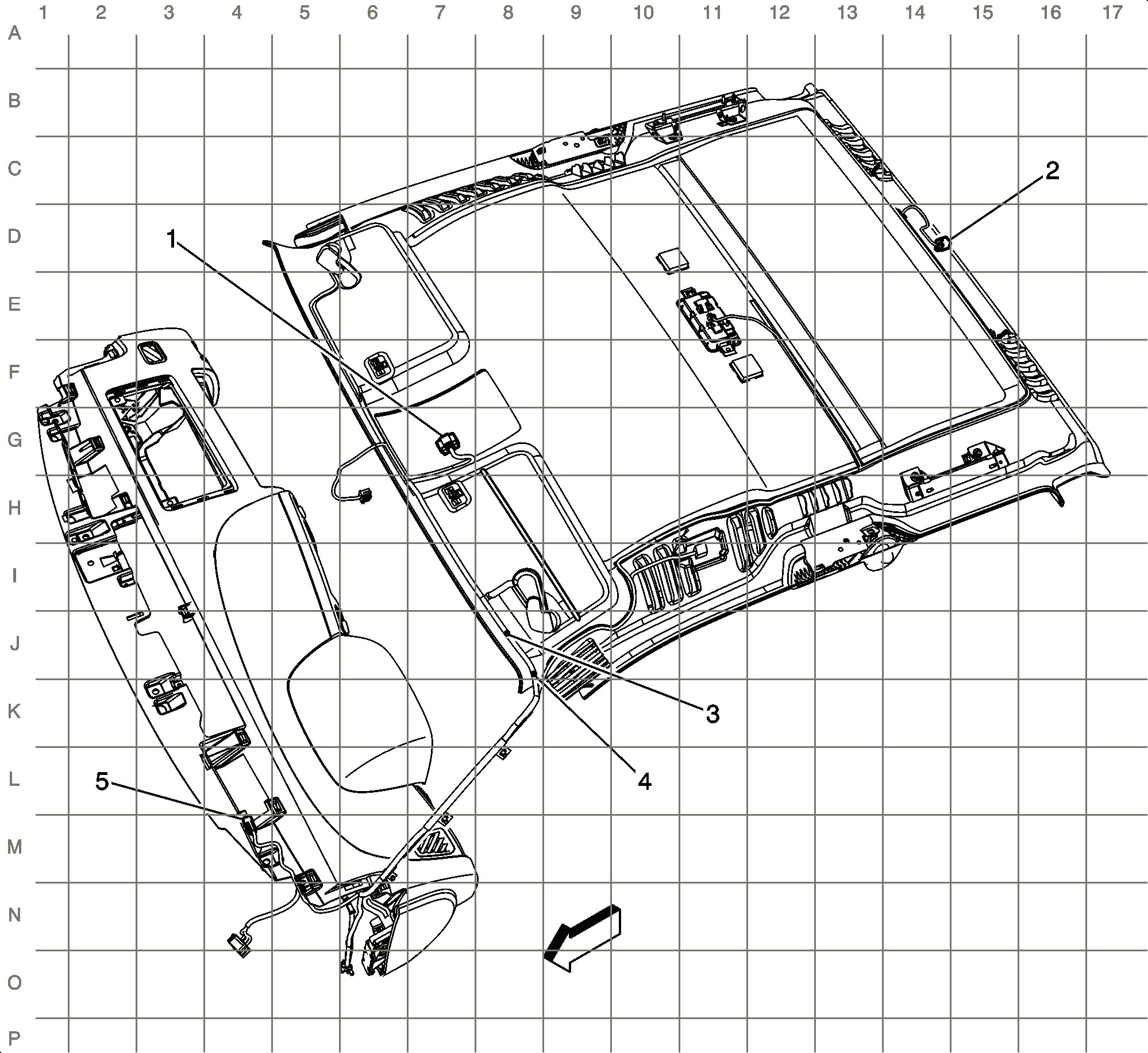

Headliner Harness Routing (Extended Cab)





1 - X304

2 - X318

3 - J327

4 - J328

5 - X203 (UE1/U3U/UVB)
