Inside the Transmission Components (M30)

Powertrain Component Views

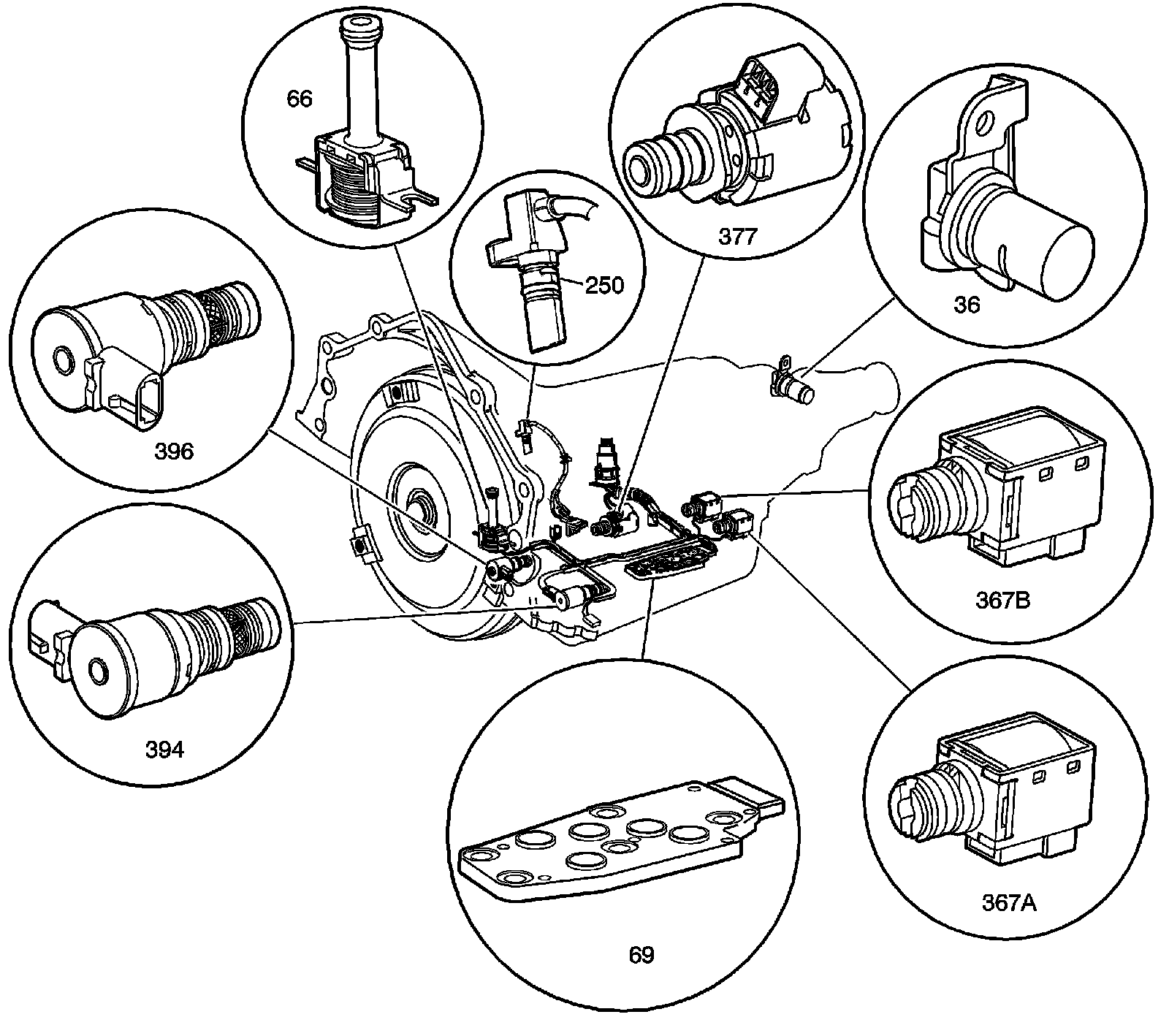

Inside the Transmission Components (M30)





36 - Vehicle Speed Sensor (VSS)

66 - Torque Converter Clutch (TCC) Solenoid Valve

69 - Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch

250 - Automatic Transmission Input Speed Sensor (ISS)

367a - 1-2 Shift Solenoid (SS) Valve

367b - 2-3 Shift Solenoid (SS) Valve

377 - Pressure Control (PC) Solenoid Valve

394 - 3-2 Shift Solenoid (SS) Valve

396 - Torque Converter Clutch (TCC) Pulse Width Modulation (PWM) Solenoid Valve
