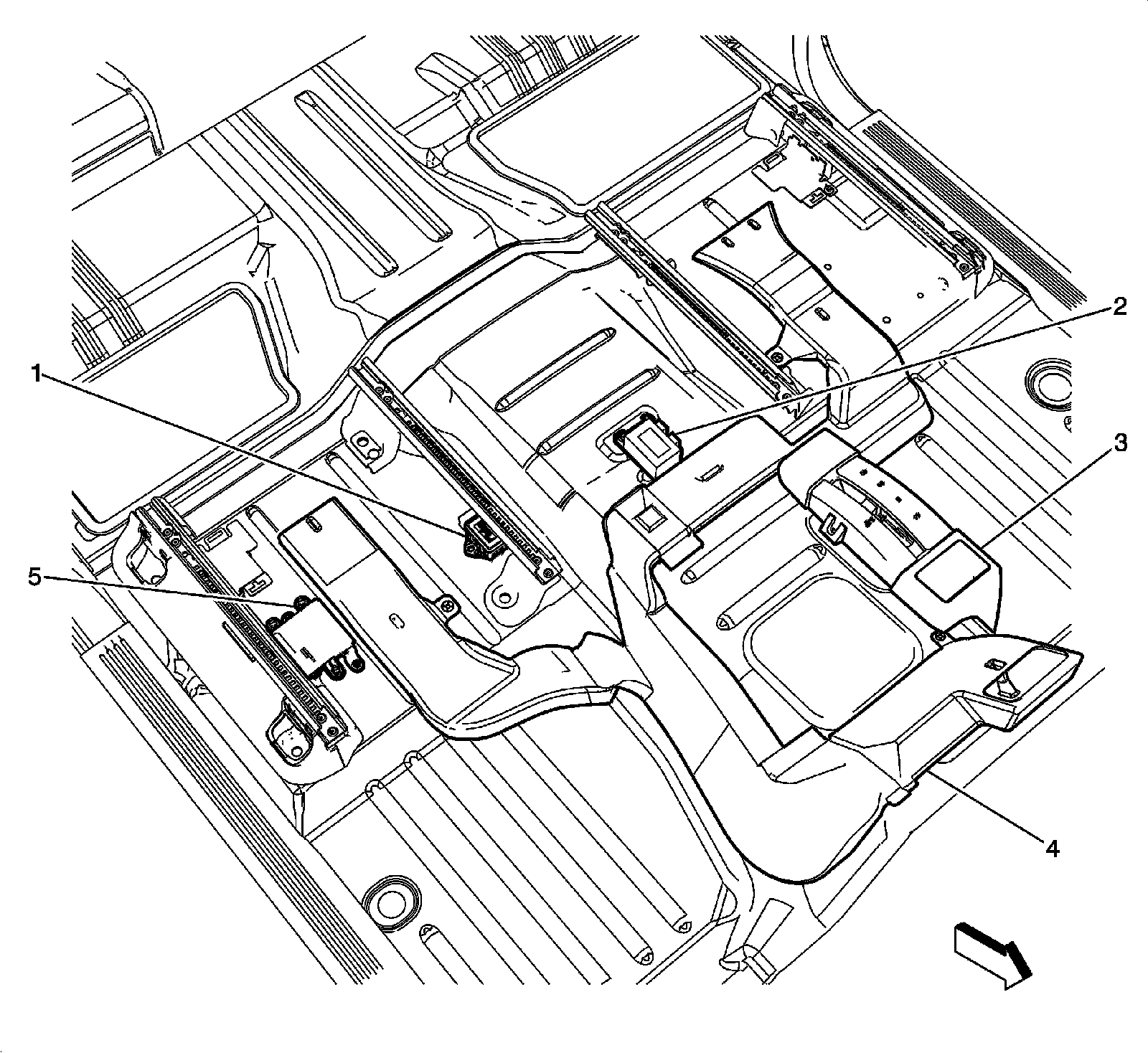

Under the Front Seat Components





1 - Yaw and Lateral Accelerometer Sensor (JL4 or HP2)

2 - Inflatable Restraint Sensing and Diagnostic Module (SDM)

3 - Shifter Housing

4 - Rear HVAC Outlet Duct

5 - Rear Object Sensor Control Module (UD7)
