Brake Pedal Position Sensor Replacement (Without JF4)

Brake Pedal Position Sensor Replacement (Without JF4)

Removal Procedure

1. Place the ignition switch in the OFF position.
2. Disconnect the brake pedal position sensor electrical connector.

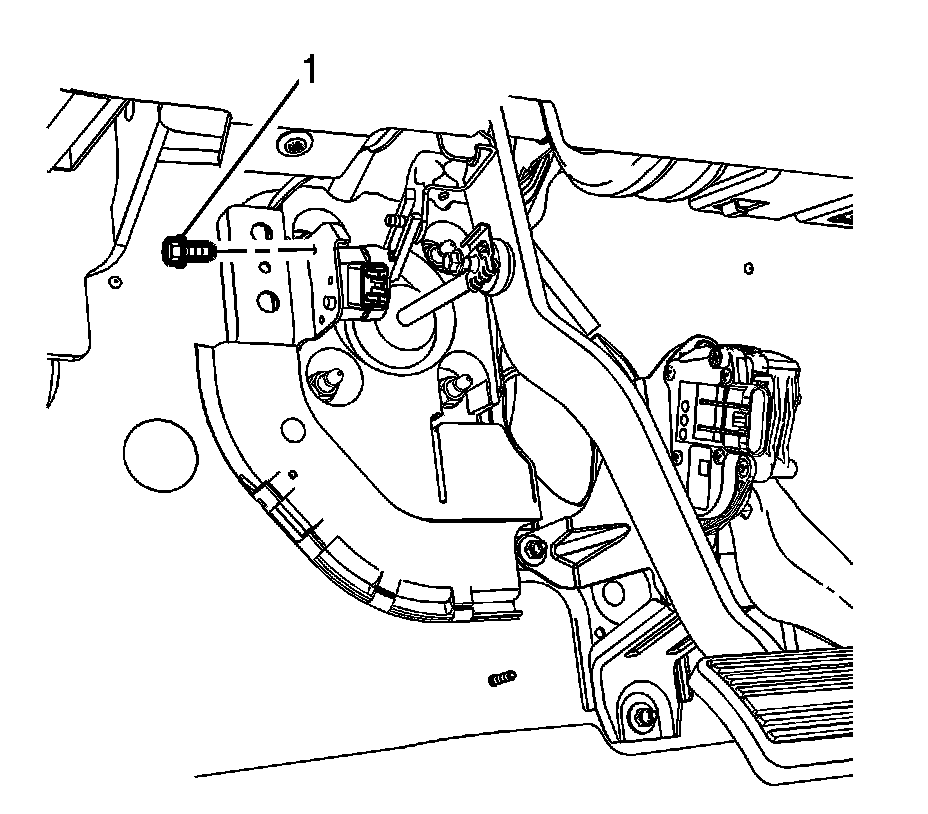

3. Remove the brake pedal position sensor bolt (1).

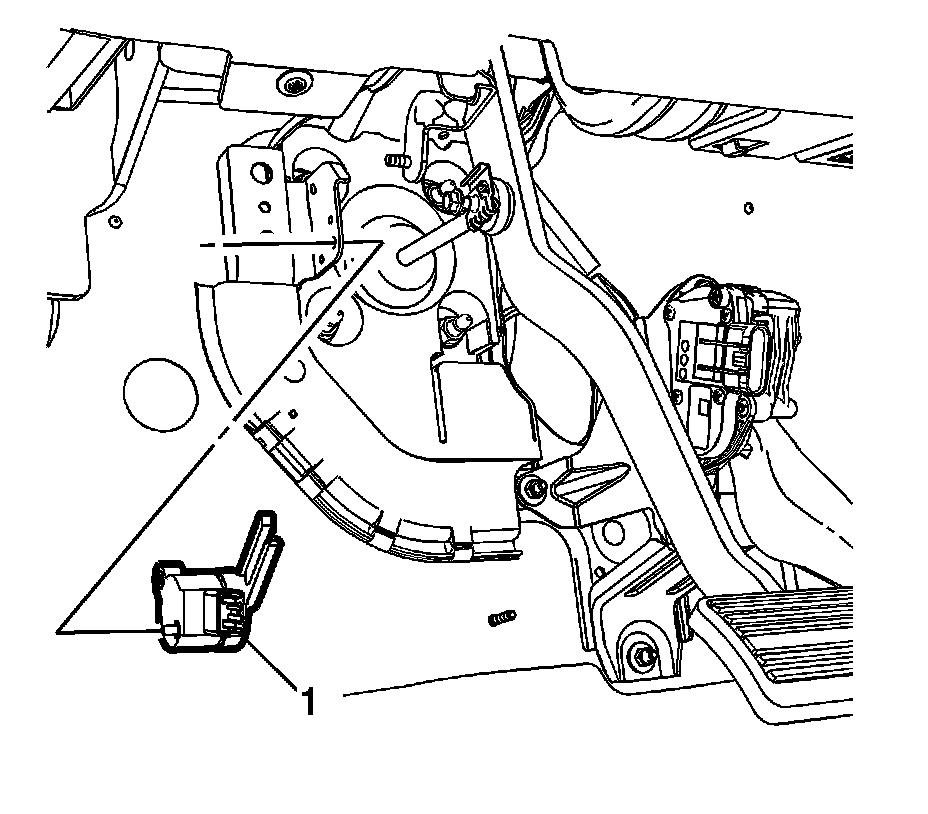

4. Remove the brake pedal position sensor (1).

Installation Procedure




1. Install the brake pedal position sensor (1).





Caution: Refer to Fastener Caution .

2. Install the brake pedal position sensor bolt (1).
3. Connect the brake pedal position sensor electrical connector.
4. Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
