Backup Lamp - Left Rear

Luggage Compartment/Rear of Vehicle Component Views

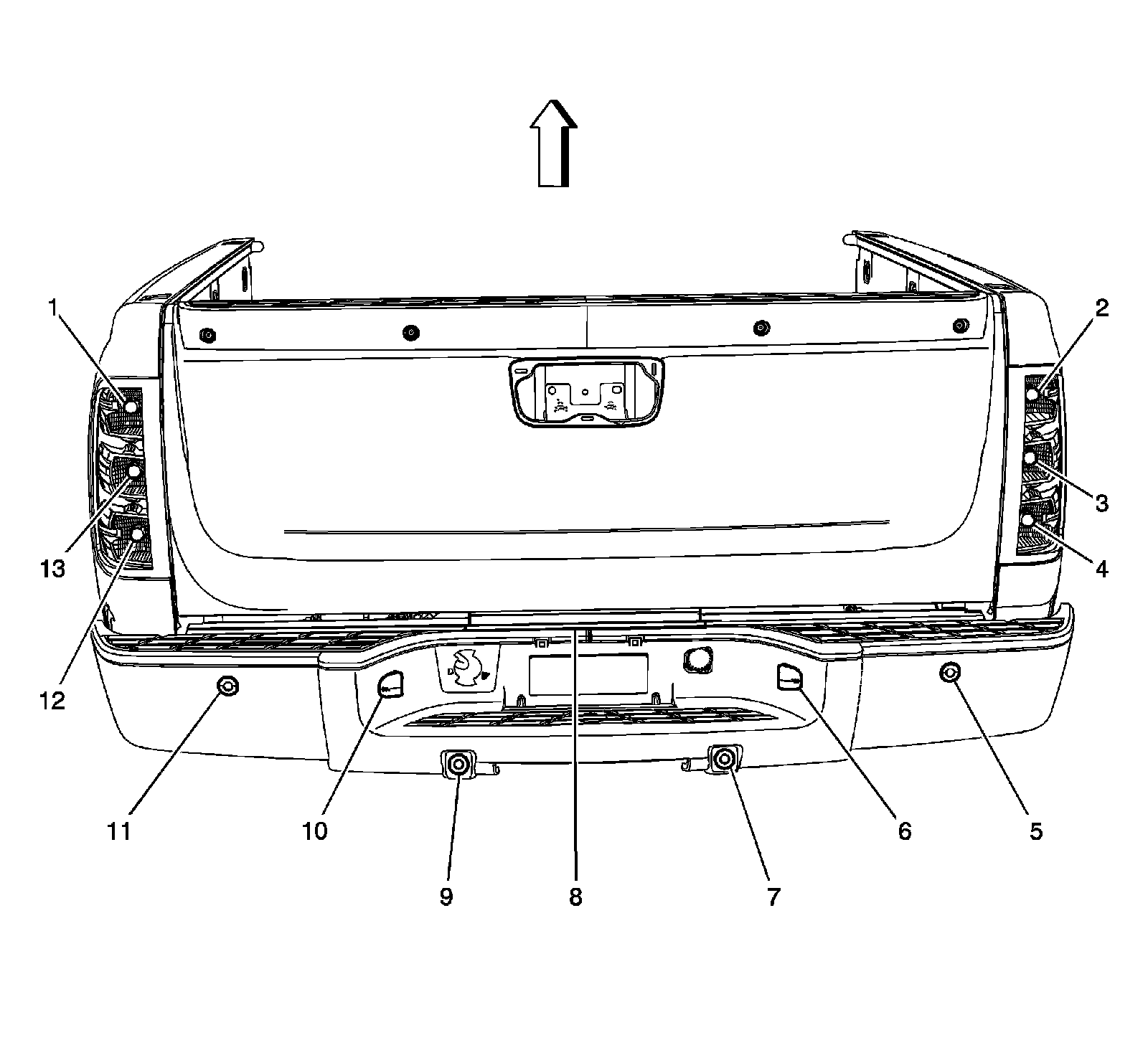

Rear of the Vehicle Components (X88)





1 - Tail/Stop and Turn Signal Lamp - Upper Left

2 - Tail/Stop and Turn Signal Lamp - Upper Right

3 - Backup Lamp - Right Rear

4 - Tail/Stop and Turn Signal Lamp - Lower Right

5 - Object Alarm Sensor - Right Rear Corner (UD7)

6 - License Lamp - Right

7 - Object Alarm Sensor - Right Rear Middle (UD7)

8 - Marker Lamp - Tailgate (R05)

9 - Object Alarm Sensor - Left Rear Middle (UD7)

10 - License Lamp - Left

11 - Object Alarm Sensor - Left Rear Corner (UD7)

12 - Tail/Stop and Turn Signal Lamp - Lower Left

13 - Backup Lamp - Left Rear
