Radiator Cooling Fan Motor: Service and Repair

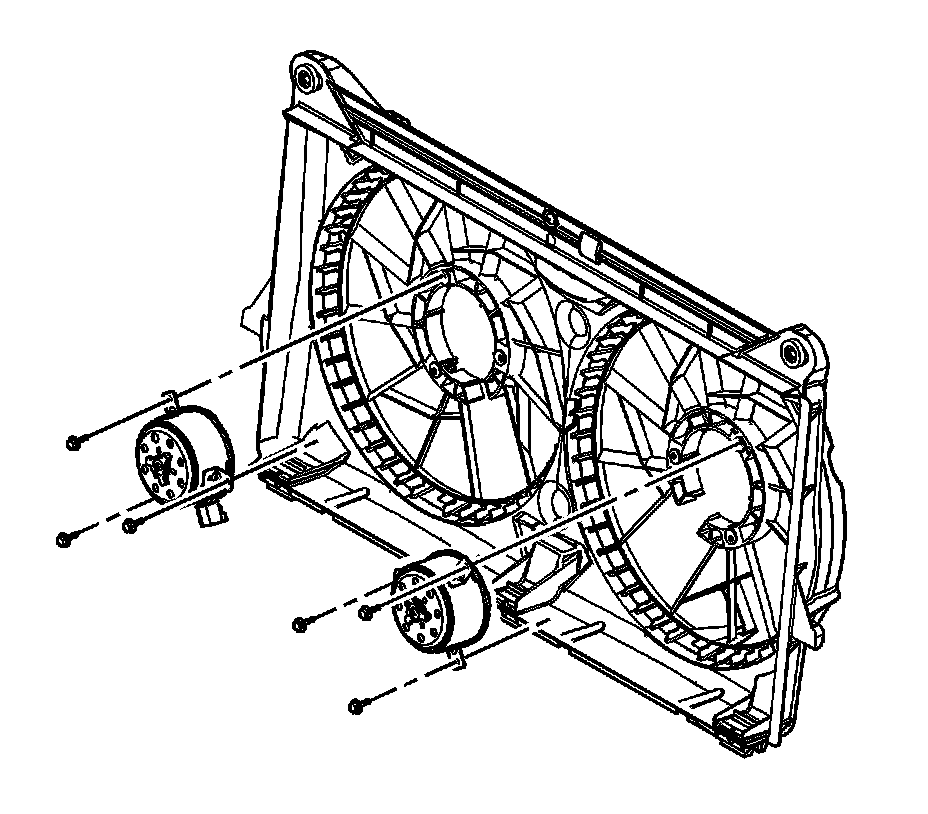

Engine Coolant Fan Motor Replacement (Non-HP2)

Removal Procedure





1. Remove the cooling blade(s). Refer to Engine Coolant Fan Replacement (Non-HP2) Service and Repair.

2. Remove the cooling fan motor bolts.

3. Remove the cooling fan motor(s).

Installation Procedure





1. Install the cooling fan motor(s).

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the cooling fan motor bolts.

Tighten the bolts to 10 Nm (89 lb in).

3. Install the cooling fan blades. Refer to Engine Coolant Fan Replacement (Non-HP2) Service and Repair.
