I/P Harness Routing - Passenger Compartment

Harness Routing Views

I/P Harness Routing- Passenger Compartment (Except HP2)- 1 of 2





1 - Instrument Panel Cluster Connector

2 - X201

3 - X205

4 - Junction Block - Right I/P

5 - X200

6 - X202




Harness Routing Views

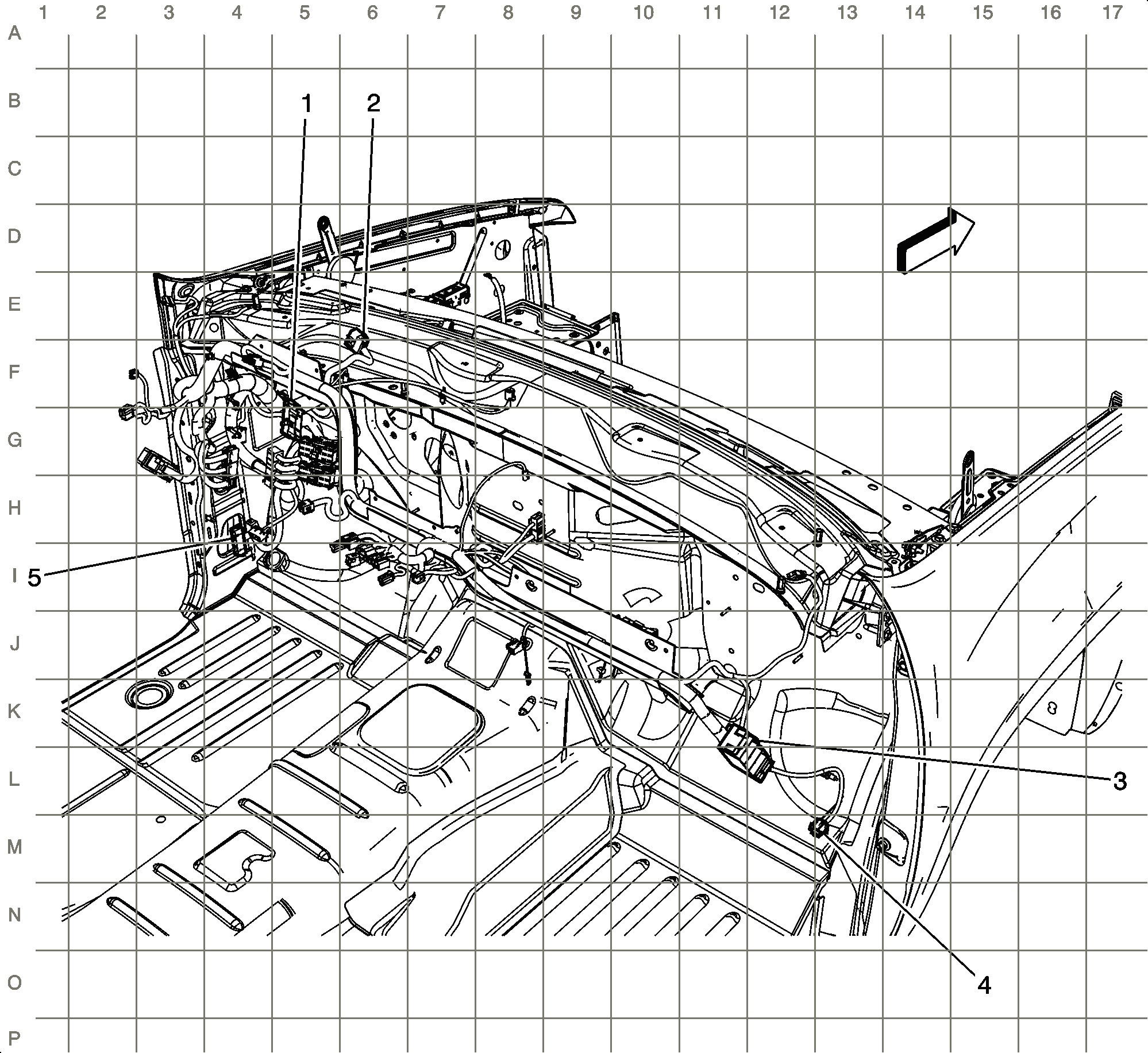

I/P Harness Routing- Passenger Compartment (Except HP2)- 2 of 2





1 - J207 (NQF/NQH except MEX)

2 - J201

3 - JX221

4 - J200

5 - J203 (Y91)

6 - J206 (CJ2)
