MP 1625/1626-NQF - Transfer Case

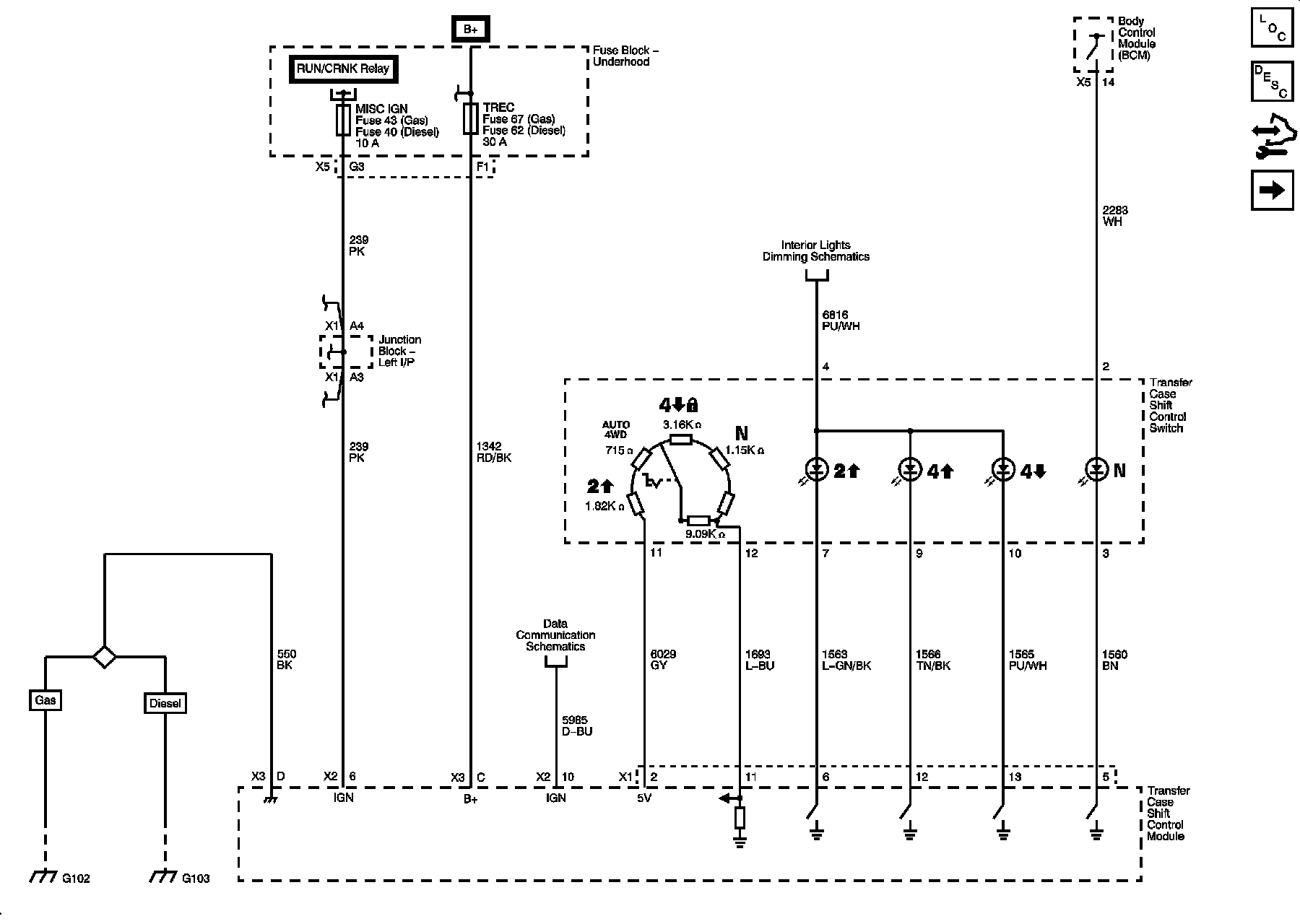

Transfer Case Control Schematics

Power, Ground, and Shift Controls






Transfer Case Controls






Front Axle Controls
