Trailer Brakes




Trailer Brake Control Schematics

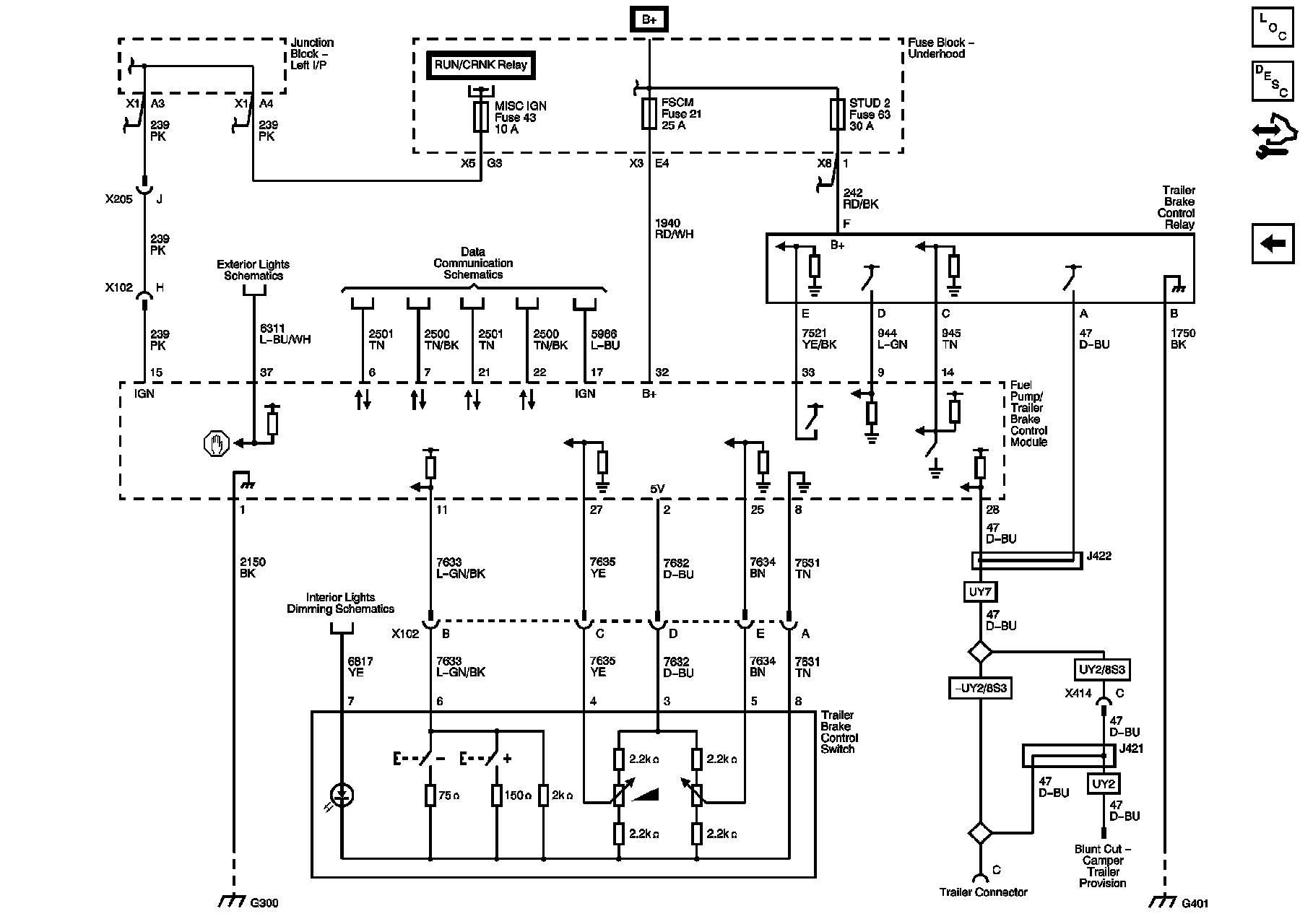

Trailer Brake Control (JL1 except 10 Series)

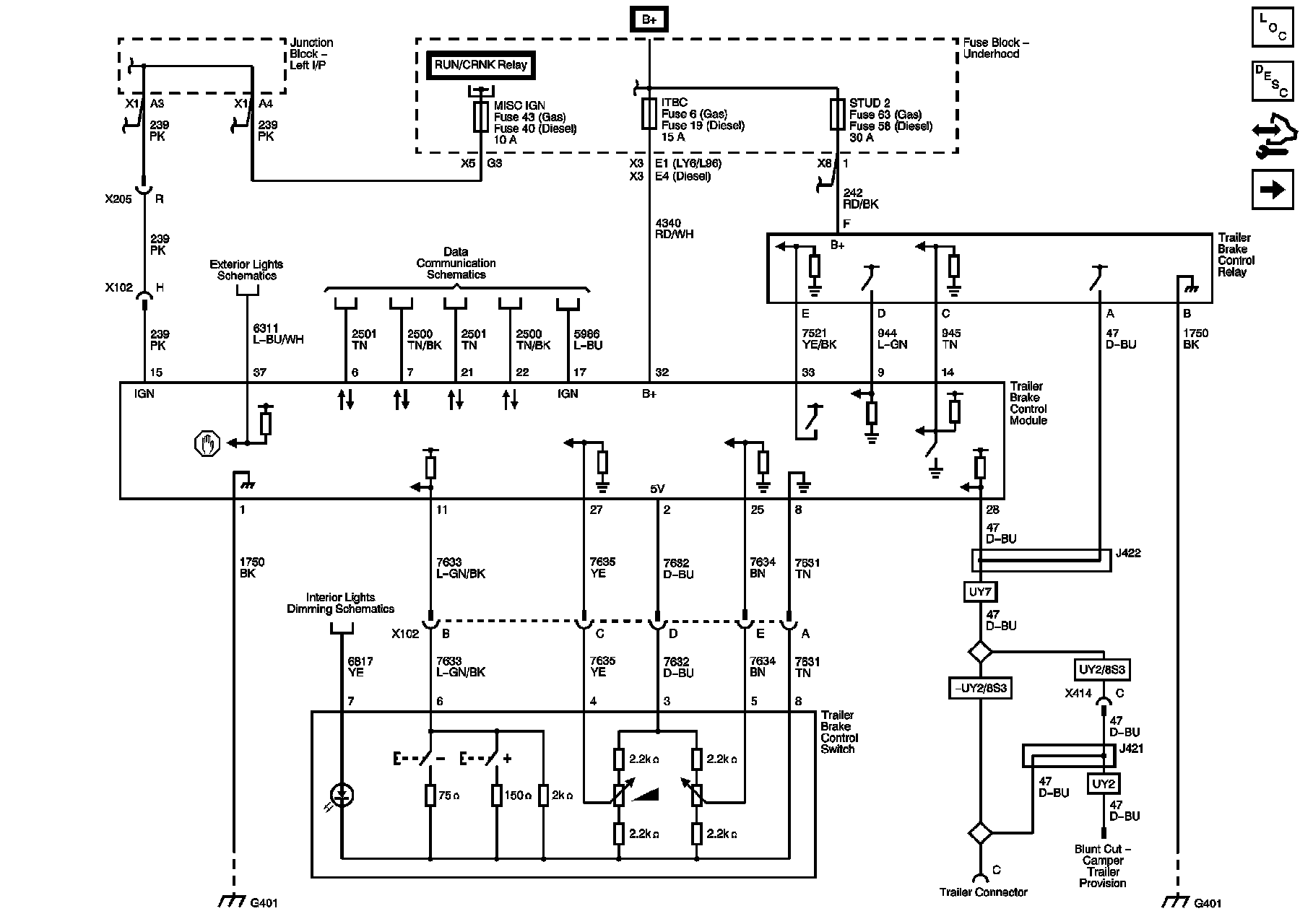

Trailer Brake Control (JL1 with 10 Series)
