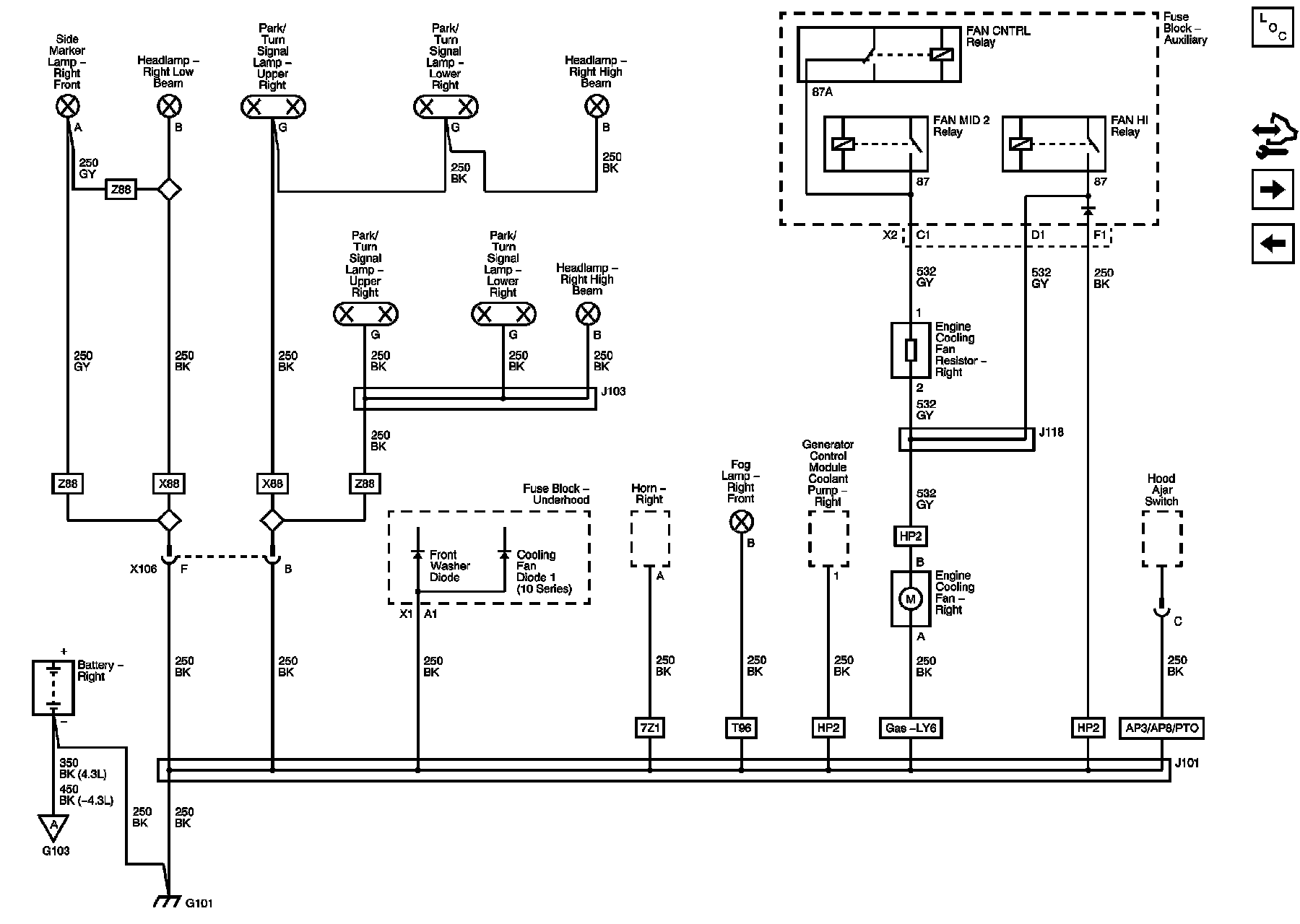

Home >> Chevrolet >> 2013 >> Silverado 1500 4WD V6-4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G101
