Passenger Seat Schematics
Passenger Seat Schematics
Passenger Seat Schematics
6-Way Power (Without AN3)

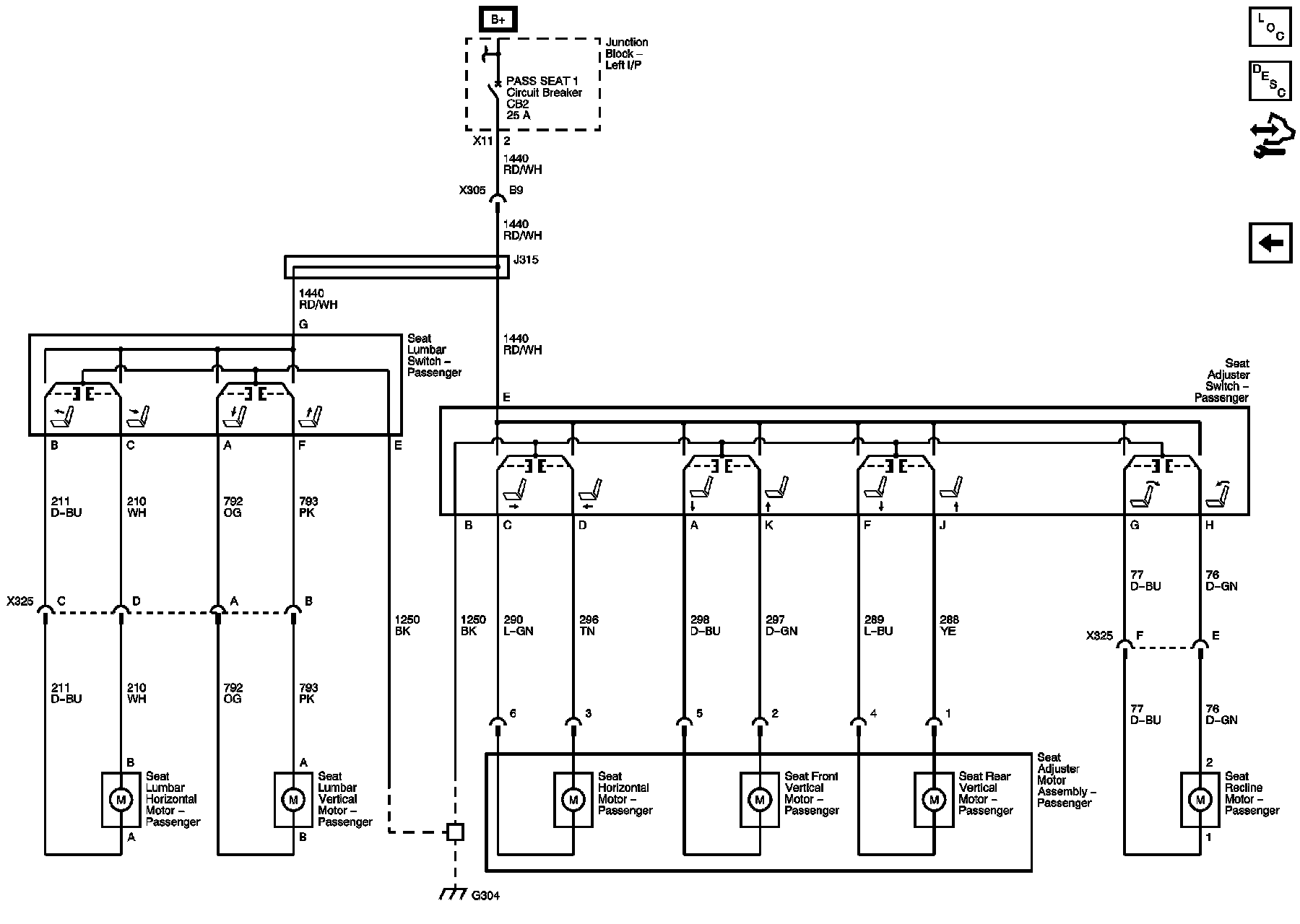

8-Way Power (AN3)
