Seat Temperature Element




Heated/Cooled Seat Schematics

Heated Seat - Driver (AN3 without KB6)

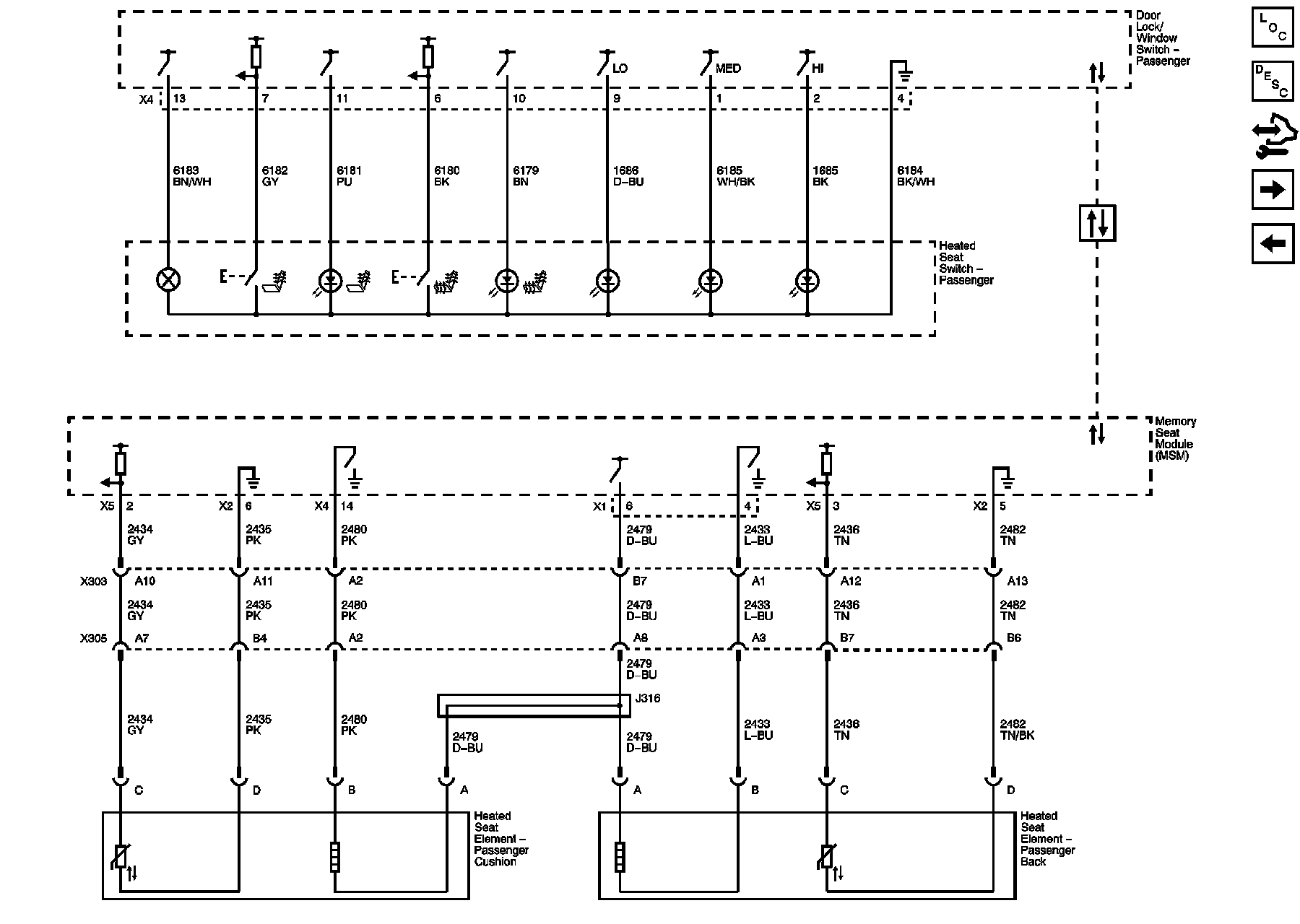

Heated Seat - Passenger (AN3 without KB6)






Heated/Cooled Seat Module Power and Ground (AN3 with KB6)

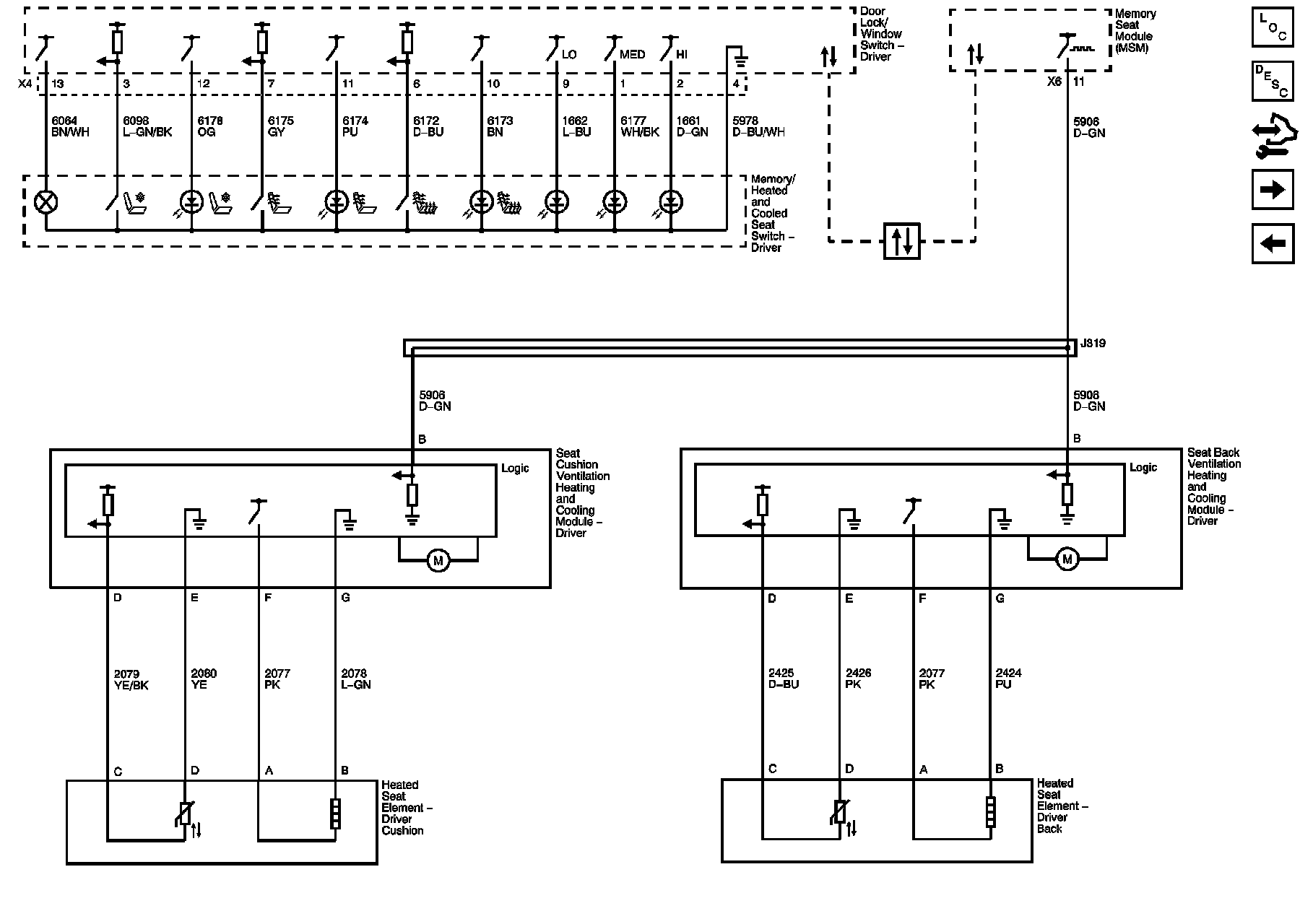

Heated/Cooled Seat - Driver (AN3 with KB6)

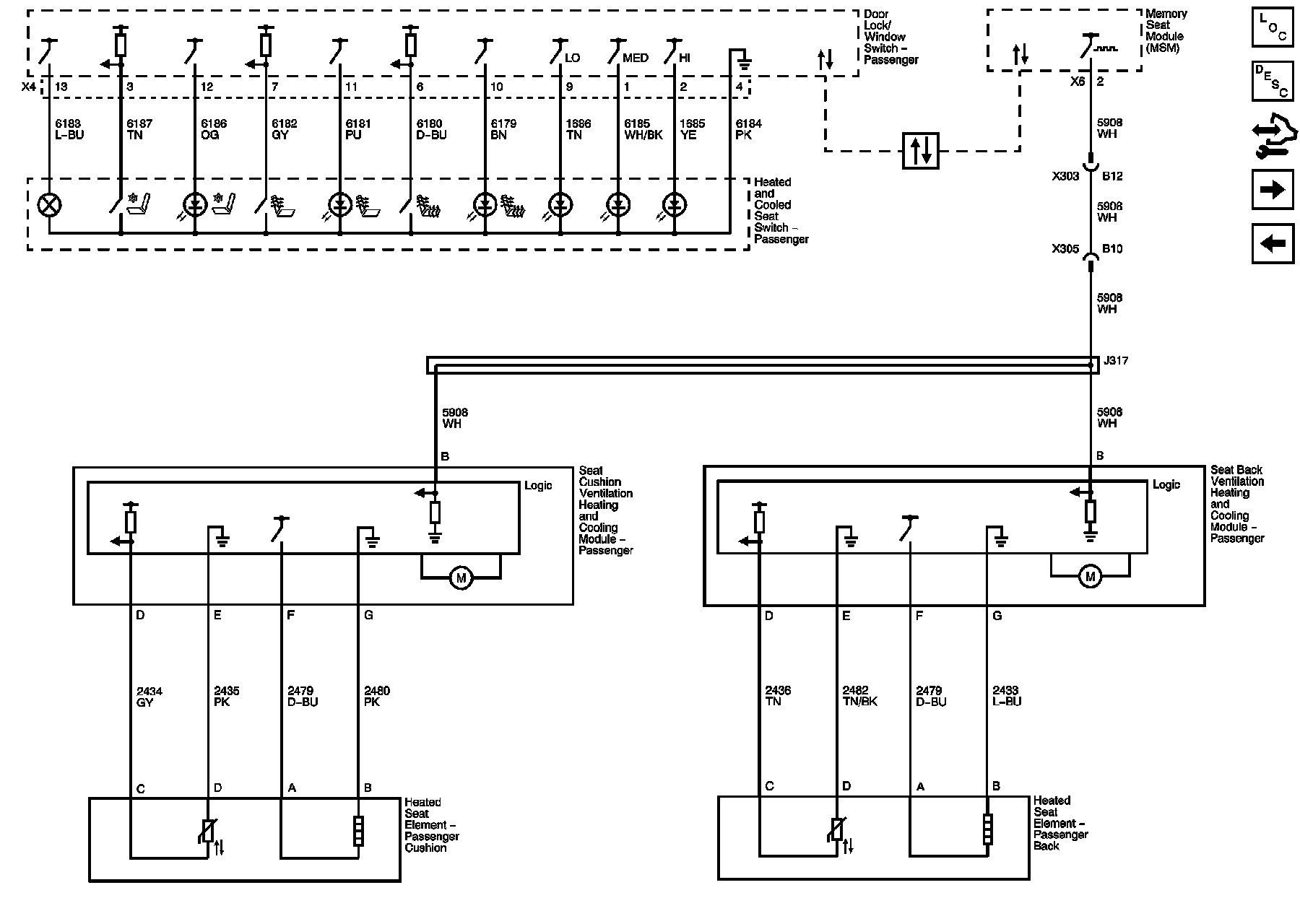

Heated/Cooled Seat - Passenger (AN3 with KB6)

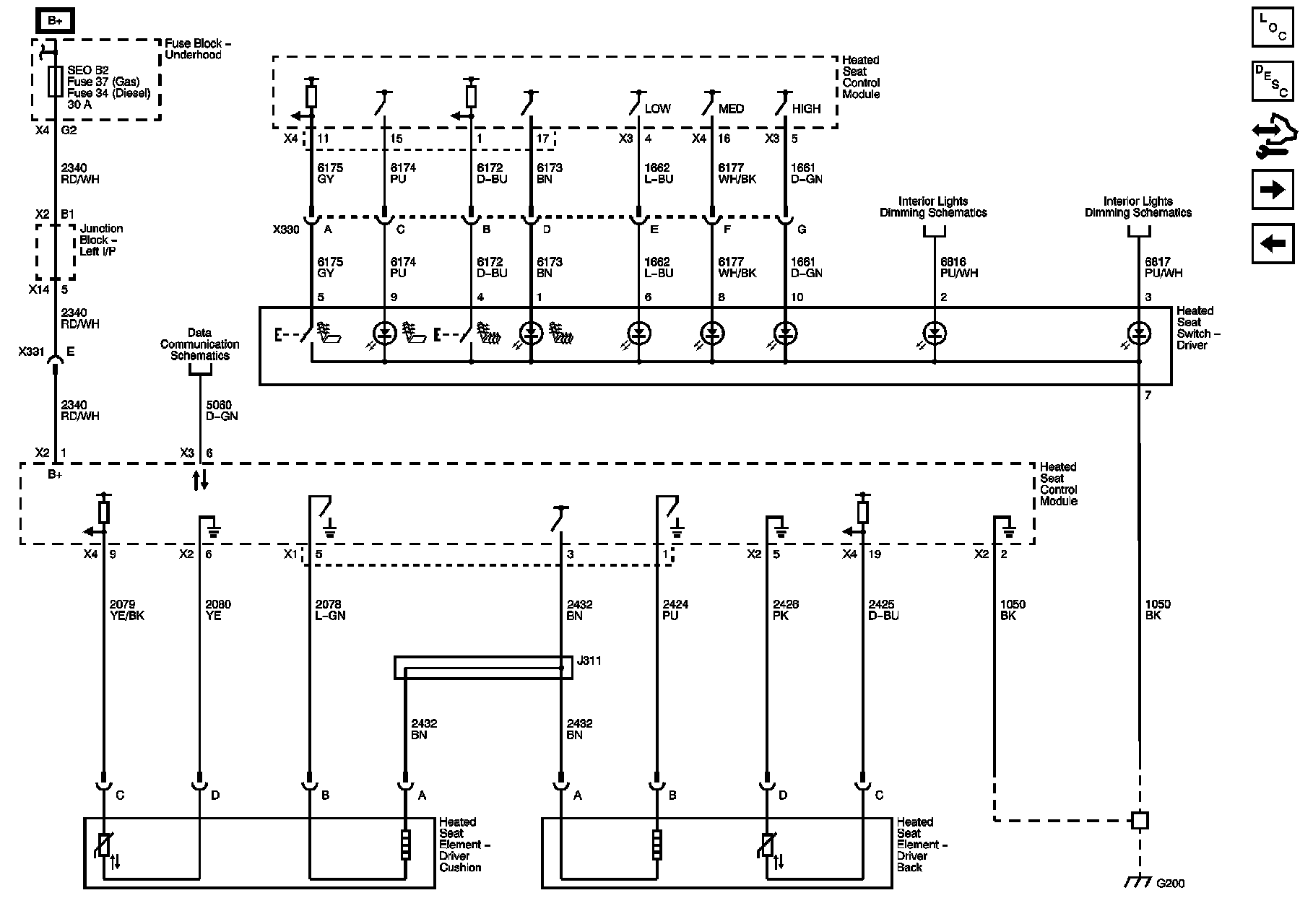

Heated Seat - Driver (SPO Heated Seats)

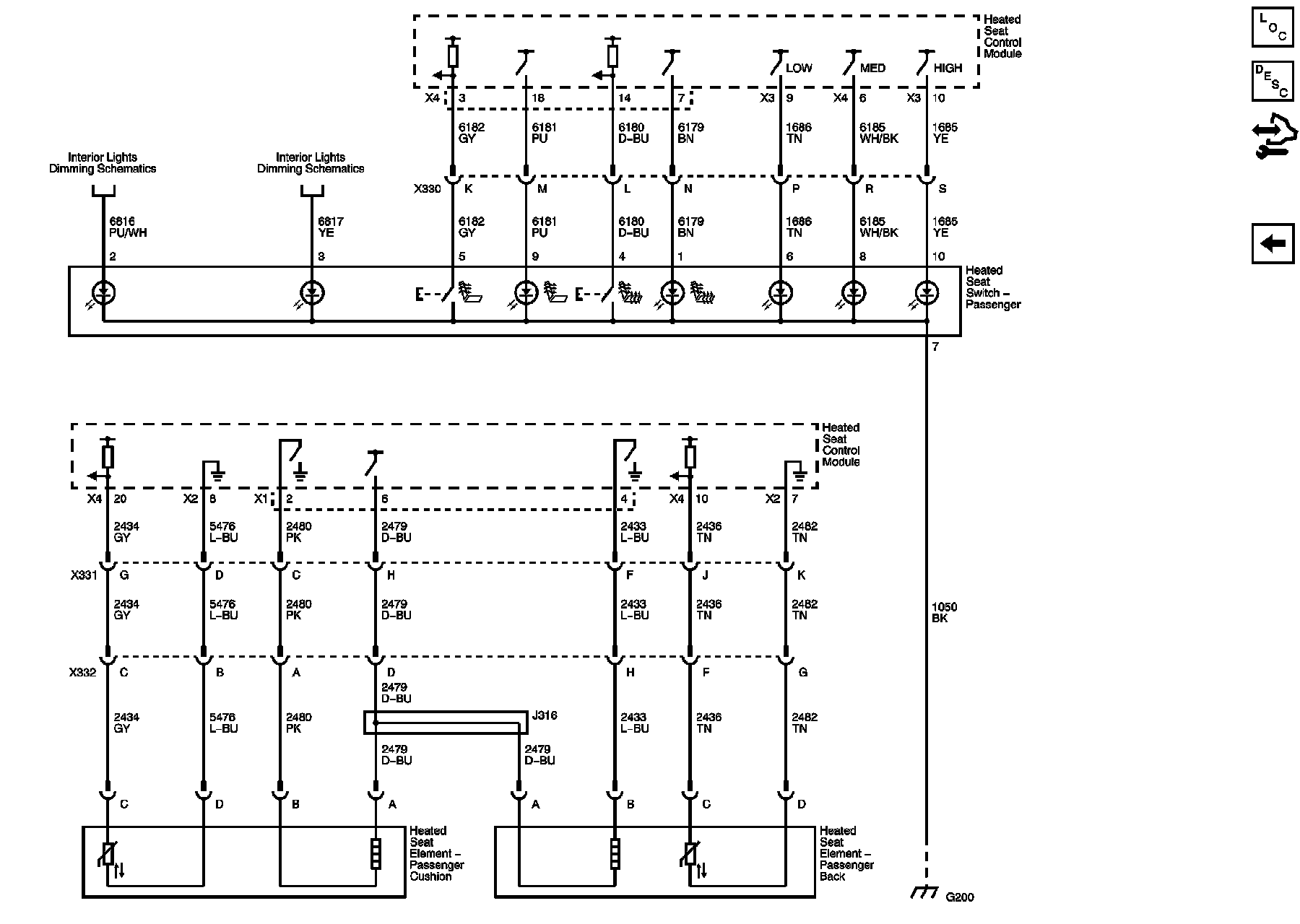

Heated Seat - Passenger (SPO Heated Seats)
