Silverado 1500 4WD V6-4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Take-Off
Power Take-Off
Power Take-Off (PTO) Schematics
Switch Controls

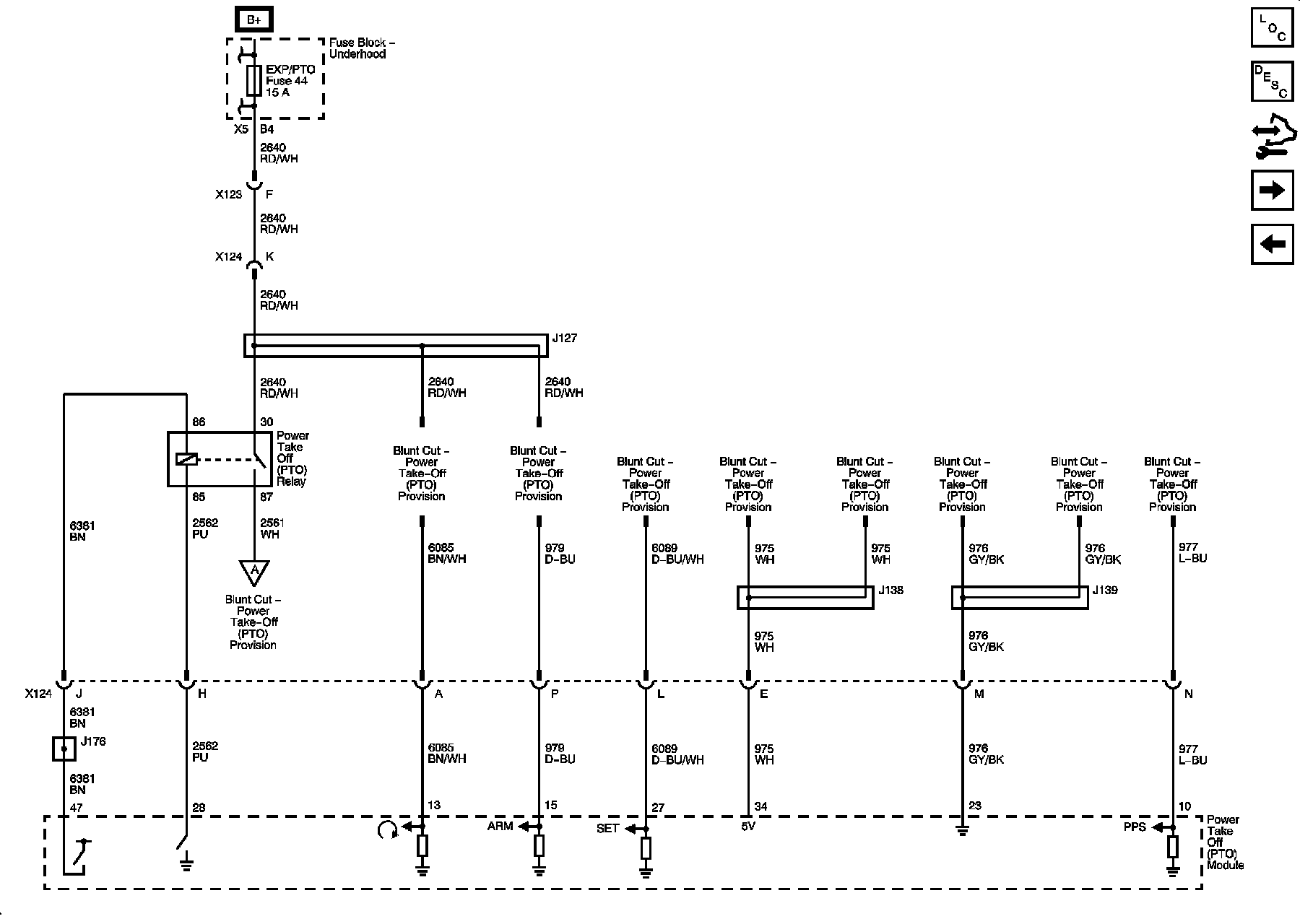

Wiring Provisions (1 of 2)

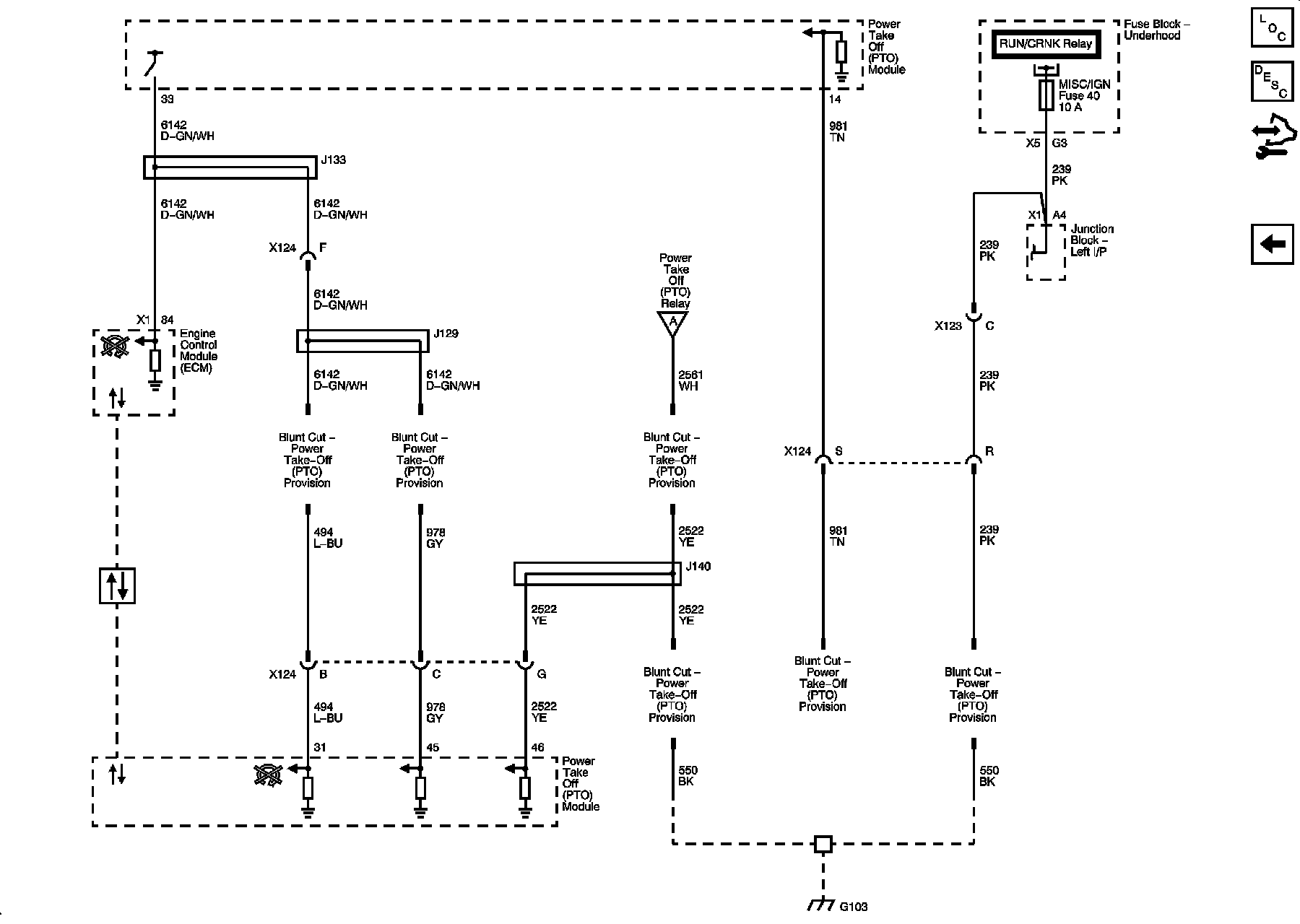

Wiring Provisions (2 of 2)
