HVAC - Manual




HVAC Schematics

Module Power, Ground, Serial Data, and Blower Controls






Mode and Temperature Controls

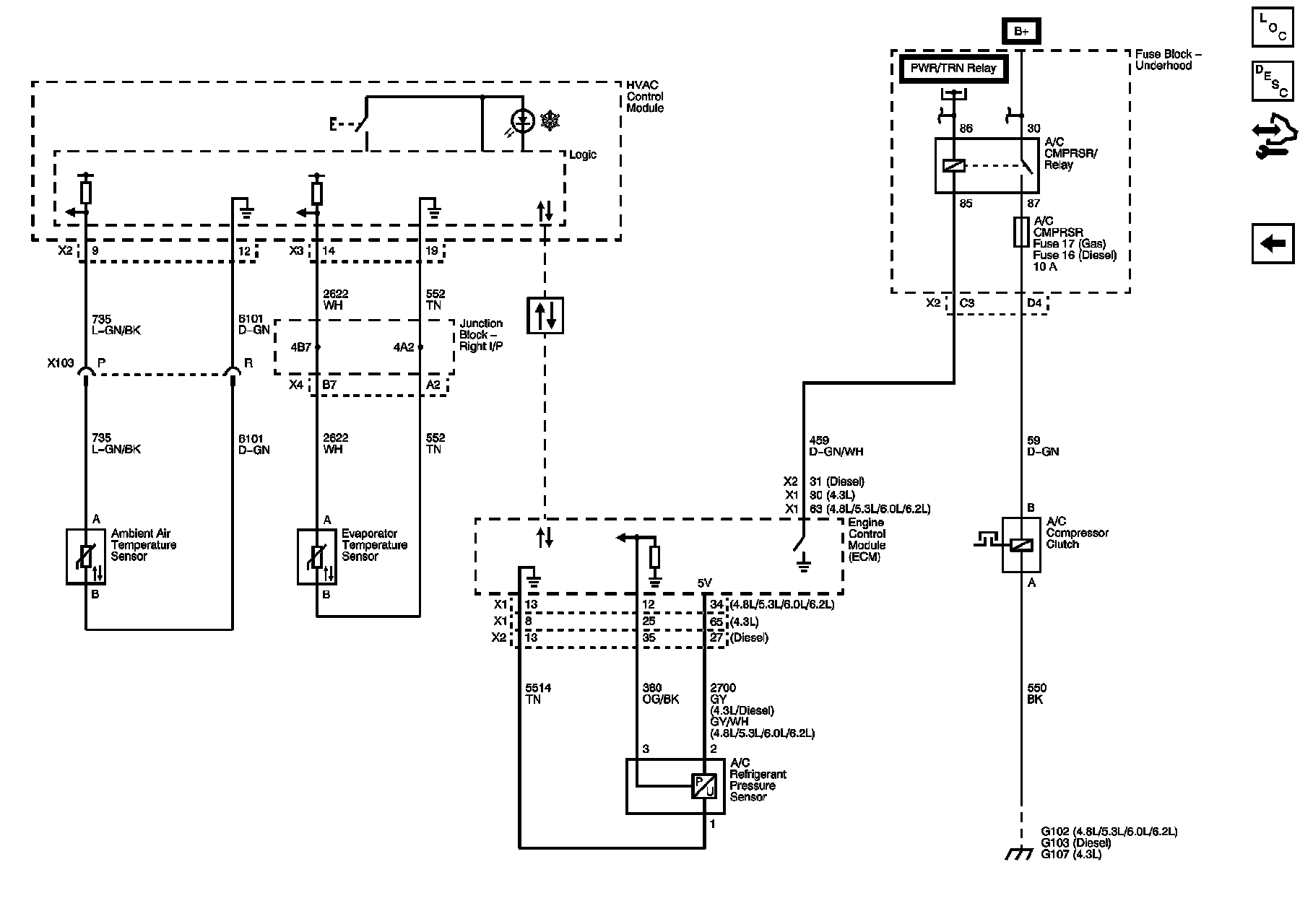

A/C Compressor Controls (C67)
