6L45/6L50/6L80/6L90 - Automatic Transmission




Automatic Transmission Controls Schematics

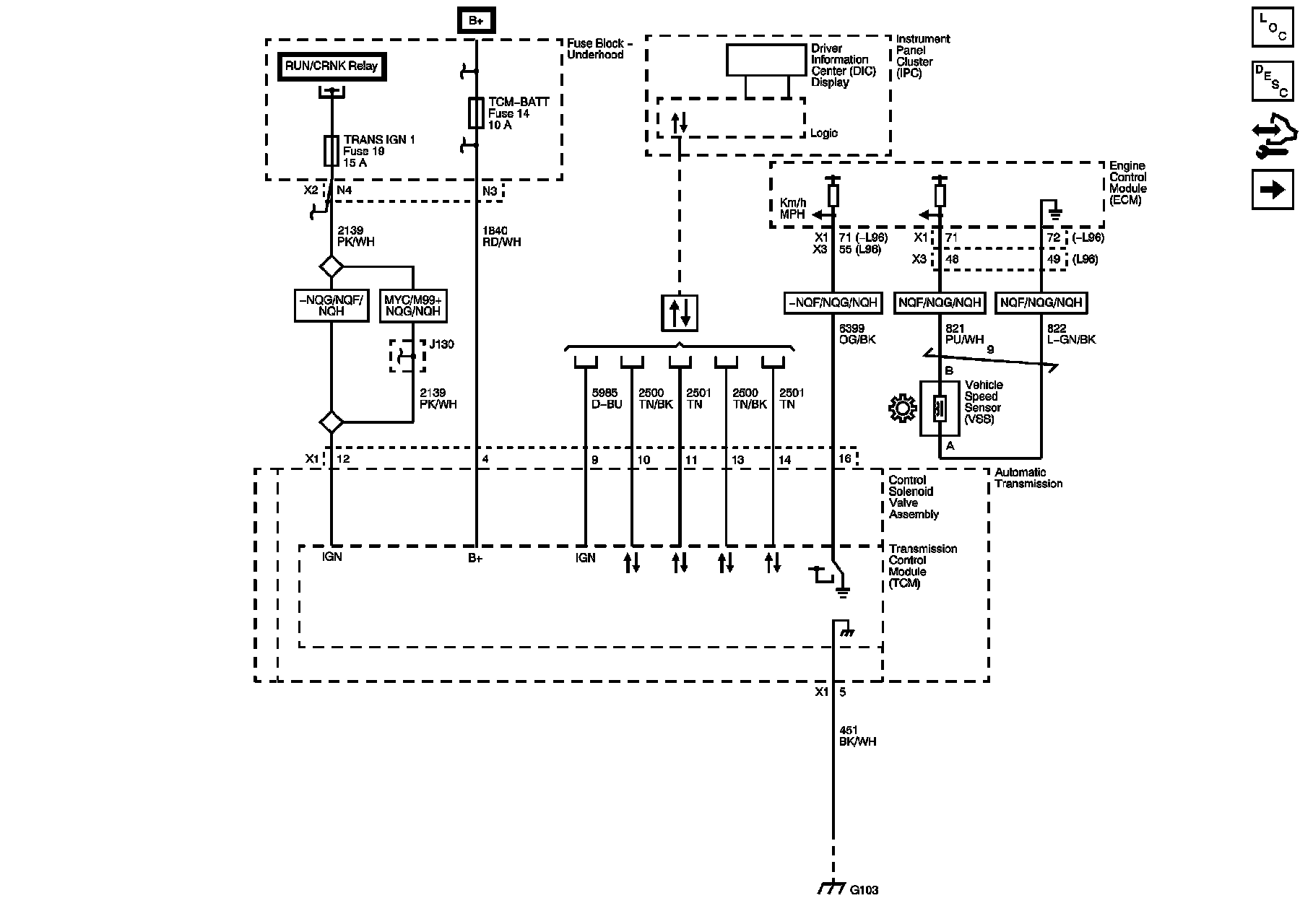

Module Power, Ground, Data Communication and MIL

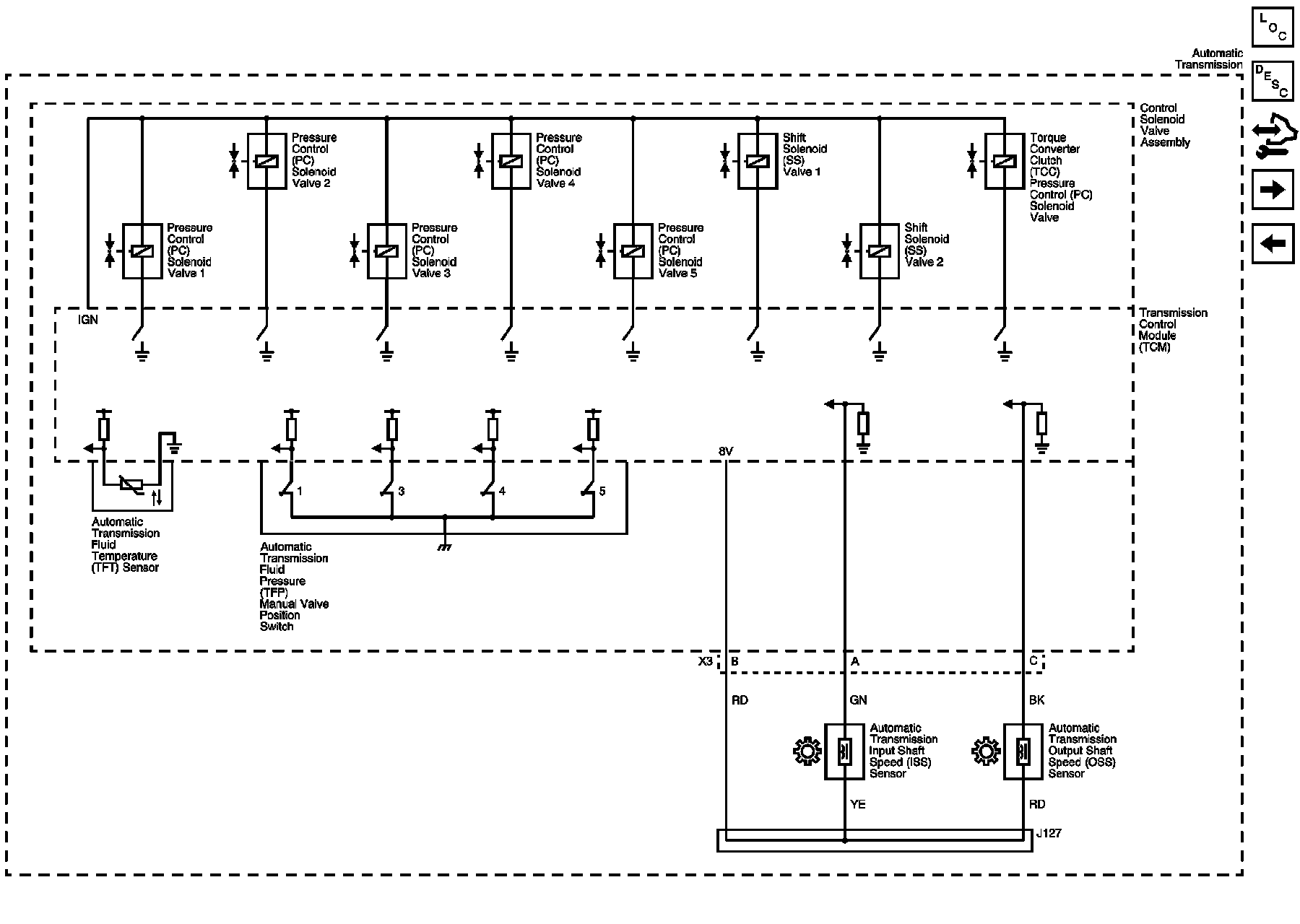

ISS, OSS, TFP, and TFT Sensors, Pressure and Shift Controls






IMS and Tap Up/Tap Down
