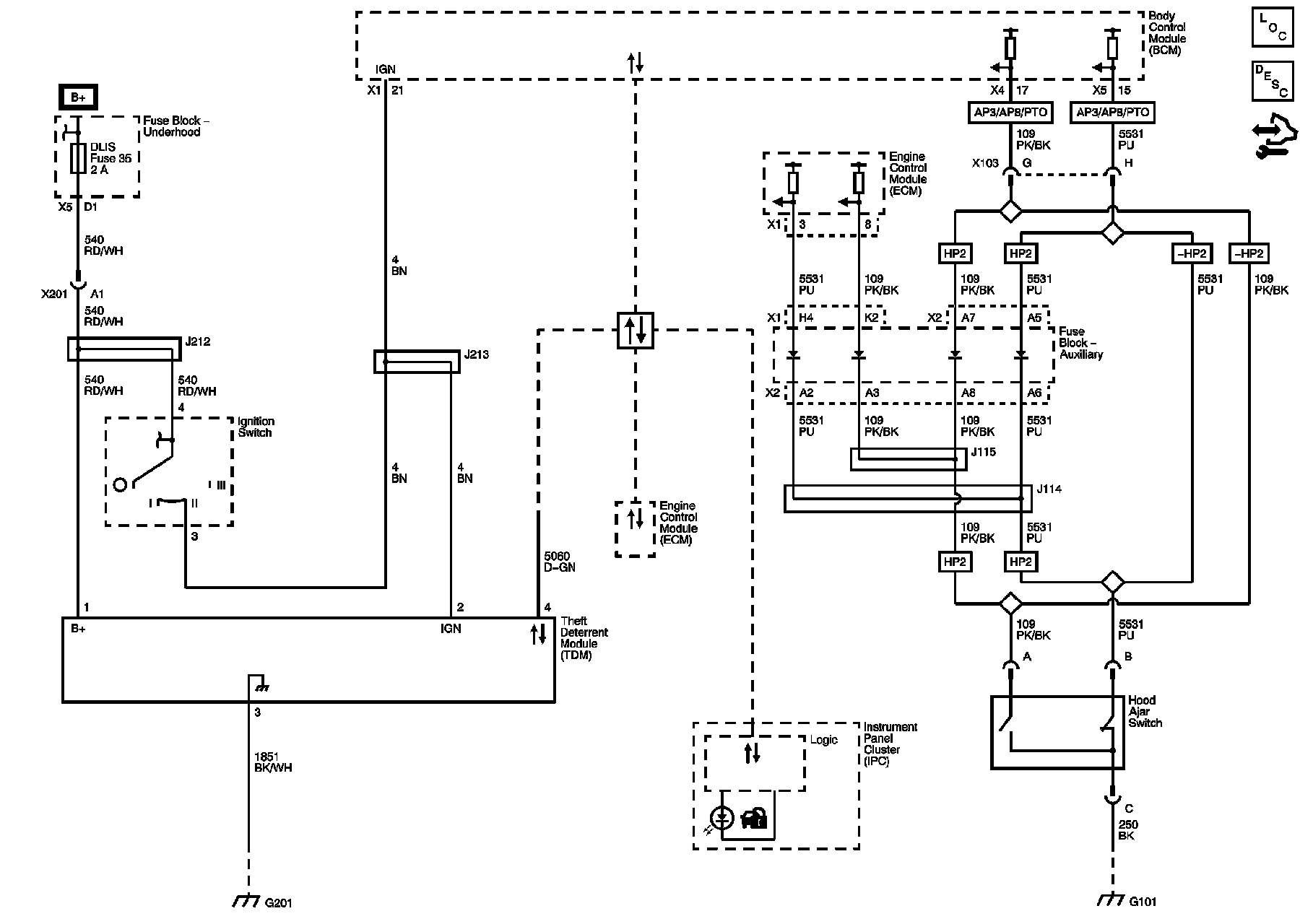

Home >> Chevrolet >> 2013 >> Silverado 1500 4WD V6-4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Immobilizer Schematics
