Fuel Pump Control Unit
Fuel Pump Control Unit

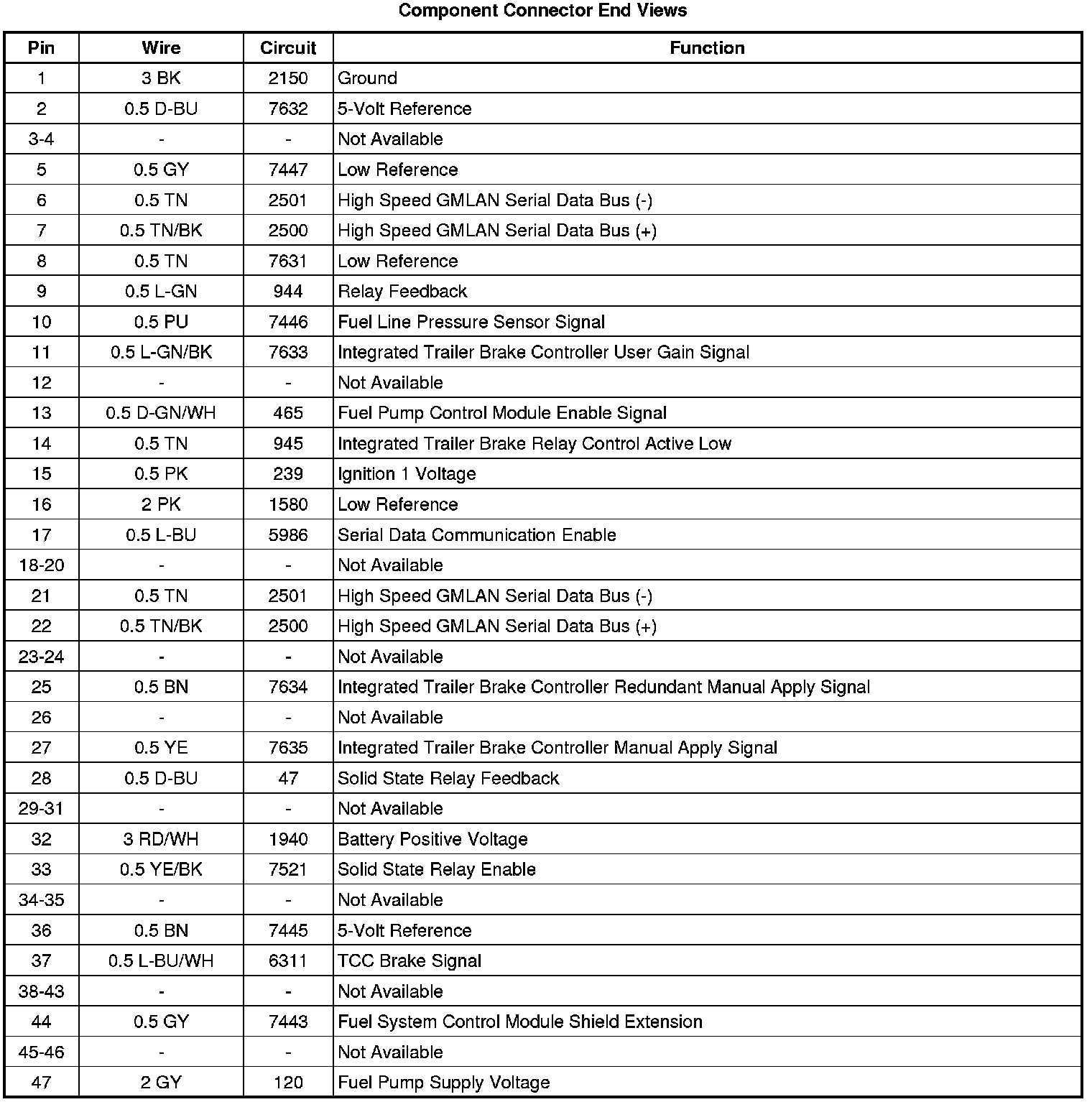

Component Connector End Views

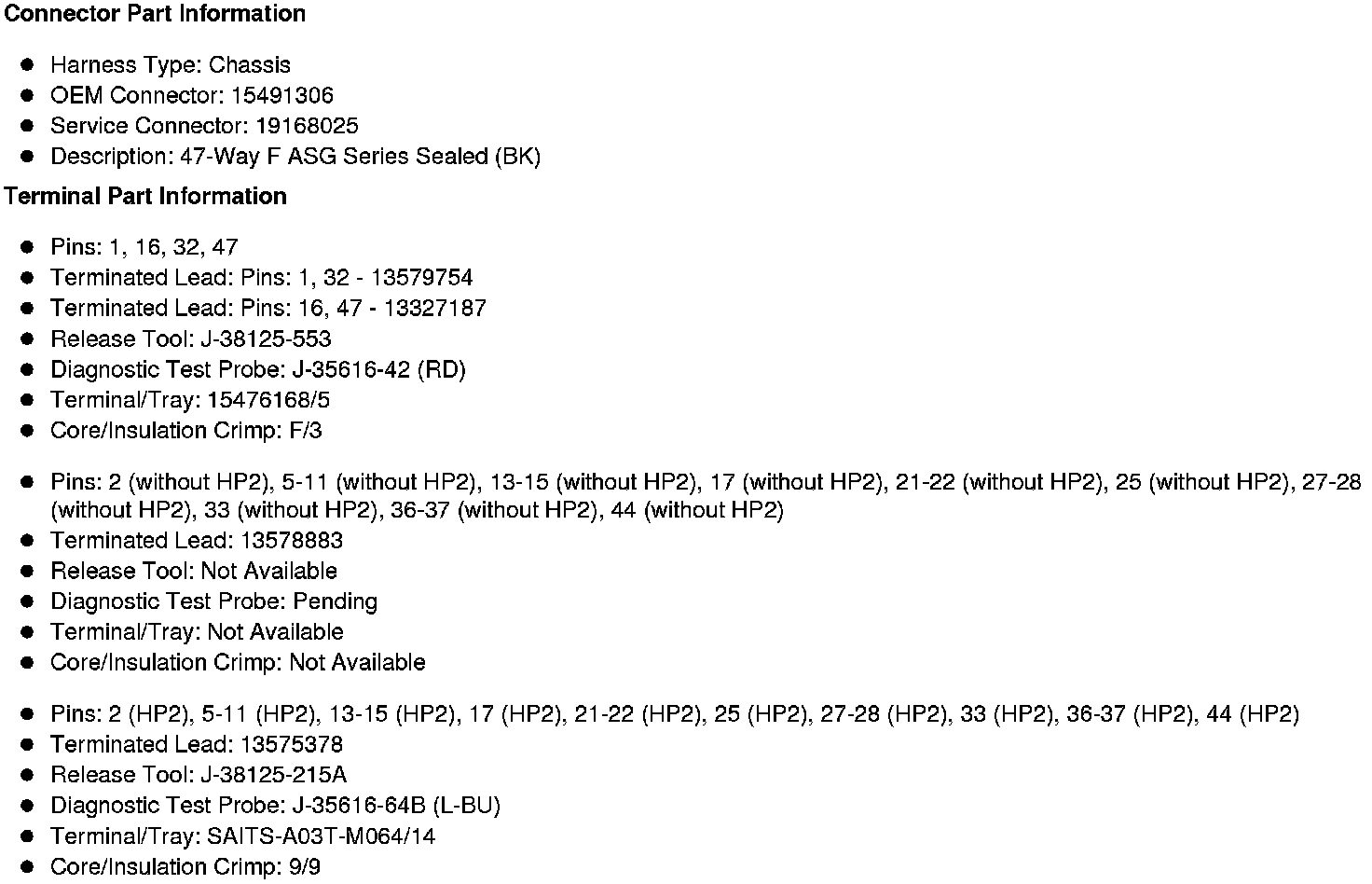

Fuel Pump/
Trailer Brake Control Module
(Gas with JL1 and except LU3, or LY6)
