Right Rear Door Harness to Body Harness (Extended Cab)
Right Rear Door Harness to Body Harness (Extended Cab)

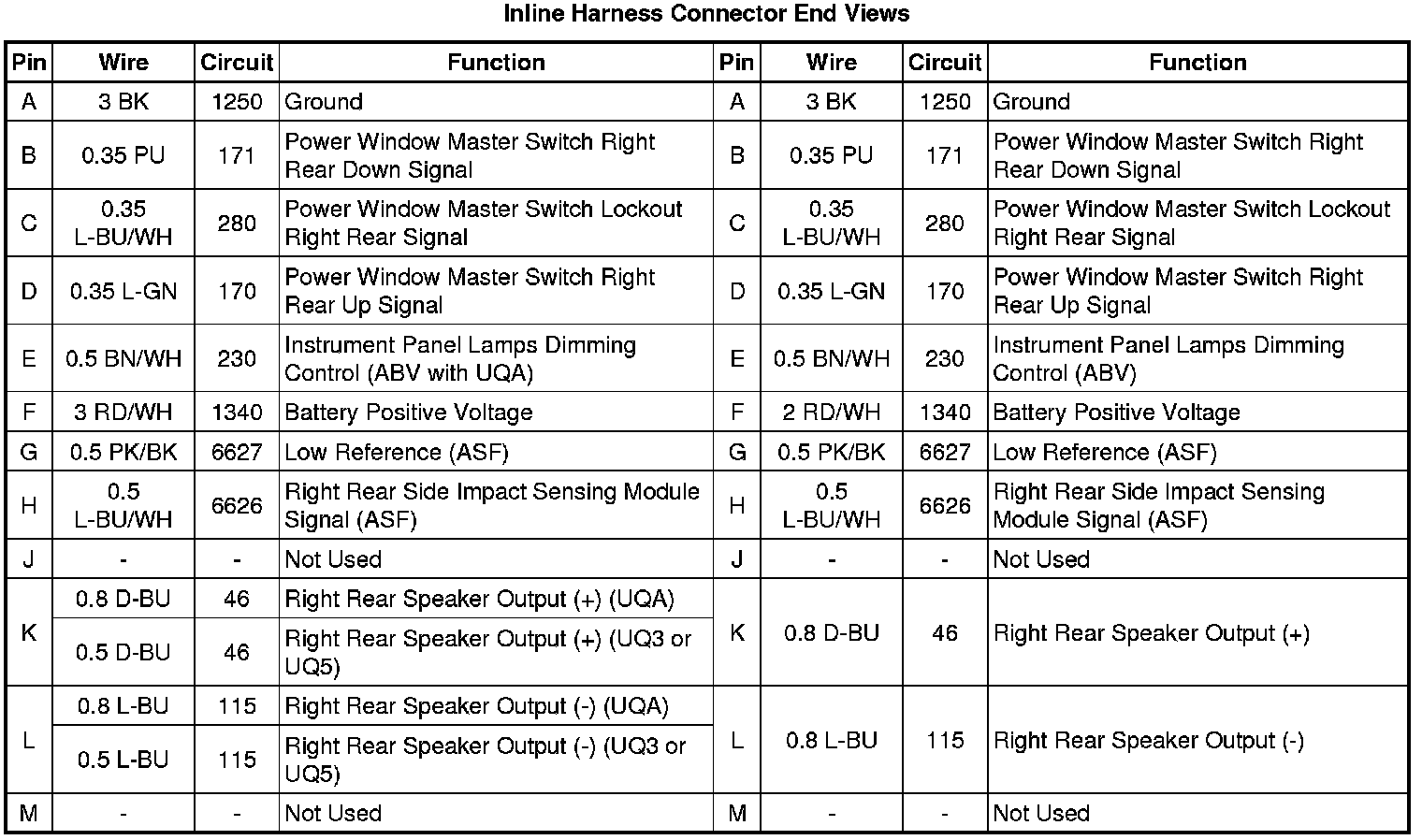

Inline Harness Connector End Views

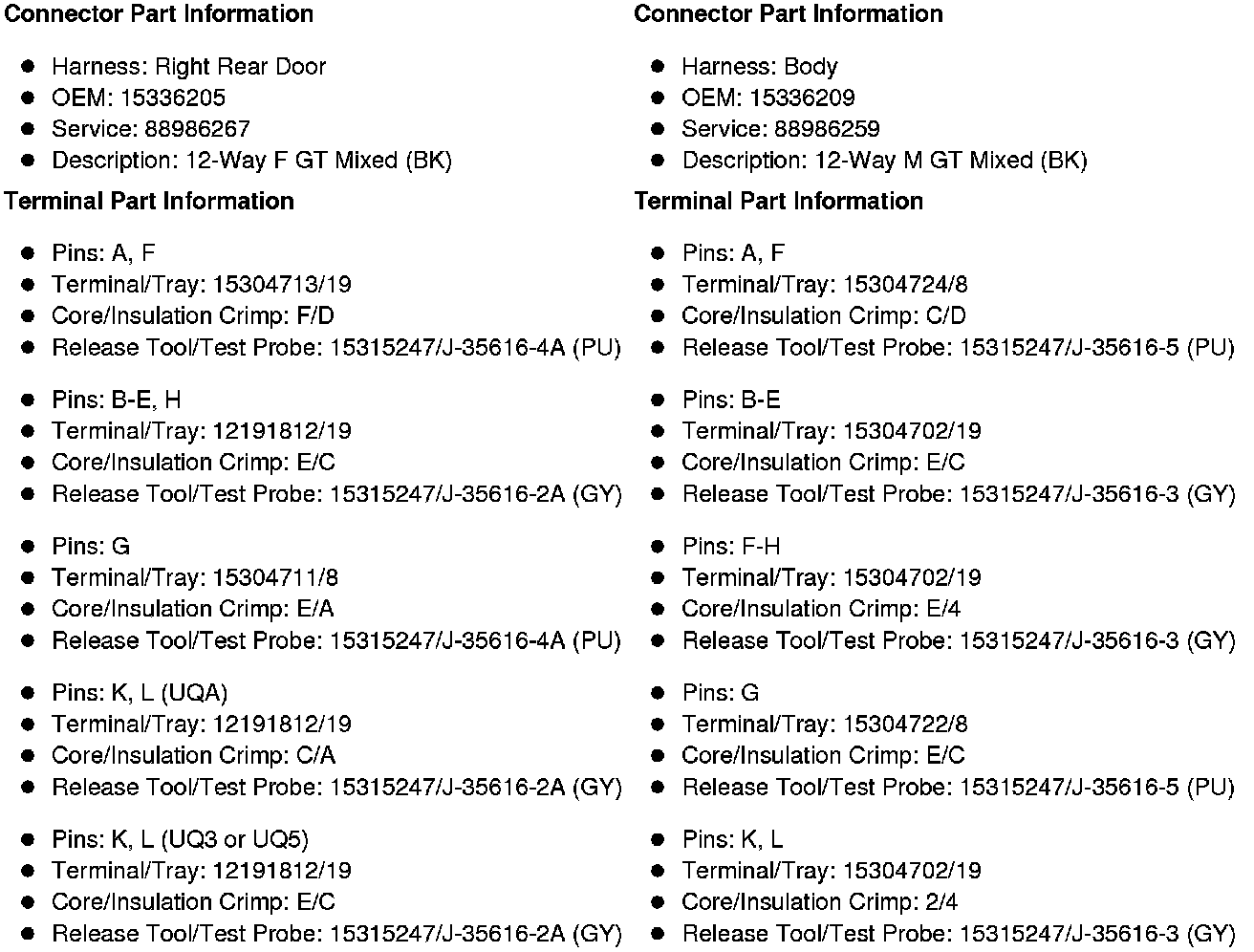

X800 Right Rear Door Harness to Body Harness (Extended Cab)
