X600
X600

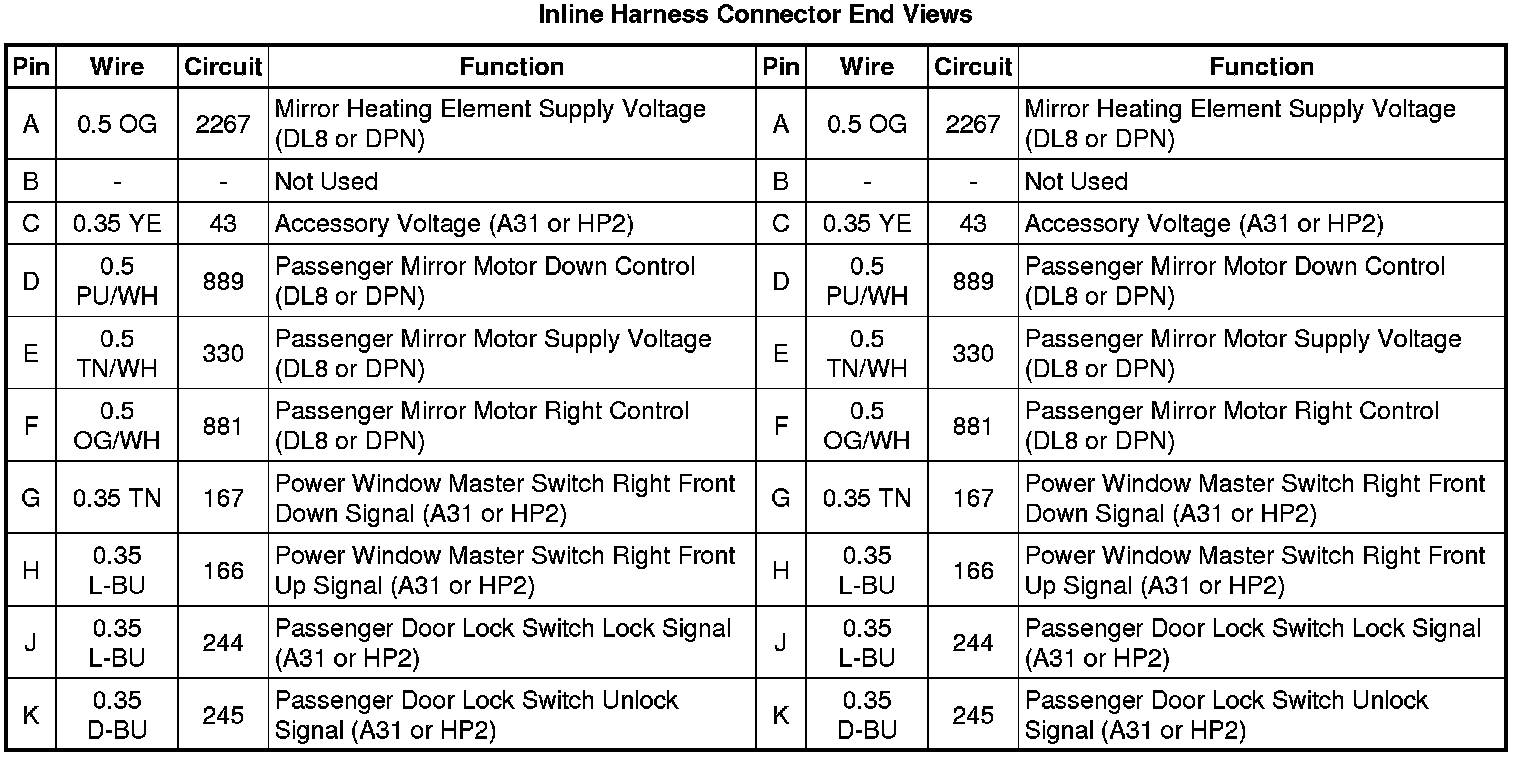

Inline Harness Connector End Views
X600 Right Front Door Harness to Body Harness (YE9 or HP2, without AN3 or DL3)
