X501
X501

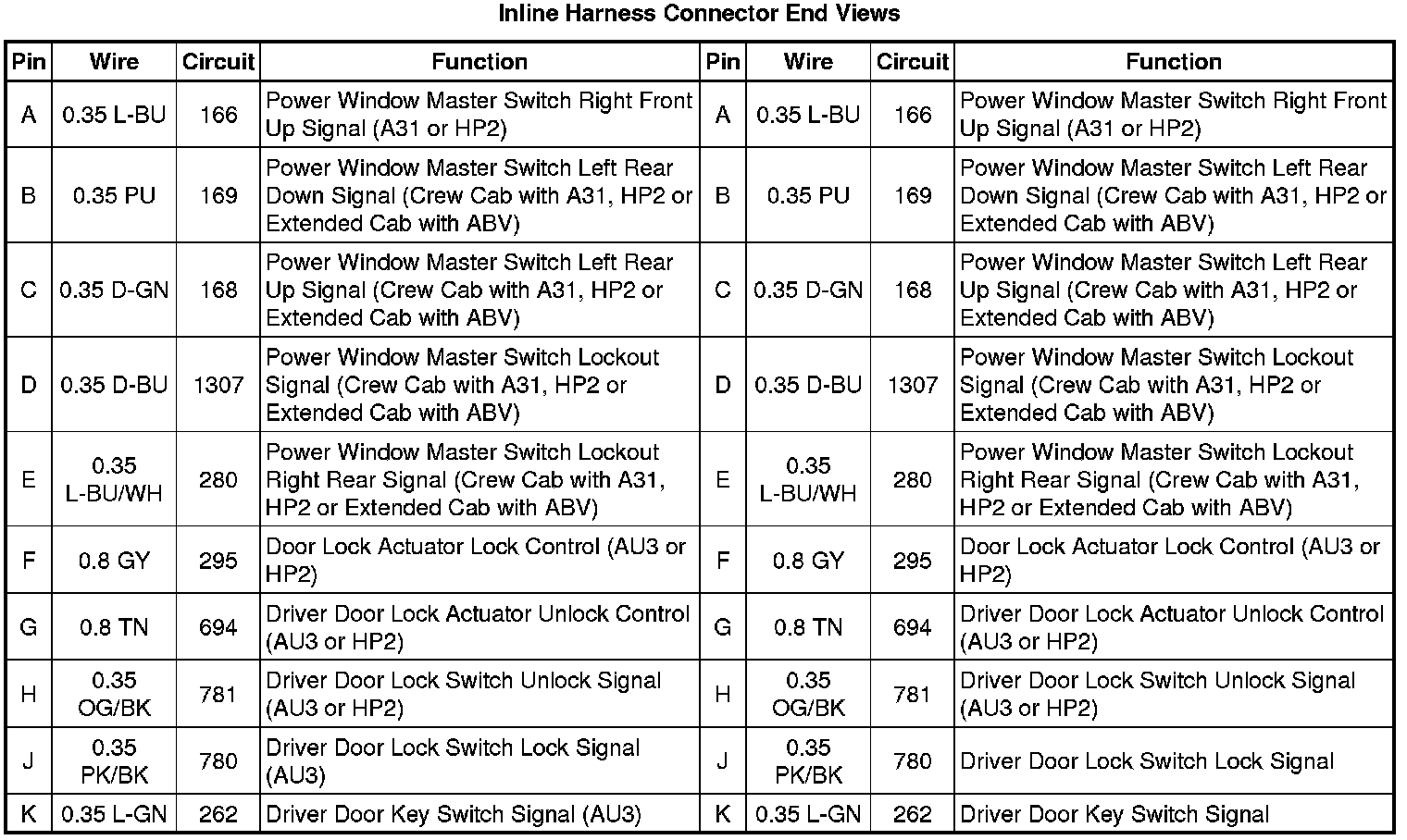

Inline Harness Connector End Views

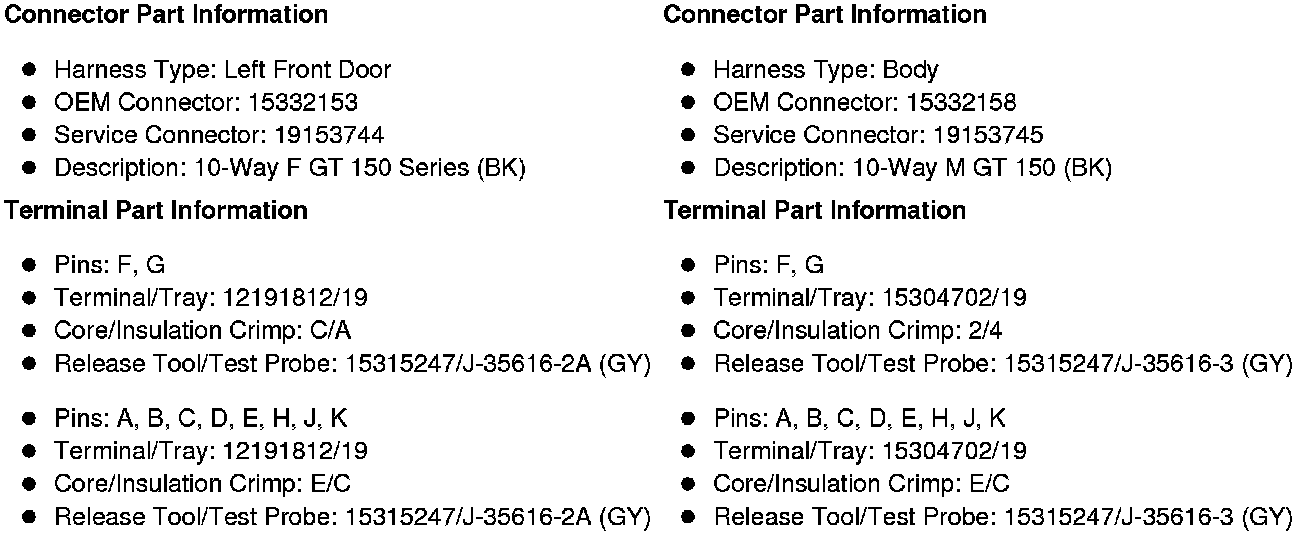

X501 Left Front Door Harness to Body Harness (YE9 or HP2, without AN3 or DL3)
