X395
X395

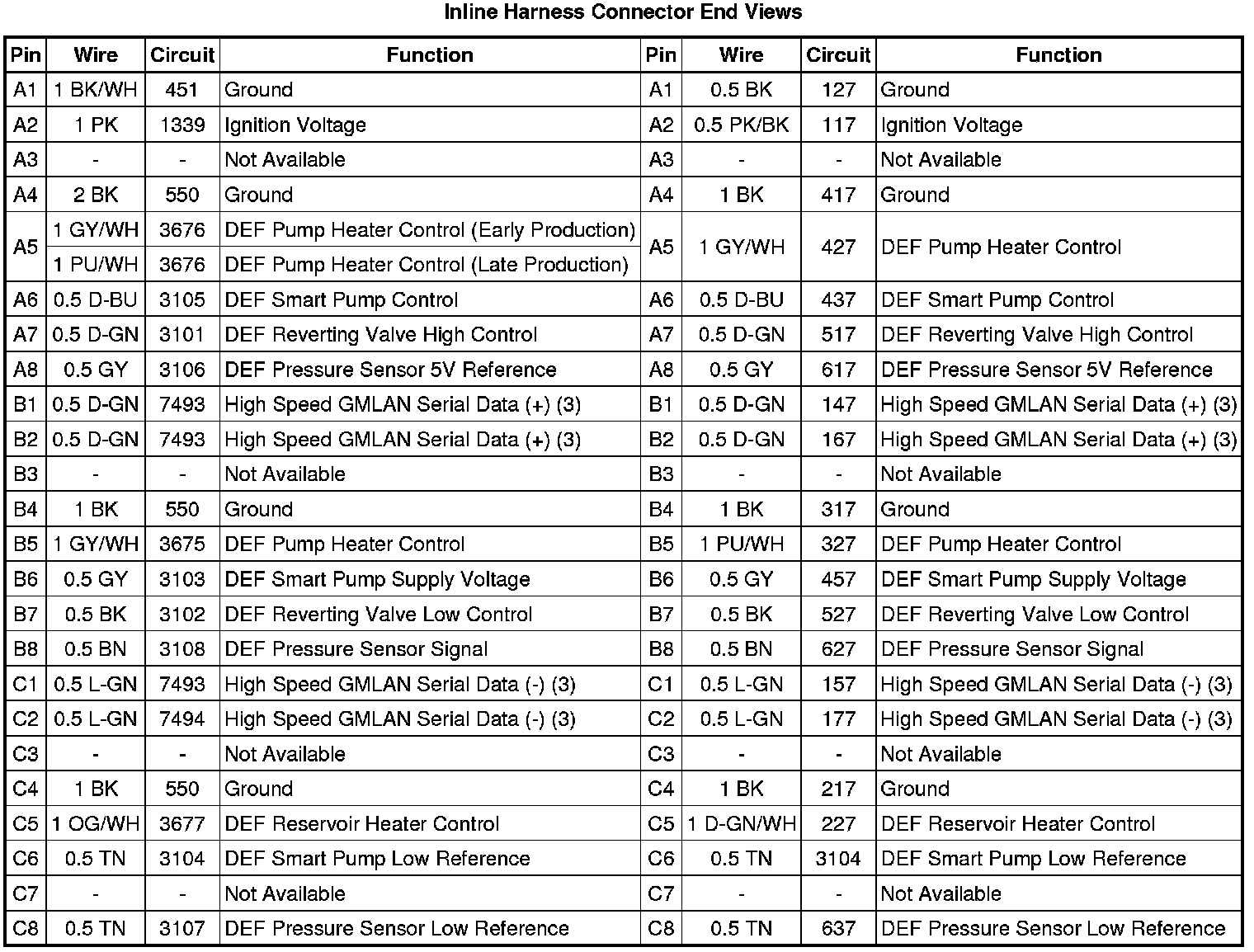

Inline Harness Connector End Views

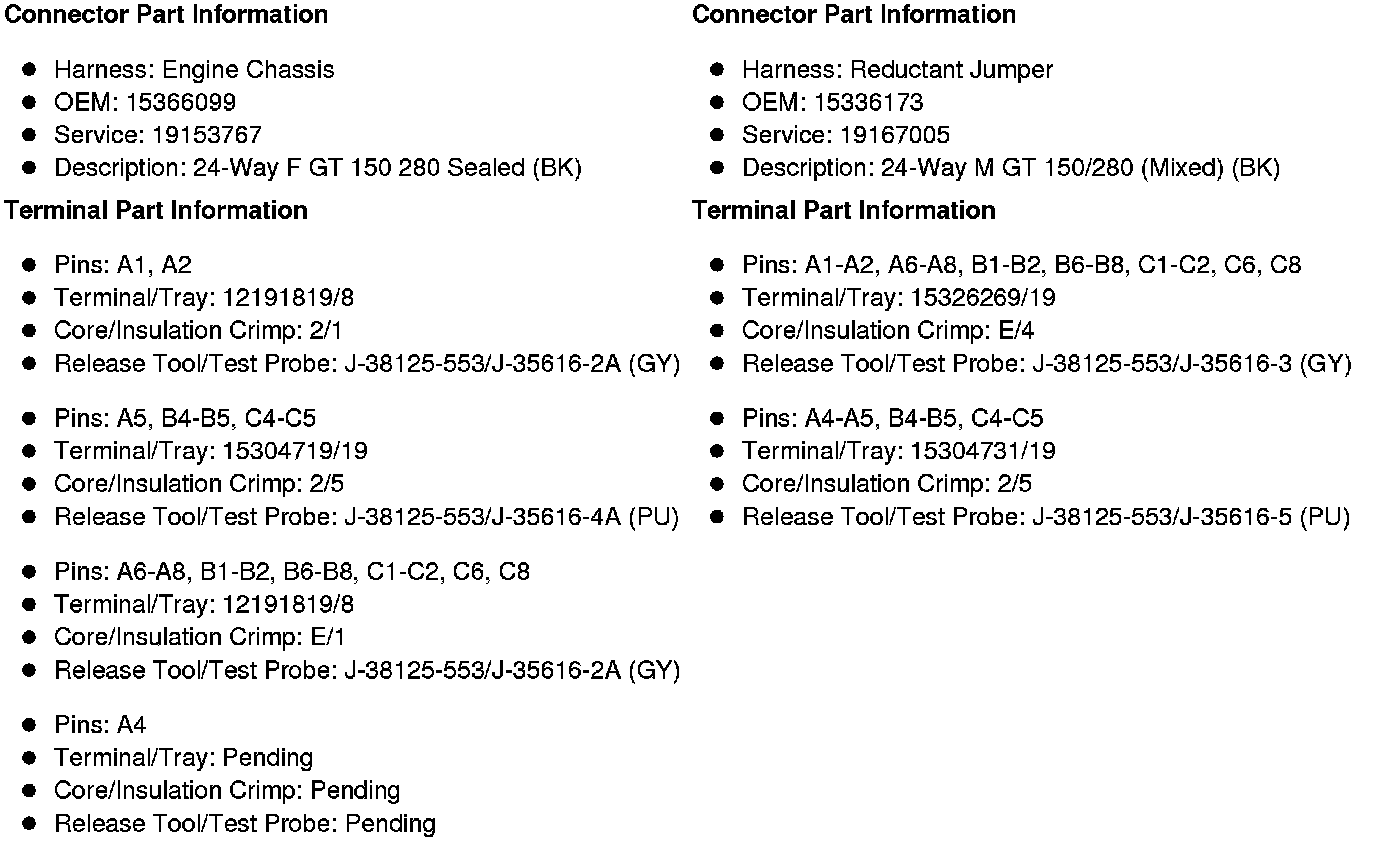

X395 Engine Chassis Harness to Reductant Jumper Harness (Diesel)
