X331
X331

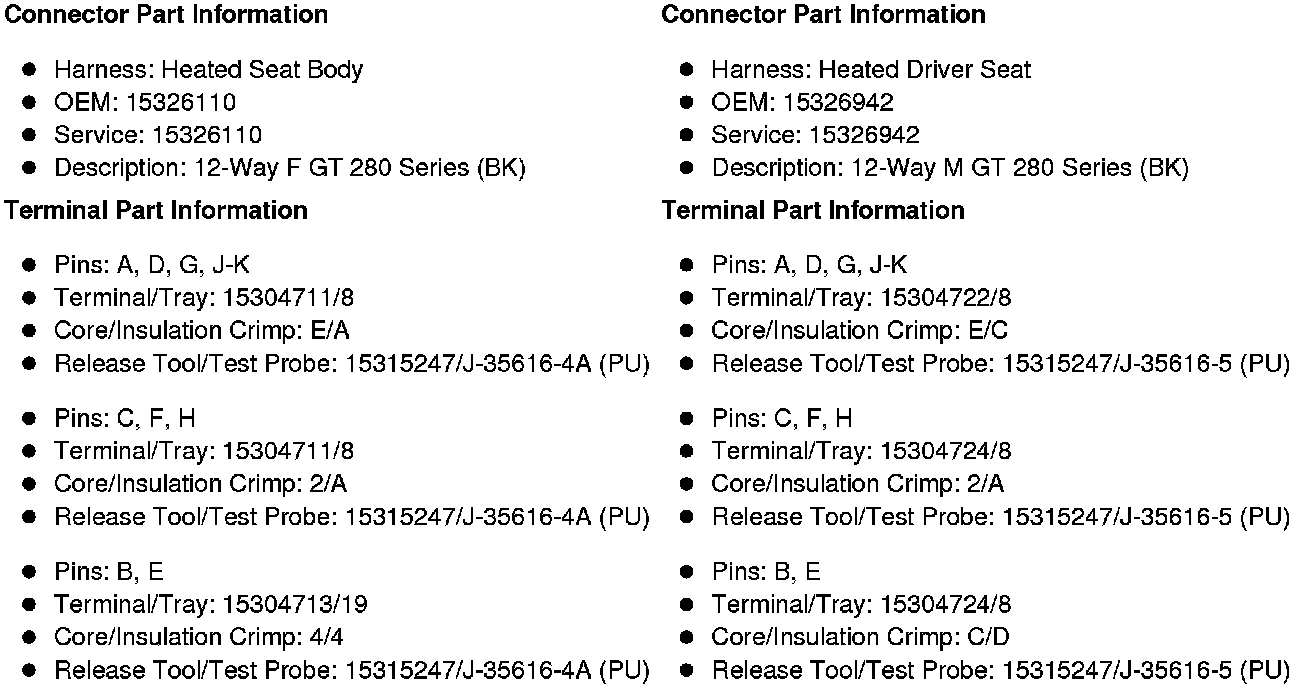

Inline Harness Connector End Views
X331 Heated Seat Body Harness to Heated Driver Seat Harness (SPO Heated Seats)
