X330
X330

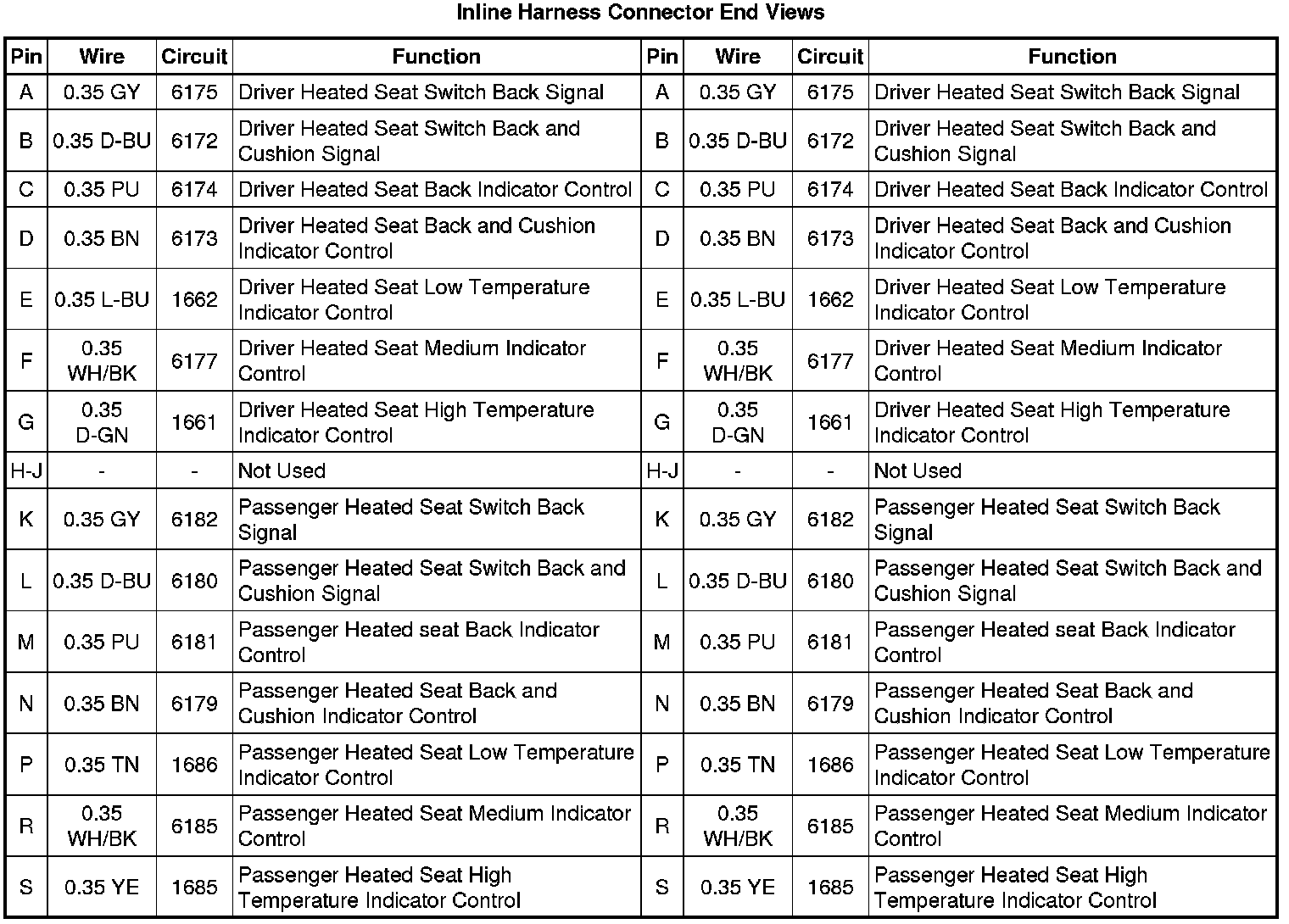

Inline Harness Connector End Views
X330 Heated Seat Body Harness to Heated Driver Seat Harness (SPO Heated Seats)
