X305
>>
Except AN3 or MEX
Except AN3 or MEX

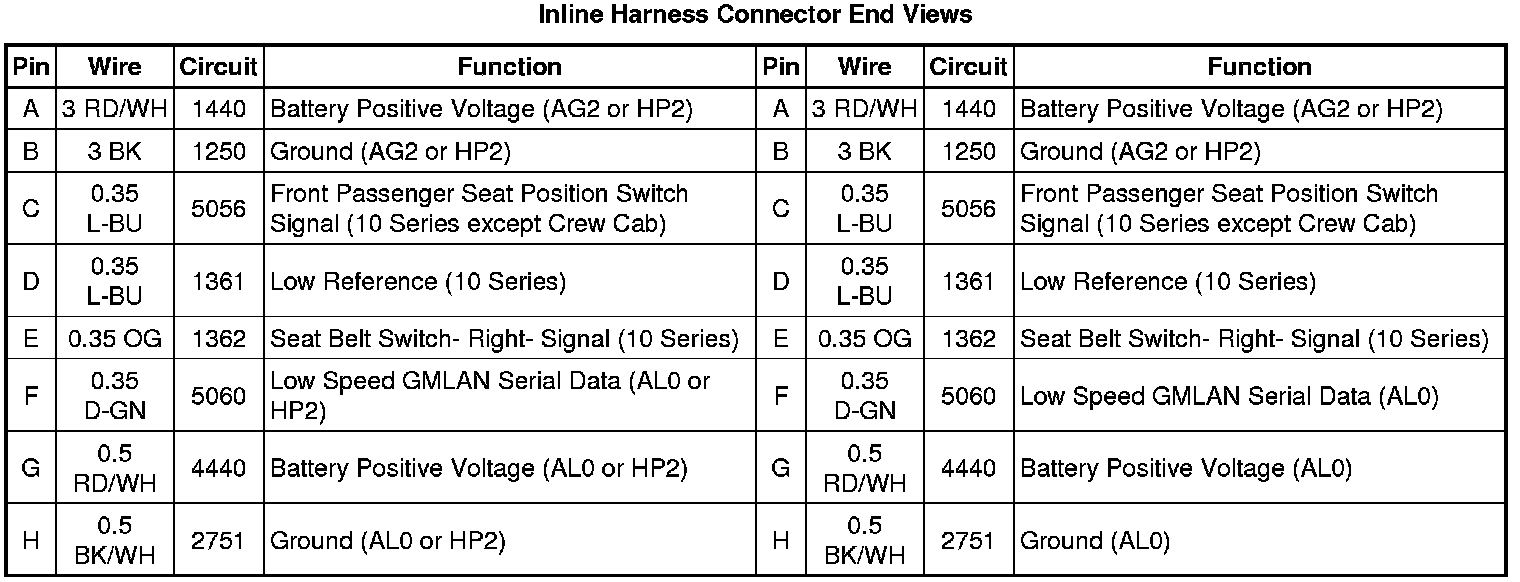

Inline Harness Connector End Views

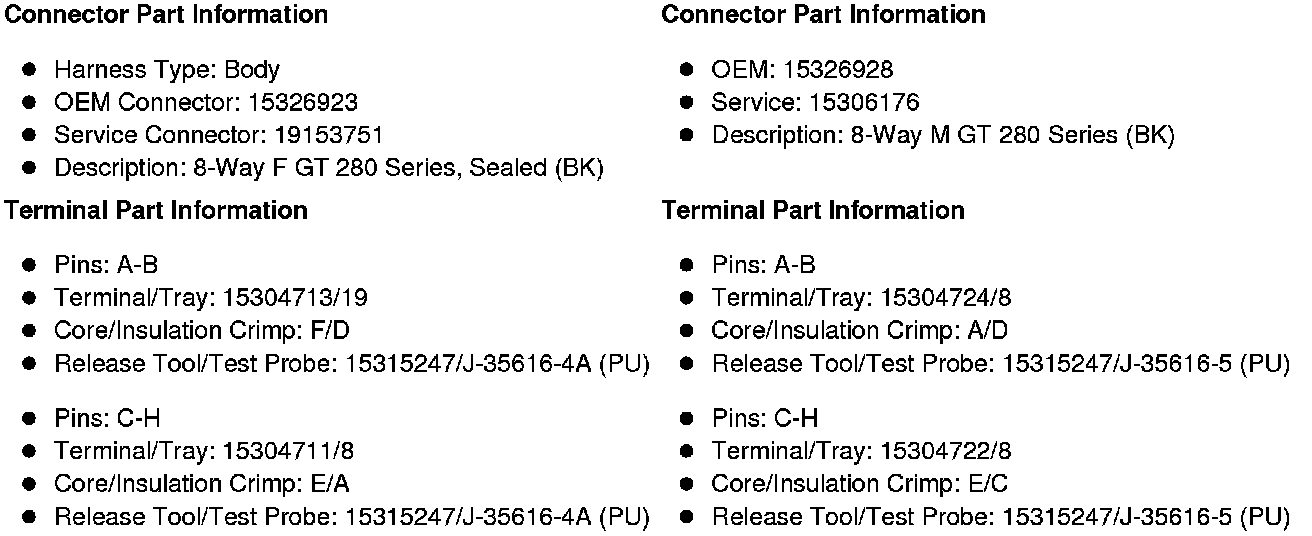

X305 Body Harness to Passenger Seat Harness (except AN3 or MEX)
