X304

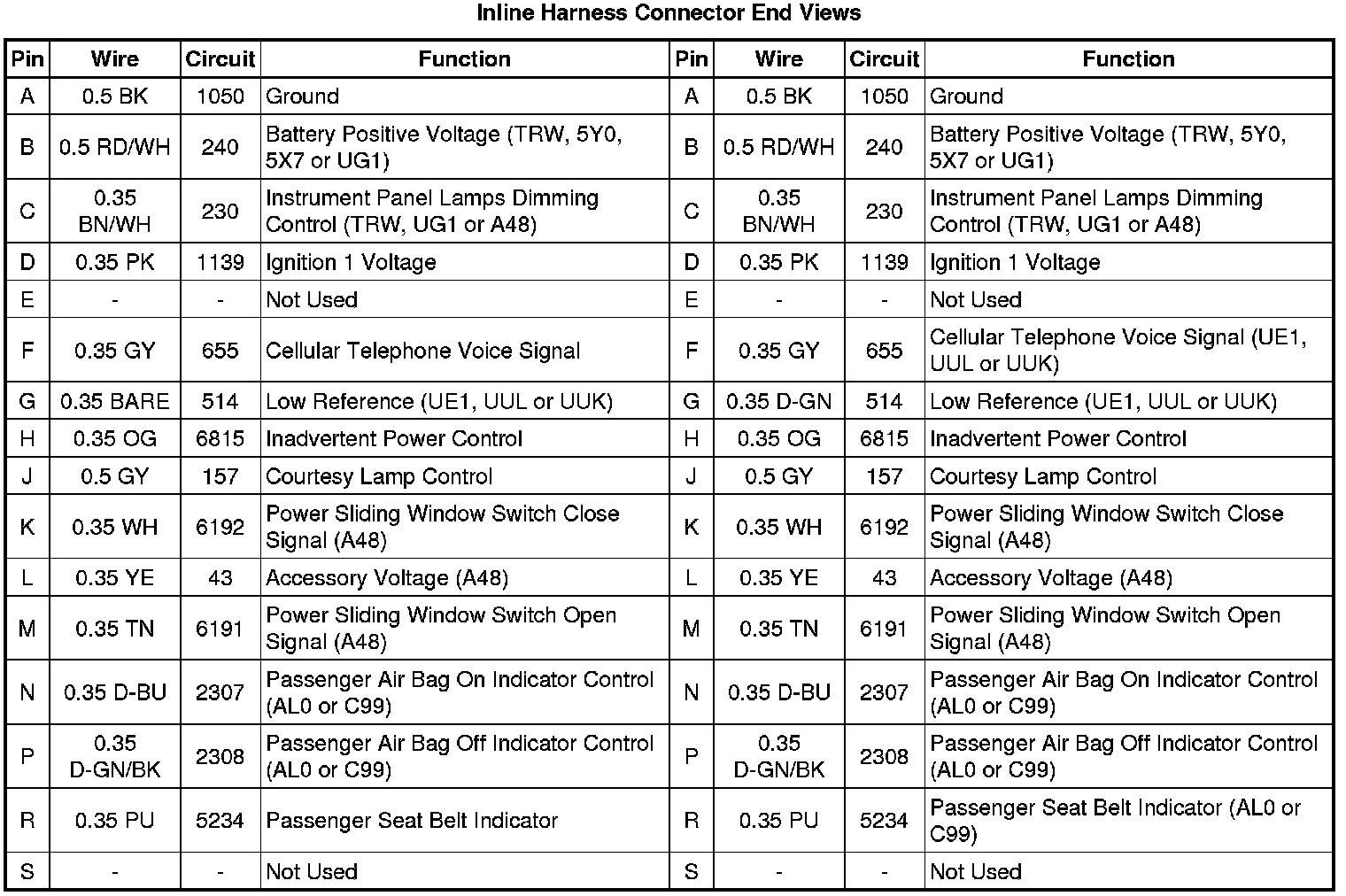

Inline Harness Connector End Views

X304 Headliner Harness to Overhead Console Harness (except MEX)
