X301

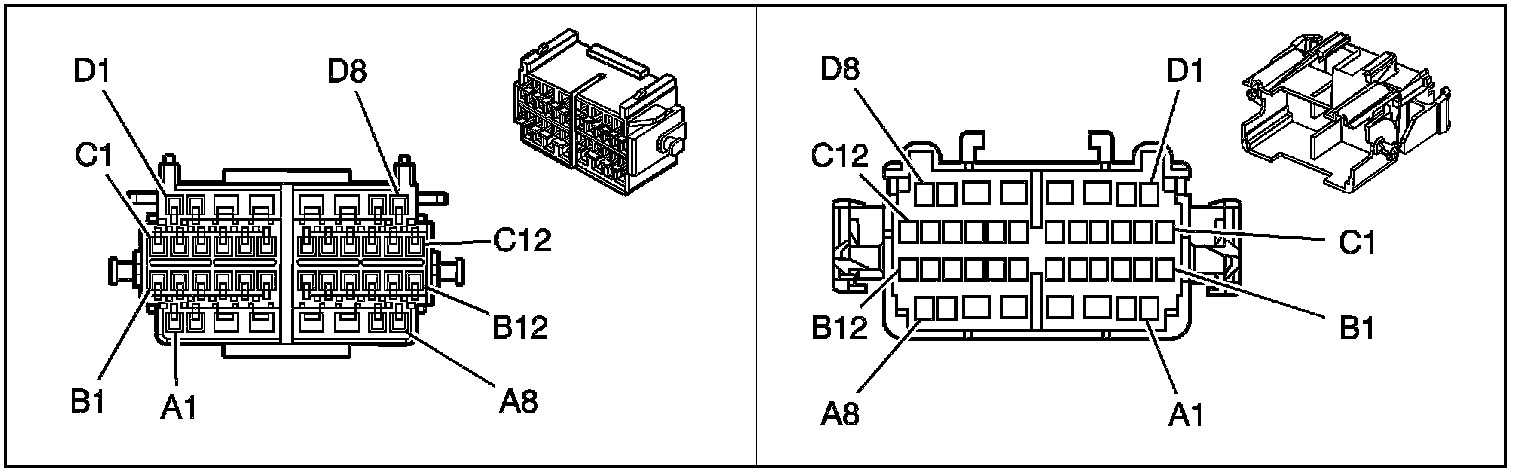

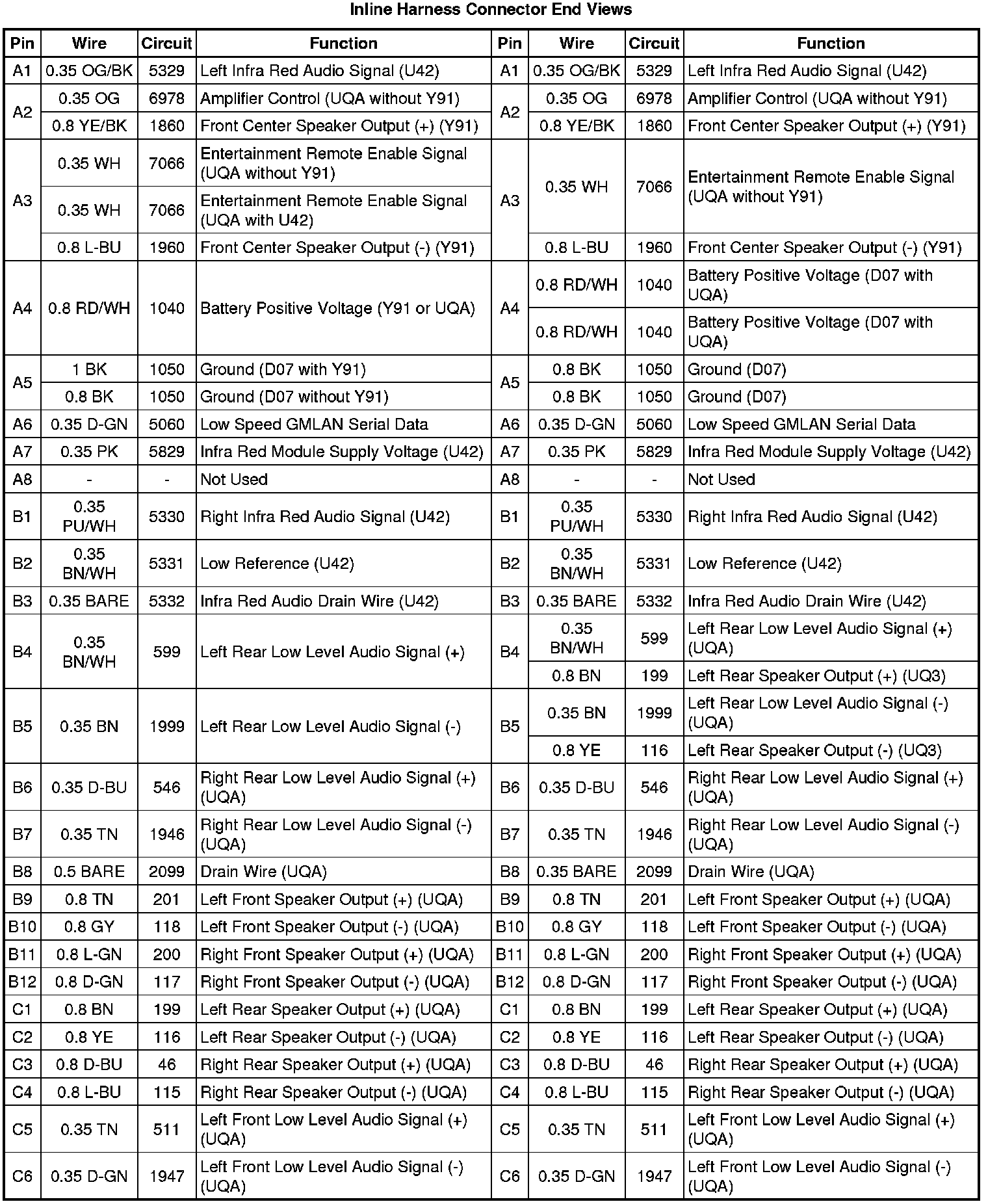

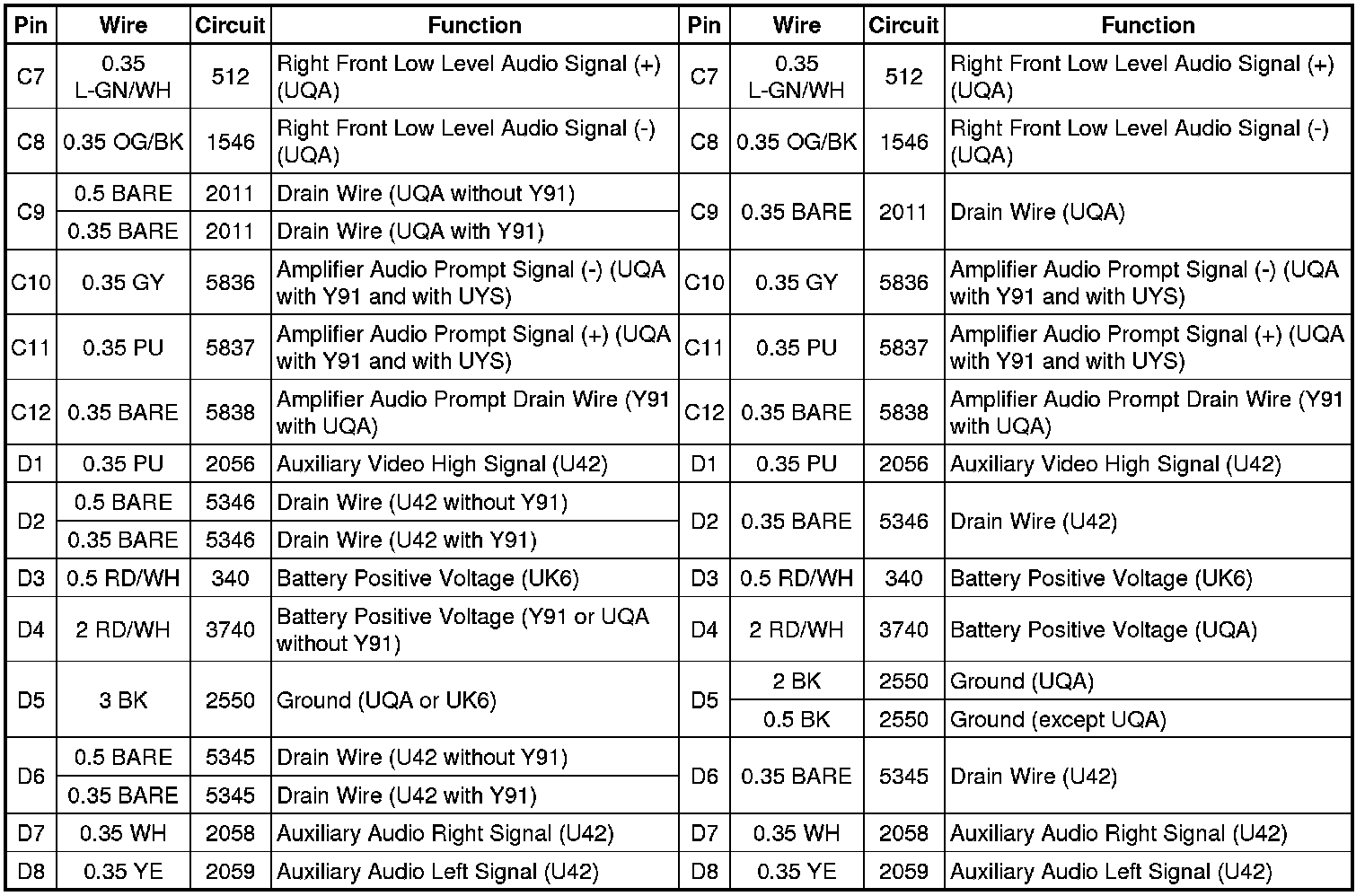

Inline Harness Connector End Views

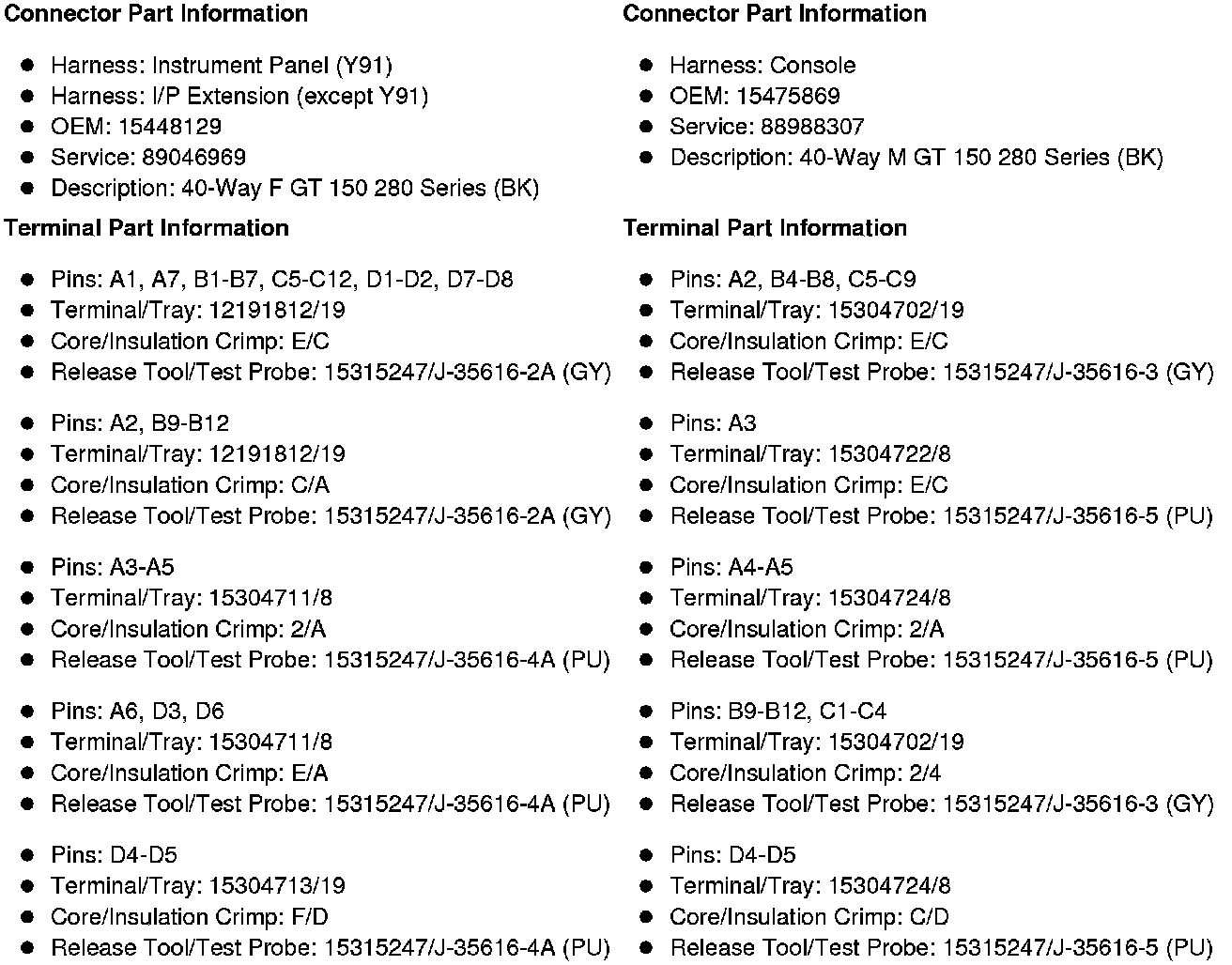

X301 Instrument Panel Harness (Y91) or I/P Extension Harness (except Y91) to Console Harness (Y91, UQA or D07)
